Home / BRP / STERN DRIVE / 1989 / 7.50 / 460AMLMED 1989 / INTAKE MANIFOLD, EXHAUST & COOLING

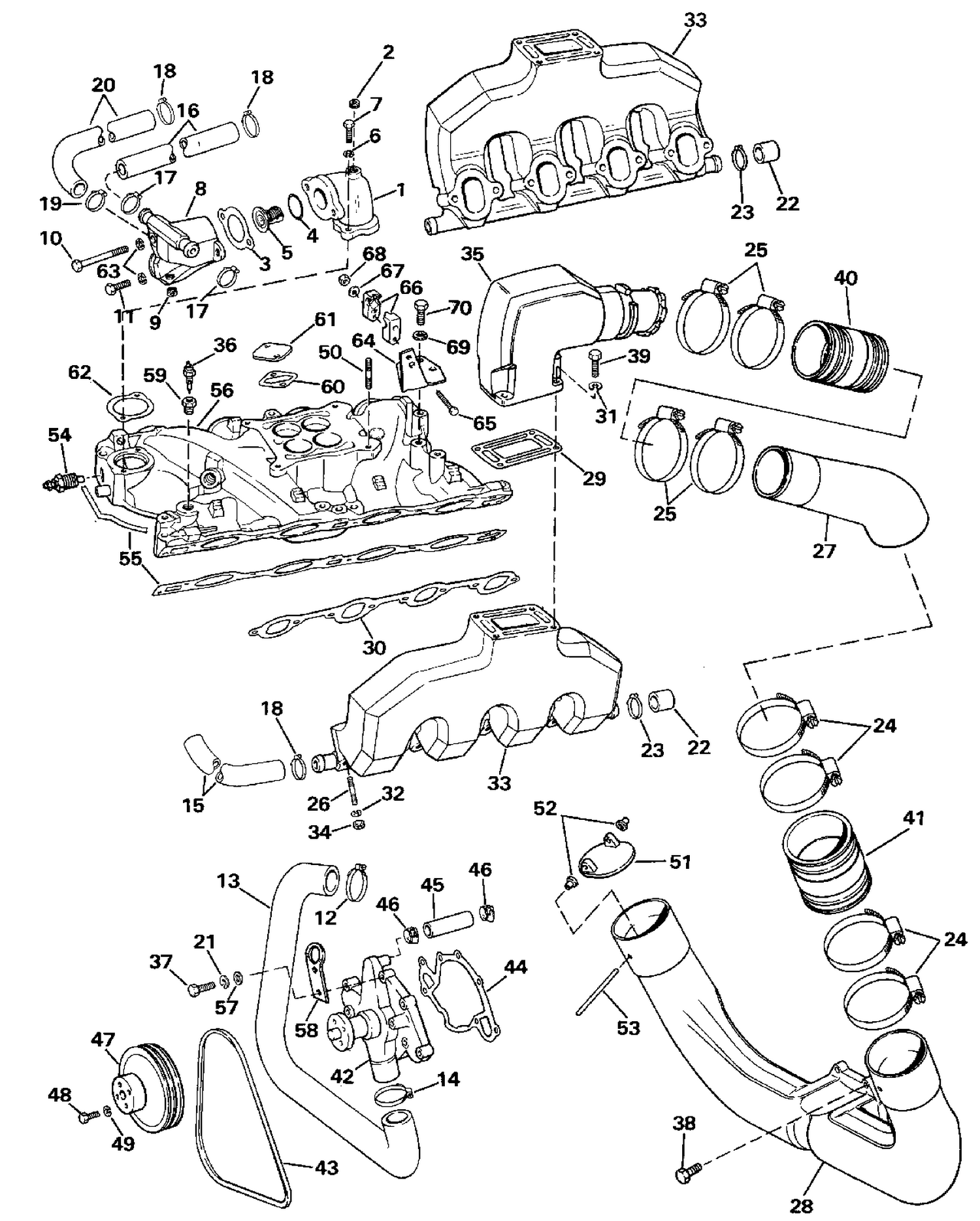

INTAKE MANIFOLD, EXHAUST & COOLING

INTAKE MANIFOLD, EXHAUST & COOLING

Parts (60)

RefPart NumberDescription
1 0985943 ADAPTER, Thermostat hsg
2 3850999 PLUG This part replaces 0913564.
3 0312797 GASKET, Therm. hsg. to adapter
5 0383307 TERMOSTAT ASSEMBLY
7 0302479 VIS, démarreur vers bloc cylindres-carter This part replaces 0306416.
8 3850360 HOUSING, Thermostat This part replaces 0985880.
9 3850999 PLUG This part replaces 0913564.
10 0315340 SCREW, Alternator to bracket
11 0306414 SCREW
13 0912416 HOSE, Therm. hsg. to pump
14 0310894 CLAMP
15 3852597 HOSE, Thermostat to manifold This part replaces 0912420.
16 0914767 HOSE, Therm. hsg. to manifold This part replaces 0911742.
17 0979803 CLAMP
18 0912627 CLAMP
19 0912627 CLAMP
20 0913153 HOSE, Engine oil cooler to thermostat hsg.
20 5000354 Hose & Tag Ay This part replaces 0912424.
22 3852476 CAP, Manifold This part replaces 0909829.
23 0912627 CLAMP
24 3852604 CLAMP, Exhaust This part replaces 0912667.
25 3853860 CLAMP, Exhaust hose, upper This part replaces 0985661.
26 0912444 STUD, Manifold
27 0913593 EXHAUST PIPE, Upper
28 0985751 EXHAUST PIPE
29 0909786 GASKET
30 0912405 GASKET, Manifold to engine
32 0309336 L'WASHER, Alternator to bracket
33 0984681 MANIFOLD, Exhaust
34 0908700 NUT
35 0913584 ELBOW, Exhaust
36 0985618 SWITCH, Water temperature
37 0306424 BOLT, Pump mounting
39 0306435 SCREW, Brace to alternator
40 3852696 HOSE, High rise to elbow This part replaces 0913405.
41 3852742 HOSE, Exhaust pipe This part replaces 0913592.
42 0984889 WATER PUMP
43 0909971 BELT, Alternator
43 0912714 BELT, Power steering
44 0912769 GASKET, Water pump
45 0912770 HOSE, Pump to intake
46 0979803 CLAMP
47 0985023 PULLEY, Water pump
48 0306369 SCREW
51 0985749 EXHAUST SEAL
52 3853566 BUSHING, Pin This part replaces 0913672.
53 0913663 PIN EXHAUST FLAP
54 0171960 SENDER, Water temperature
55 0984890 GASKET SET, Intake
56 0985315 INTAKE MANIFOLD
57 0306453 LOCKWASHER, Fuel pump
58 0311111 LIFT BRACKET
59 0913401 BUSHING, Temperature switch
60 0913654 GASKET
61 0913655 PLATE
62 0912403 GASKET, Adapter to intake
63 0120177 L'WASHER, Alternator to brkt
64 0913495 BRACKET, Throttle anchor
65 0913248 SCREW
66 0913250 ANCHOR BLOCK
