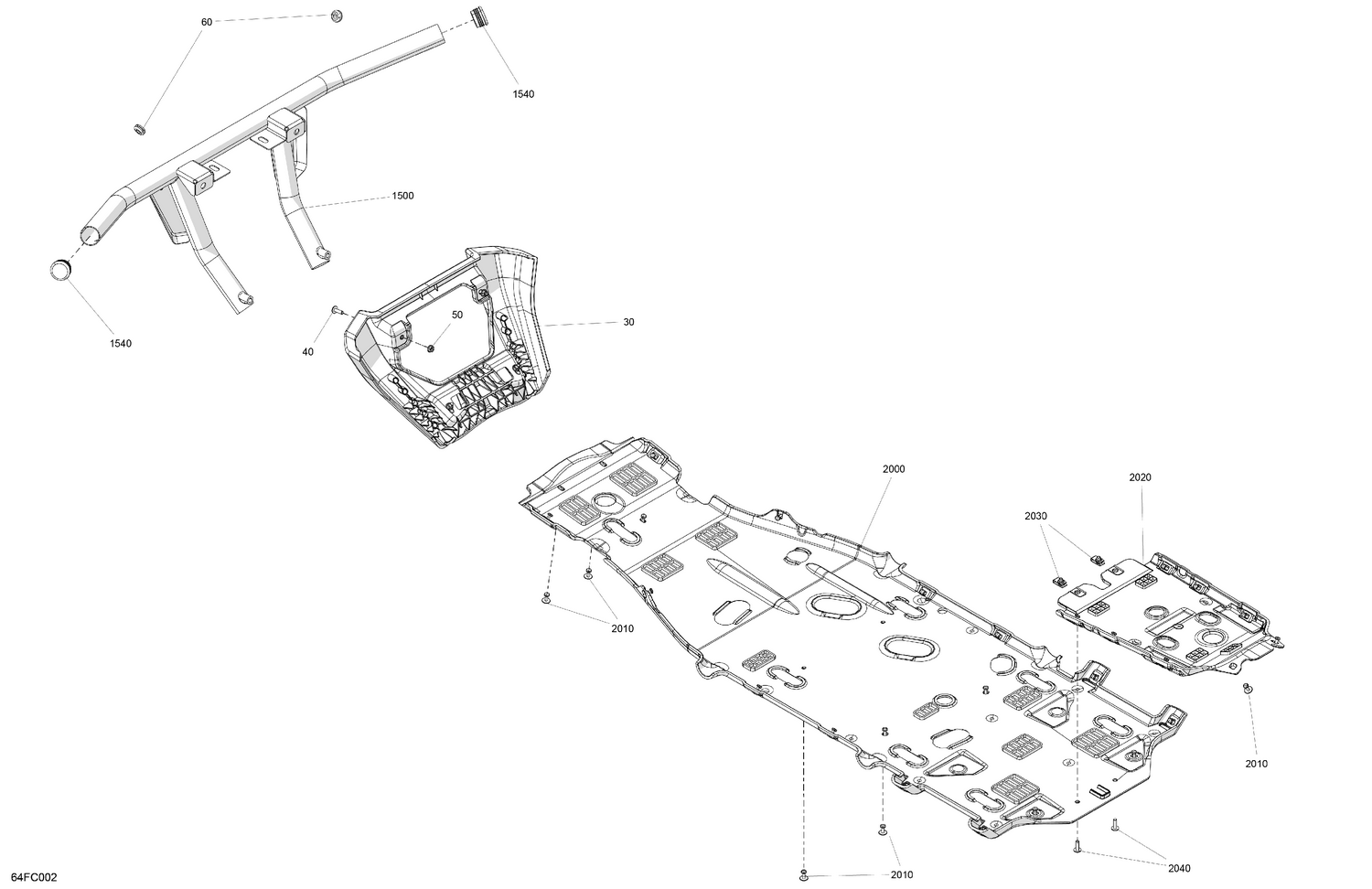

07- Body - Skid Plate and Bumper
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 705014900 | Front Skid Plate |
| 40 | 250001257 | Screw Torx M6 X 20 |
| 50 | 233161414 | Hex. Flange Nut M6 |
| 60 | 709000582 | Grommet |
| 1500 | 705016742 | Deep Black, Front Bumper |
| 1540 | 705202455 | Cap |
| 2000 | 705018716 | Central Skid Plate Long This part replaces 705014890. |
| 2010 | 293150104 | Pop Rivet 3/16" |
| 2020 | 705014893 | Lower Rear Skid Plate |
| 2030 | 250100198 | Panel Nut M6 X 1.0 |
