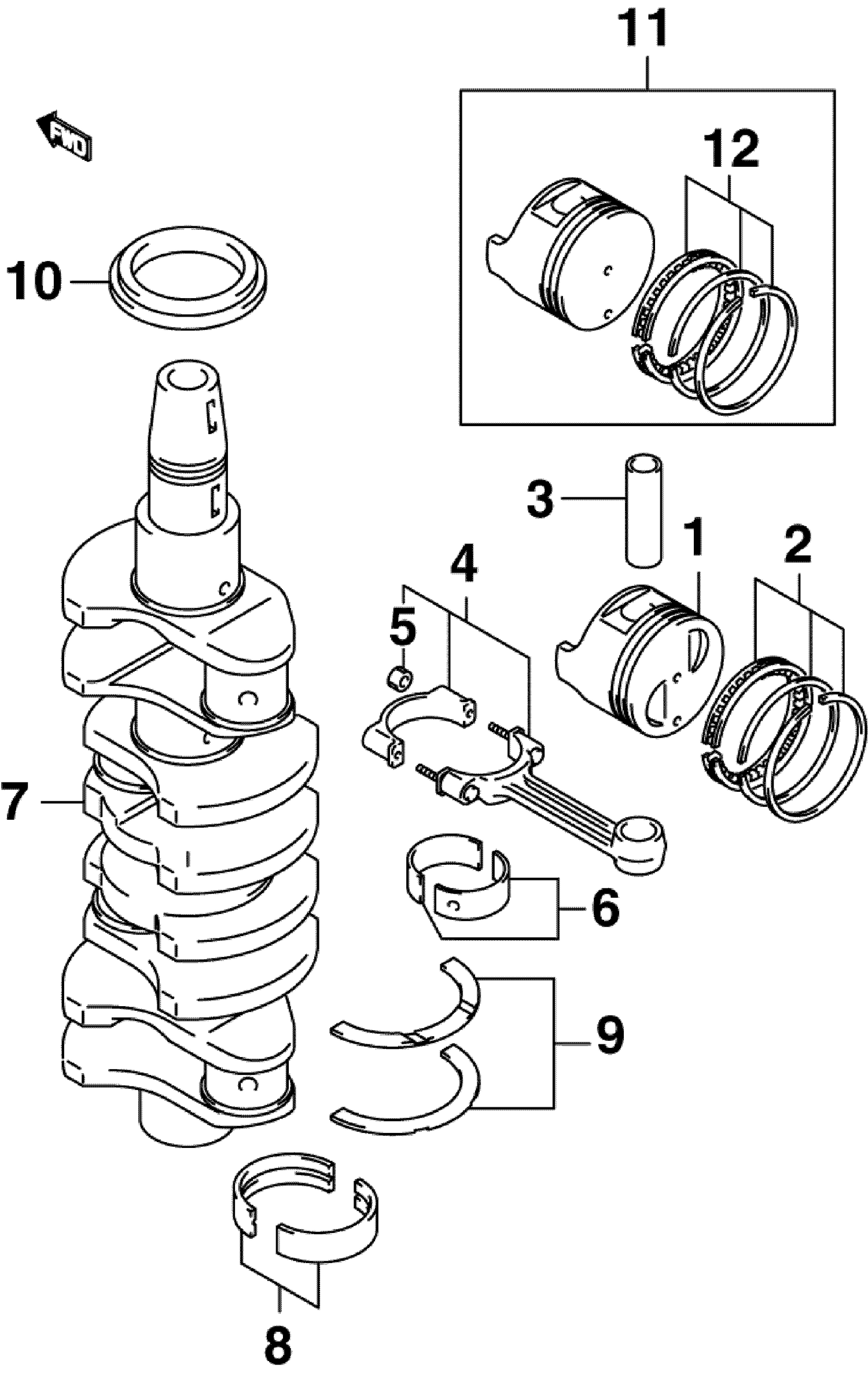

CRANKSHAFT & PISTONS
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030643 | PISTON |
| 2 | 5030644 | RING SET, Piston |
| 3 | 5030645 | PIN, Piston |
| 4 | 5030646 | CONNECTING ROD Assy |
| 6 | 5030642 | BEARING Assy, Rod |
| 7 | 5030647 | CRANKSHAFT |
| 8 | 5030649 | BEARING SET, Main (GREEN) |
| 8 | 5030650 | BEARING SET, Main (BLACK) |
| 8 | 5030651 | BEARING SET, Main (No color) |
| 8 | 5030652 | BEARING SET, Main (YELLOW) |
| 8 | 5030653 | BEARING SET, Main (BLUE) |
| 9 | 5030648 | BEARING SET, Thrust |
| 10 | 5030550 | SEAL, OIL |
