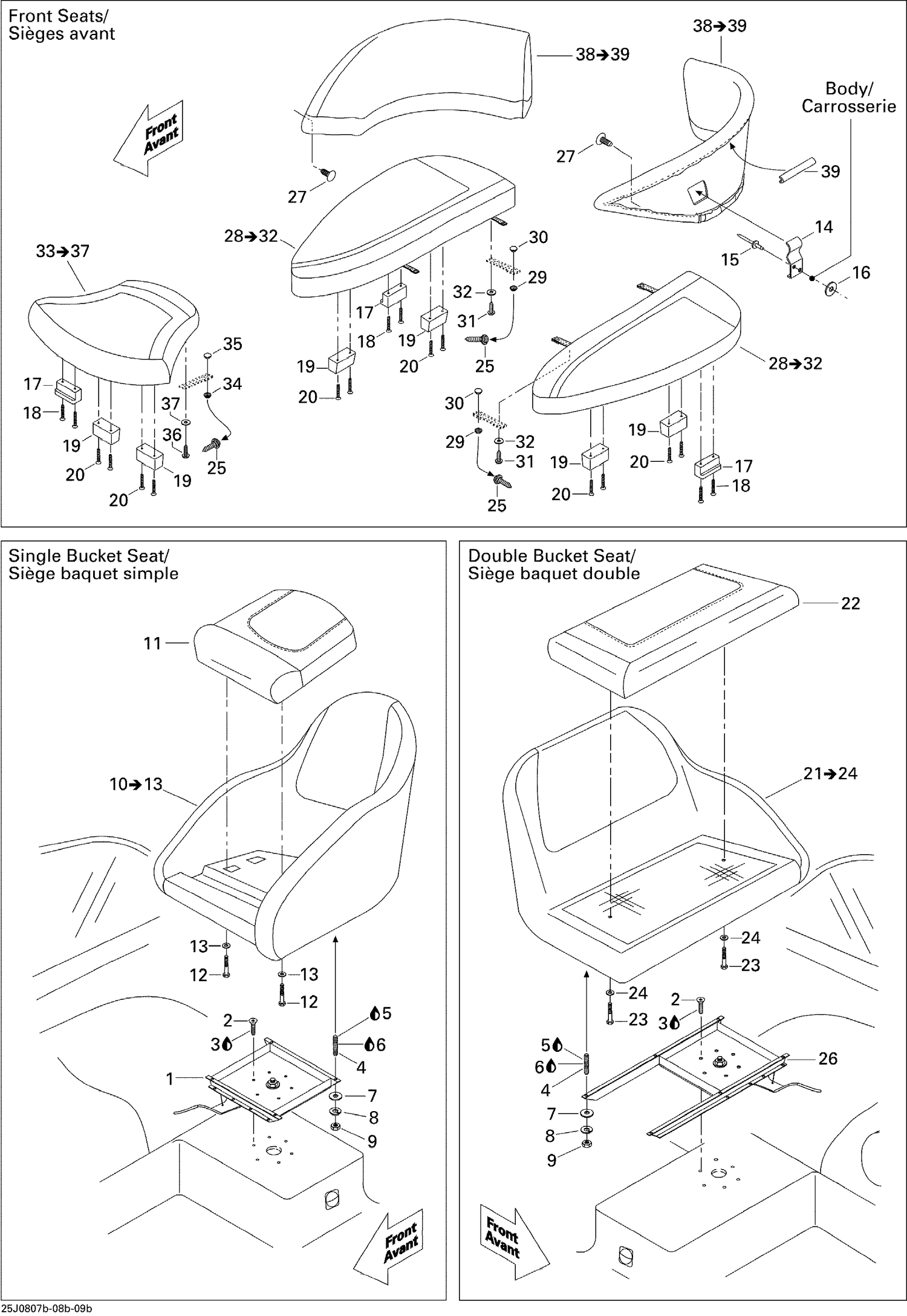

| Ref | Part Number | Description |
|---|
| 1 |
204611789 |
Single Seat Swivel Base |
| 2 |
208463560 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 3 |
293800060 |
Loctite 243, 10 ml |
| 4 |
204100077 |
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 5 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 6 |
293800005 |
Loctite 271, 10 ml |
| 7 |
234062600 |
Flat Washer M6, Stainless |
| 8 |
234161601 |
Lock Washer Helical M6 |
| 9 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 11 |
204612854 |
Bucket Seat Cushion |
| 12 |
204100125 |
Pan Head Phillips Screw 1/4-20 |
| 13 |
234082600 |
Flat Washer 8 mm, Stainless |
| 14 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership |
| 15 |
293150043 |
Pop Rivet 3/16" |
| 16 |
234061600 |
Stainless Flat Washer M6 |
| 17 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 18 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 19 |
204611805 |
LATCH - Call your local BRP dealership |
| 20 |
204100081 |
SCREW #8 X 1-1/4? - Call your local BRP dealership |
| 22 |
204612850 |
Bucket Seat Cushion, Port Side |
| 23 |
204100125 |
Pan Head Phillips Screw 1/4-20 |
| 24 |
234082600 |
Flat Washer 8 mm, Stainless |
| 25 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 26 |
204611749 |
Bucket Seat Swivel Base, Port Side |
| 27 |
293730014 |
Black Dart |
| 29 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 30 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 31 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 32 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 34 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 35 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 36 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 37 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
