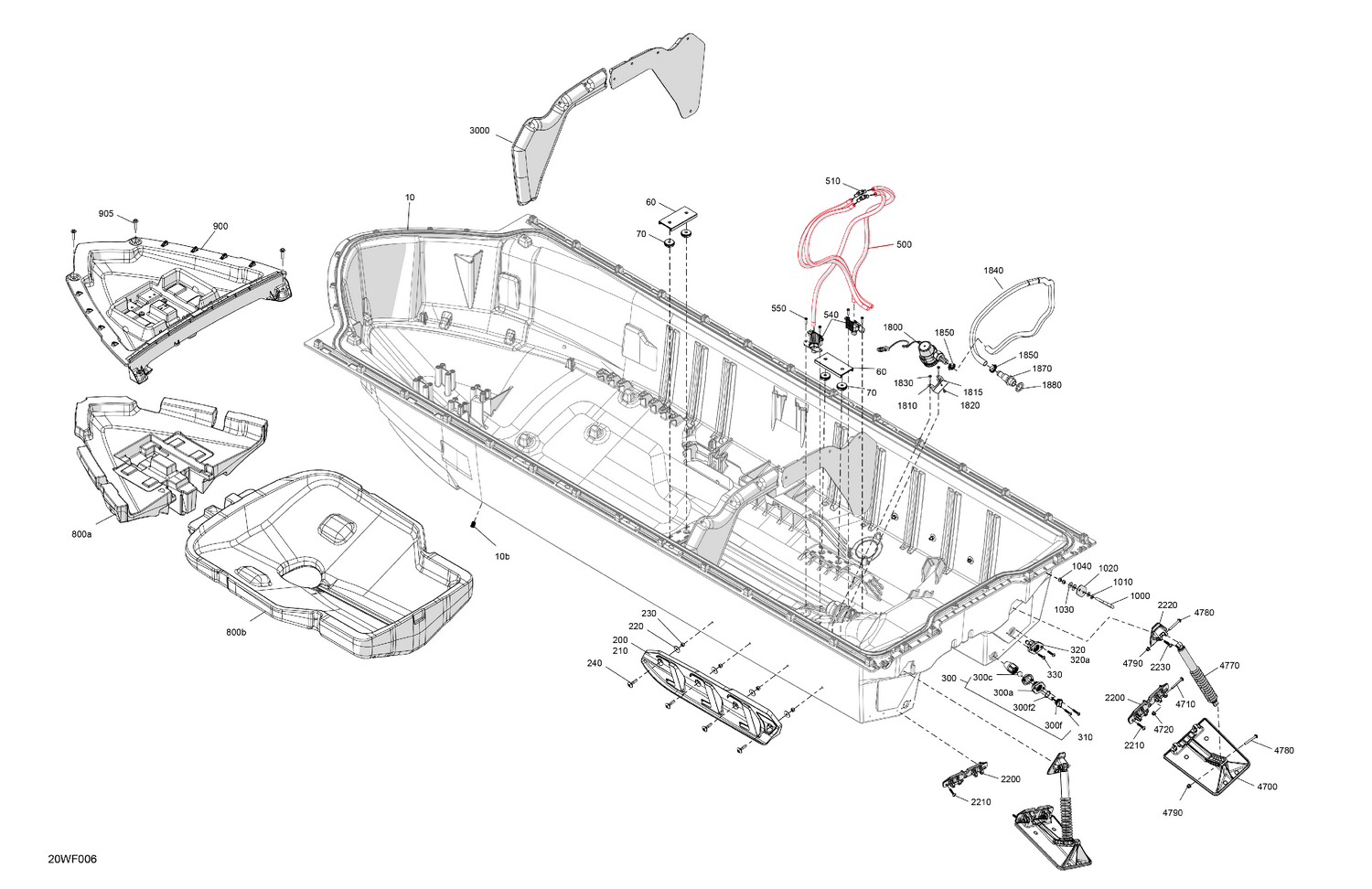

05- HULL - Hull System — Parts Catalog

Parts (46)

Ref	Part Number	Description
10b	292002565	Brass Insert M6X1
60	292002403	Anchorage Support
70	292002521	Formed Slot Nut
200	292001954	LH Sponson
210	292001953	RH Sponson
220	250200175	Flat Washer 8 mm, Stainless
230	232581200	Hex. Elastic Nut M8 Brass
240	250001276	Torx-Head Screw M8 X 35
300a	292002765	Through Hull Fitting
300c	293830080	Floating Ball
300f2	293300067	O-Ring
310	250000879	Plastite Torx Screw M6.81X30
320a	292002765	Through Hull Fitting
330	250000879	Plastite Torx Screw M6.81X30
500	292002962	Hose 11,6 Mm Id X 800
510	293710152	Fitting Elbow 90°
540	269800956	Pump Support
550	211000023	Hex. Screw 10-14 X 7/8”
800a	292002336	Lower Front Float
800b	292002337	Fuel Tank Float
900	292002414	Luggage Compartment Bottom
905	250000399	Hexagonal Cap Screw M6 X35
1000	292000933	U-Clamp
1010	293050001	Flat Washer M8.5 x 18
1020	292002612	Retaining Plate
1030	279000336	Flat Washer
1040	232581200	Hex. Elastic Nut M8 Brass
1800	278004010	Bilge Pump
1810	269801210	Bilge Pump Support
1815	234052600	Flat Washer 5 mm, Stainless
1820	293150043	Pop Rivet 3/16"
1830	211000023	Hex. Screw 10-14 X 7/8”
1840	292003274	Hose 19 Mm Id X 1630
1850	293650019	Tridon Gear Clamp This part replaces 293650290.
1870	293710162	Fitting
1880	292001486	Gasket
2200	292002406	Trim Tab Anchor
2210	250000879	Plastite Torx Screw M6.81X30
2220	292002389	Shock Absorber Anchorage
2230	250000879	Plastite Torx Screw M6.81X30
3000	292002611	Acoustic Insulation Panel
4700	292002388	Tab Trim
4710	250000827	Torx Screw Truss Cone HD.M6X50
4720	233261200	Nut Flange Elastic M6
4770	269502530	Shock Absorber Ass'y
4780	250000827	Torx Screw Truss Cone HD.M6X50
