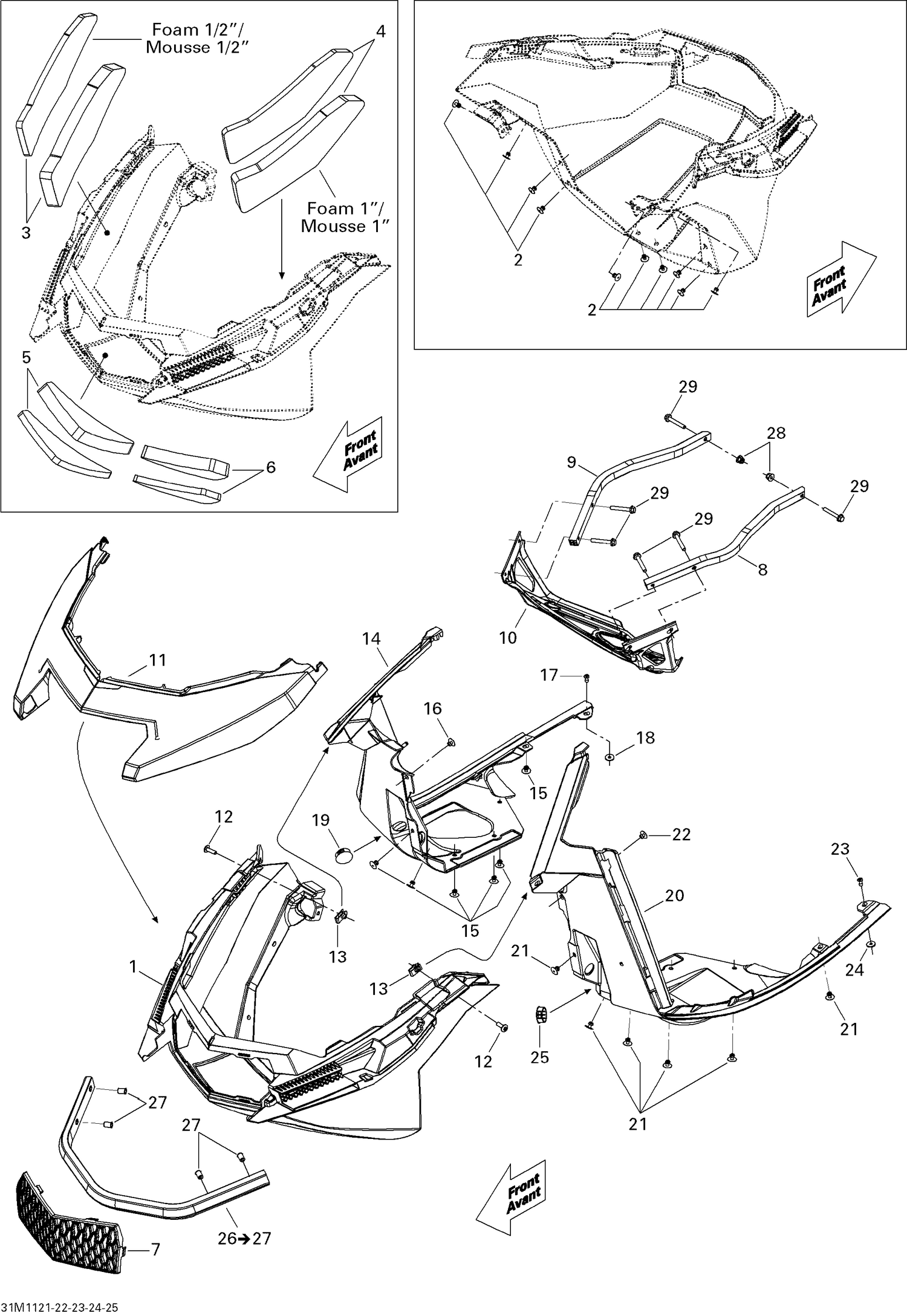

09- Bottom Pan
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502006873 | Deep Black Front Bottom Pan |
| 2 | 293150104 | Pop Rivet 3/16" |
| 3 | 502007217 | RH UPPER HULL FOAM - Call your local BRP dealership |
| 4 | 502007219 | LH UPPER HULL FOAM - Call your local BRP dealership |
| 5 | 502007220 | RH MIDDLE HULL FOAM - Call your local BRP dealership |
| 6 | 502007223 | LH MIDDLE HULL FOAM - Call your local BRP dealership |
| 7 | 502006887 | Botton Pan Grille |
| 8 | 502007357 | LH Support This part replaces 502006925. |
| 9 | 502006926 | RH Support |
| 10 | 502006938 | Bracket |
| 12 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 13 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 14 | 502006877 | RH BOTTOM PAN - Call your local BRP dealership |
| 15 | 293150104 | Pop Rivet 3/16" |
| 16 | 293150103 | Pop Rivet 3/16" |
| 18 | 517124300 | Washer |
| 19 | 414916600 | Black, Nylon Cap |
| 20 | 502006878 | LH BOTTOM PAN - Call your local BRP dealership |
| 21 | 293150104 | Pop Rivet 3/16" |
| 22 | 293150103 | Pop Rivet 3/16" |
| 24 | 517124300 | Washer |
| 25 | 414916600 | Black, Nylon Cap |
| 27 | 293450275 | Insert This part replaces 415107300. |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
