08- Rear Suspension

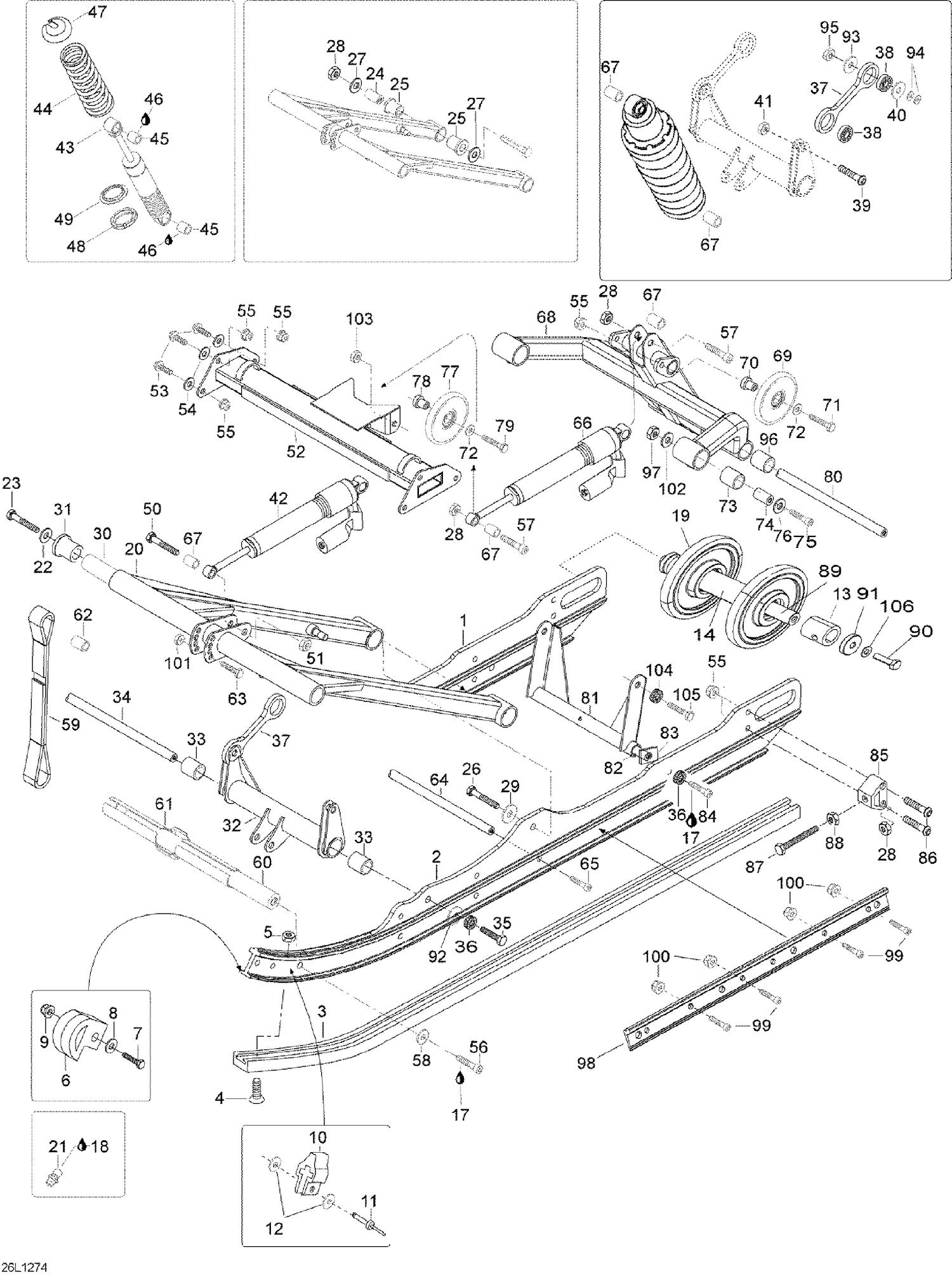

08- Rear Suspension

Parts (105)

RefPart NumberDescription
1 503192020 R.H. Runner
2 503192020 L.H. Runner
3 503192618 Slider 154
4 208562531 Phillips Screw M6 X 25
5 232561434 Elastic Stop Nut M6
6 503192299 Runner Protector
7 207652544 Hex. Flange Screw M5 X 25
8 Not Available As Spare Part - Washer A6,4
9 233251434 Flanged Elastic Nut M5 This part replaces 233251414.
10 503192106 Rubber Stopper
11 293150142 Pop Rivet 3/16"
12 503191273 Washer
13 5441512 Sleeve
14 5448027 Sleeve
17 293800005 Loctite 271, 10 ml
18 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
19 503194127 Wheel 165mm This part replaces 503189568.
20 503192557 Front Arm
21 408200700 Grease Fitting
22 250200005 Conical Spring Washer M12
23 207026044 HEX. SCREW M12 X 60 - Call your local BRP dealership
24 503192879 Shaft
25 31065 Cushion
26 250000520 Hex. Screw M10 x 70
27 605355801 Washer
28 232500416 Elastic Stop Nut M10
29 503183300 Washer
30 503192183 Shaft
31 503192184 Cushion
32 503192518 Front Arm weld
33 31024 Cushion
34 503192880 Shaft
35 205005547 Screw M10 x 55
36 20068 Lock washer D10
37 605254159 Link plate
38 605631003 Ball bearing
39 205402546 Socket Screw BN.HD.ISO.7380
40 234002600 Flat Washer 10 mm, Stainless
41 232500416 Elastic Stop Nut M10
42 Not Available As Spare Part - Shock ass'y, front arm
43 619330003 Shock, front arm (cal.503193134)
43 619330005 Shock, rear arm (cal. 503193136)
44 503192355 Spring, front arm
44 503192356 Spring, rear arm
45 31094 Cushion
46 32161 Loctite 641, 50ml
47 605354631 Spring stopper
48 230048 Cam
49 230049 Spring guide
50 207004544 Hex. Screw M10 X 45
51 232500416 Elastic Stop Nut M10
52 503192566 Middle beam
53 207182544 Hex. Screw M8 X 25
54 605620002 Washer A8,4
55 233281414 Hex. Flange Elastic Nut M8
56 205505044 Socket head screw M10 x 50
57 40134 Screw Socket HD.DIN 912
58 234001410 Flat Washer 10 mm
59 605355116 Stopper strap
60 605353958 Shaft
61 605355096 Limiter
62 605455335 Sleeve
63 207084544 Hex. Screw M8 X 45
64 5343471 Shaft
65 205505547 Socket head screw M10 x 55
66 Not Available As Spare Part - Shock ass'y, rear arm
67 5446652 Bushing
68 503192524 Rear arm
69 503192675 Idler wheel 133/black
70 605454461 Sleeve
71 207084544 Hex. Screw M8 X 45
72 20077 M8 Washer
73 31065 Upper Cushion rear arm
74 503192879 Shaft
75 205006544 Socket head screw
76 234002410 Flat Washer 10 mm
77 572043500 Idler Wheel
78 605454167 Sleeve
79 207083544 Hex. Screw M8 X 35
80 503192881 Shaft
81 605353953 Rear arm
82 605355119 Shaft
83 503192045 Support plate
84 205505547 Socket head screw M10 x 55
85 5341633 Tensioner
86 205484546 Socket Head Screw M8 X 45
87 230100044 HEX. SCREW M10 X 100 - Call your local BRP dealership
88 232006414 Hex. Nut M10
89 503192734 Shaft
90 207303544 Hex. Screw M10 x 35 (Scotch Grip)
91 503192735 Rear Axle Washer
92 512056700 Lock Washer
93 25004 Cup Spring
94 234001410 Flat Washer 10 mm
95 233401414 Lock Spring Nut M10
96 31024 Lower Cushion rear arm
97 232500416 Elastic Stop Nut M10
98 503192891 Rail Reinforcement
99 205082544 Socket Head Screw M8 X 25
100 232581414 Hex. Elastic Stop Nut M8
101 232581414 Hex. Elastic Stop Nut M8
102 605355801 Washer
103 232581414 Hex. Elastic Stop Nut M8
104 234001410 Flat Washer 10 mm
105 207204044 Hex Cap Screw Din.931 S.grip
