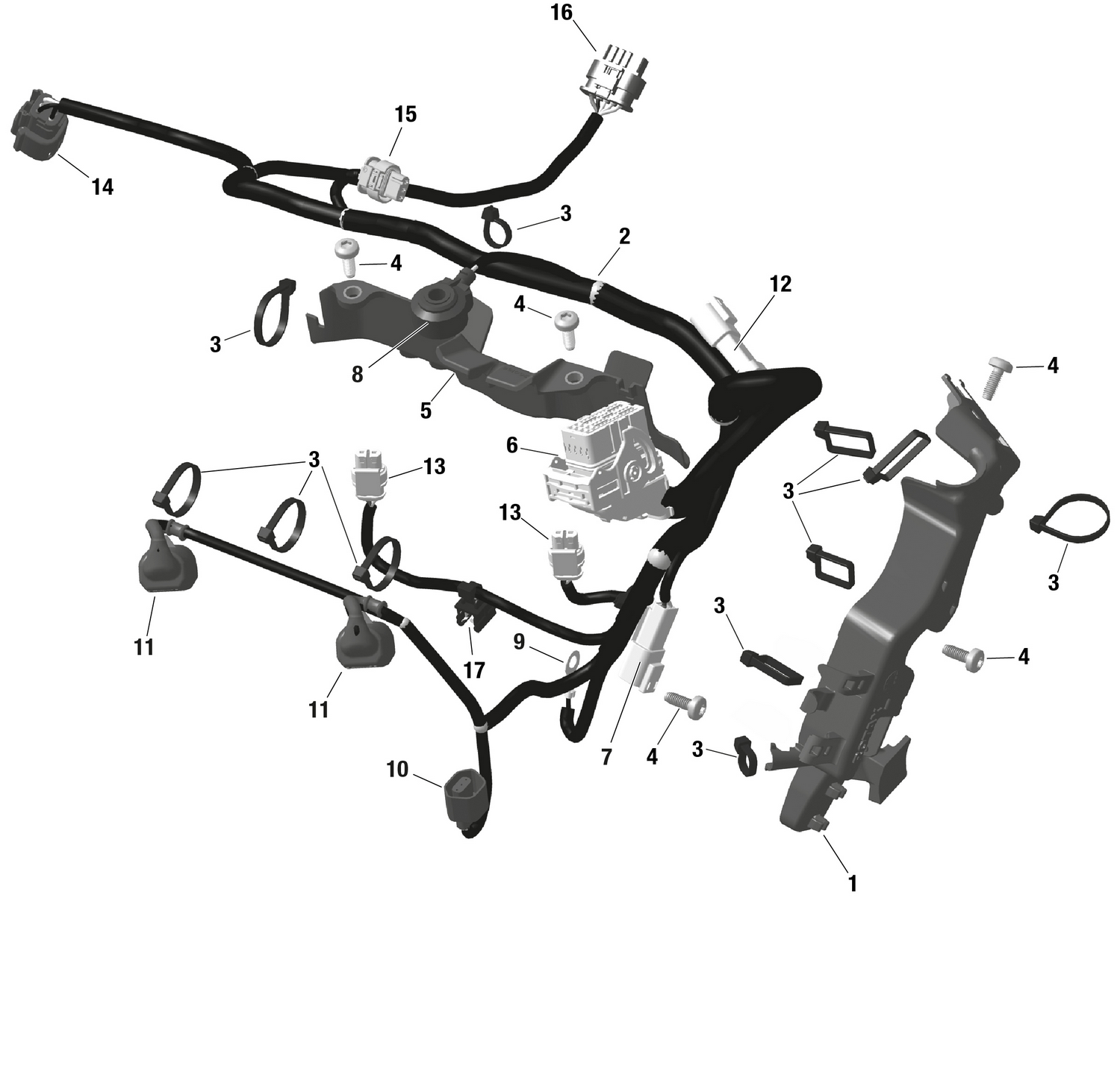

01- ROTAX - Engine Harness And Electronic Module
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420260169 | Harness Support |
| 2 | 420864552 | Wiring Harness Ass'y |
| 3 | 420651817 | Locking Tie 175 X 4 MM |
| 4 | 420640325 | Torx Screw M6 X 16 |
| 5 | 420260166 | Harness Support |
| 6 | 515177192 | Female Housing, 2 Circuits |
| 7 | 409206900 | Male Housing, 2 Circuits |
| 8 | 278001005 | Female Housing, 2 Circuits |
| 9 | 515175504 | Terminal Open Barrel |
| 10 | 415130195 | Connector |
| 11 | 710005857 | Connector USB wih Cable |
| 12 | 409206900 | Male Housing, 2 Circuits |
| 13 | 409209500 | Female Housing, 2 Circuits |
| 14 | 515178202 | Connector Coil |
| 15 | 710007787 | Female Connector 3 Circuits |
| 16 | 710007787 | Female Connector 3 Circuits |
