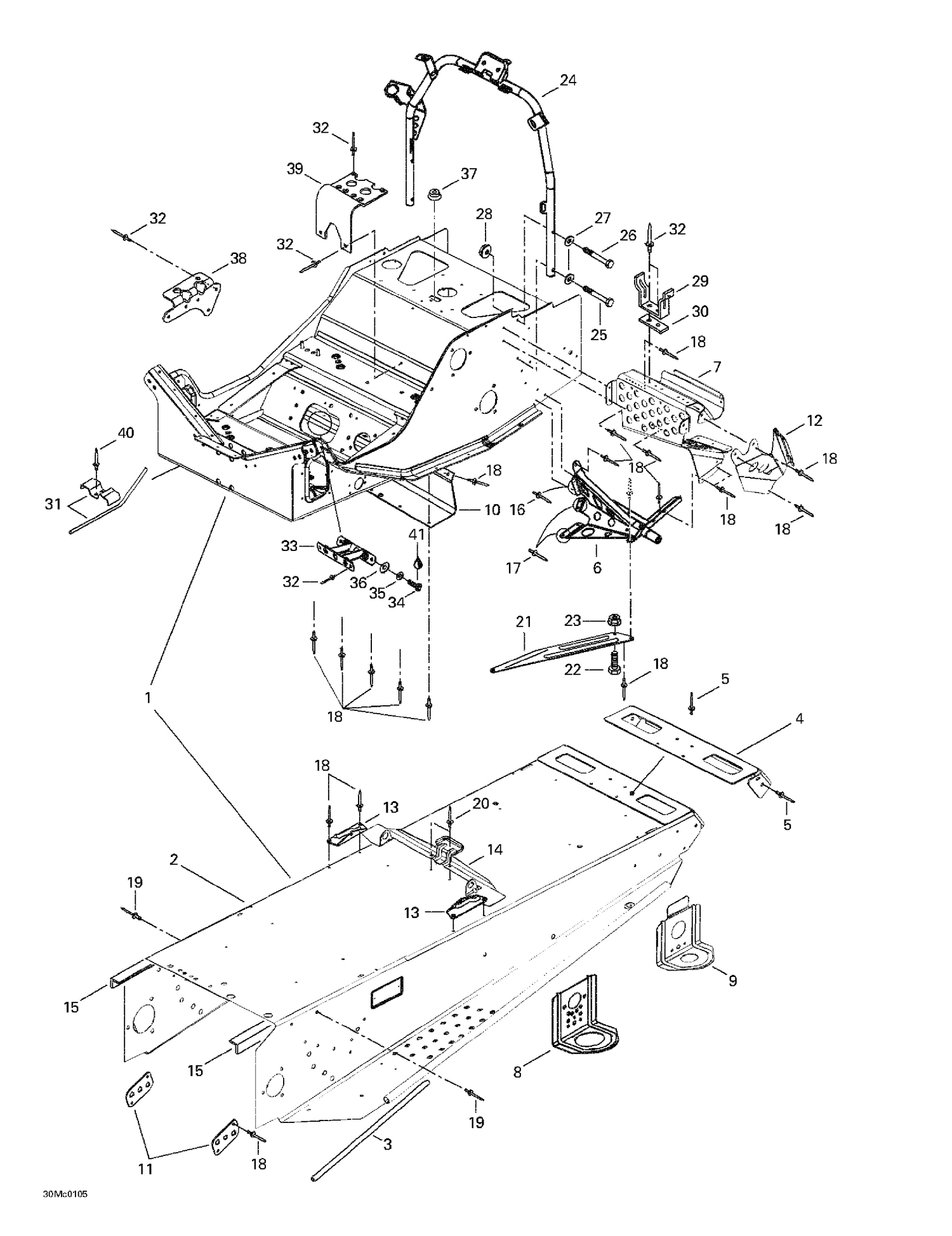

09- Frame And Accessories

Parts (44)

Ref	Part Number	Description
3	518304746	FOOTREST REINFORCEMENT - Call your local BRP dealership
4	518321301	Cap-End
5	390402200	Pop Rivet 3/16"
6	518320507	LH SOOTREST SUPPORT - Call your local BRP dealership
7	518318933	RH Front Footrest
8	518321495	Front Bracket
9	518308704	Rear Bracket
10	518321867	Deflector
11	518201321	REINFORCEMENT PLATE - Call your local BRP dealership
12	518308714	Upper Plate L.H
13	517266900	RH Tank Bracket
14	518317506	Seat Bracket
15	518316713	LH Tunnel Reinforcement
16	390909200	Avex Rivet
17	390909100	Avex Rivet
18	390402200	Pop Rivet 3/16"
19	390402300	Pop Rivet 3/16"
20	390402400	Pop Rivet 3/16"
21	518321958	RH Reinforcement Plate
22	207151644	Hex. Screw M5 X 16
23	233251434	Flange Elastic Nut M5 This part replaces 233251414.
24	518321428	Handle Steering Support
25	207064044	Hex. Screw M6 X 40
26	207063544	Hex. Flange Screw M6 X 35
27	234061410	Flat Washer 6 mm
28	233261414	Hex. Flange Elastic Nut M6 x 1.0
29	518202100	Belt Guard Bracket
30	518207500	REINFORCEMENT - Call your local BRP dealership
31	517276100	Guide Rope
32	390402200	Pop Rivet 3/16"
33	518304741	Reinf. Plate
34	207182044	Hex. Screw M8 X 20
35	234181401	Lock Washer 8 mm
36	224081201	FLAT WASHER - Call your local BRP dealership
39	518310400	AIR INTAKE SUPPORT - Call your local BRP dealership
40	390909200	Avex Rivet
517267000	LH	Tank Bracket 517267000
518308715	Upper	Plate R.H 518308715
518316714	RH	Tunnel Reinforcement 518316714
518318934	LH	Front Footrest 518318934
518318934	Repose-Pied	Avant GA 518318934
518320506	RH	Footrest Support 518320506
518320506	Support	Repose-Pied DR 518320506
518321959	LH	Reinforcement. Plate 518321959
