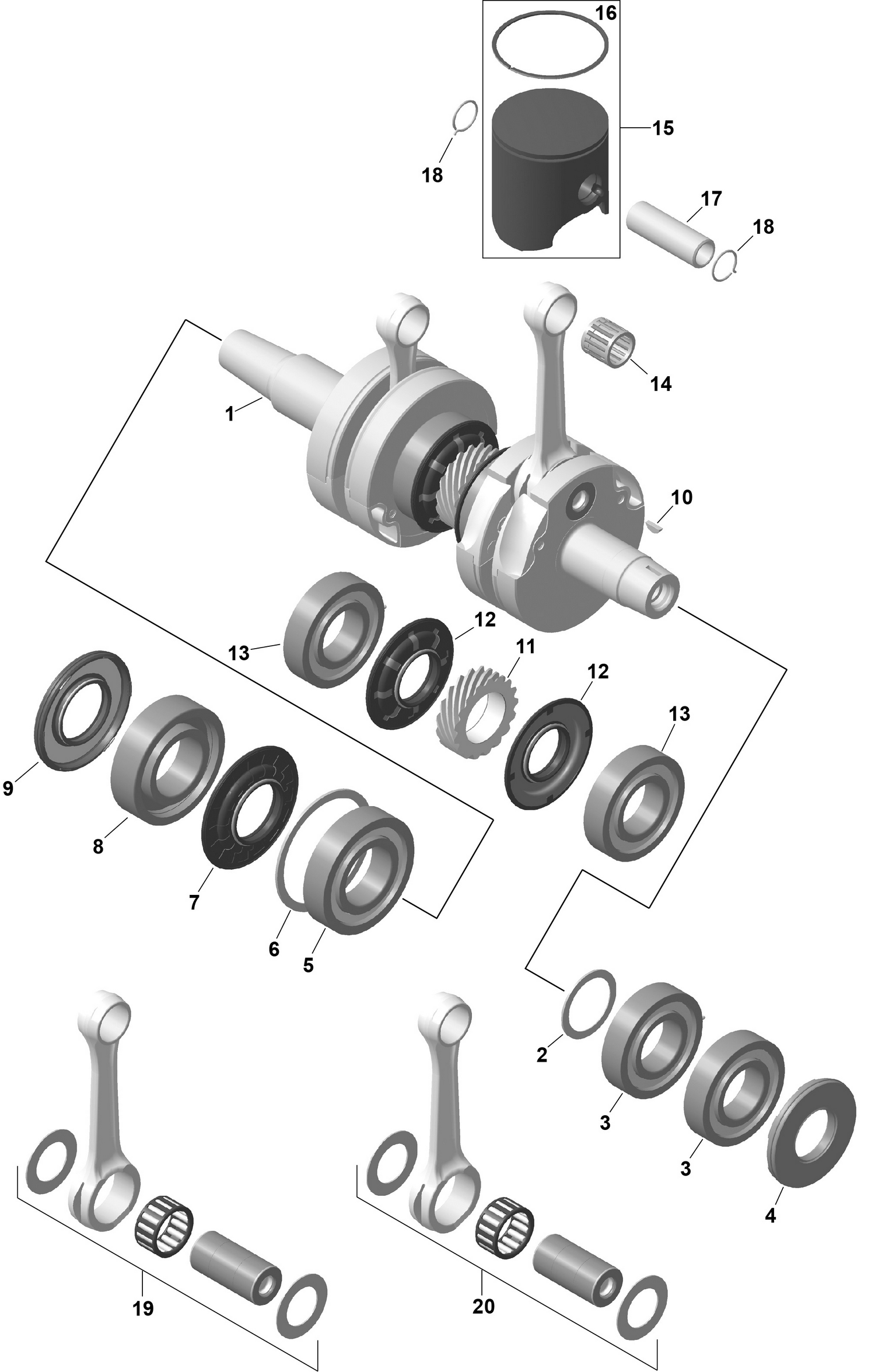

01- ROTAX - Crankshaft and Pistons
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420827767 | Shim |
| 3 | 420832575 | Ball Bearing 6207 |
| 5 | 420832600 | Ball Bearing 6208 |
| 6 | 420926190 | Washer |
| 7 | 420931910 | Oil Seal |
| 8 | 420832671 | Ball Bearing This part replaces 420832603. |
| 9 | 420246015 | Woodruff Key |
| 10 | 420834565 | CENTRAL GEAR - Call your local BRP dealership |
| 11 | 420931455 | Oil Seal |
| 12 | 420832575 | Ball Bearing 6207 |
| 14 | 420832445 | Needle Bearing |
| 16 | 420815470 | Semi Trapez Ring |
| 17 | 420916413 | Piston Pin |
| 19 | 420891637 | ENS.TIGE REP. *KIT-ROD REPAIR - Call your local BRP dealership |
