Parts Catalog

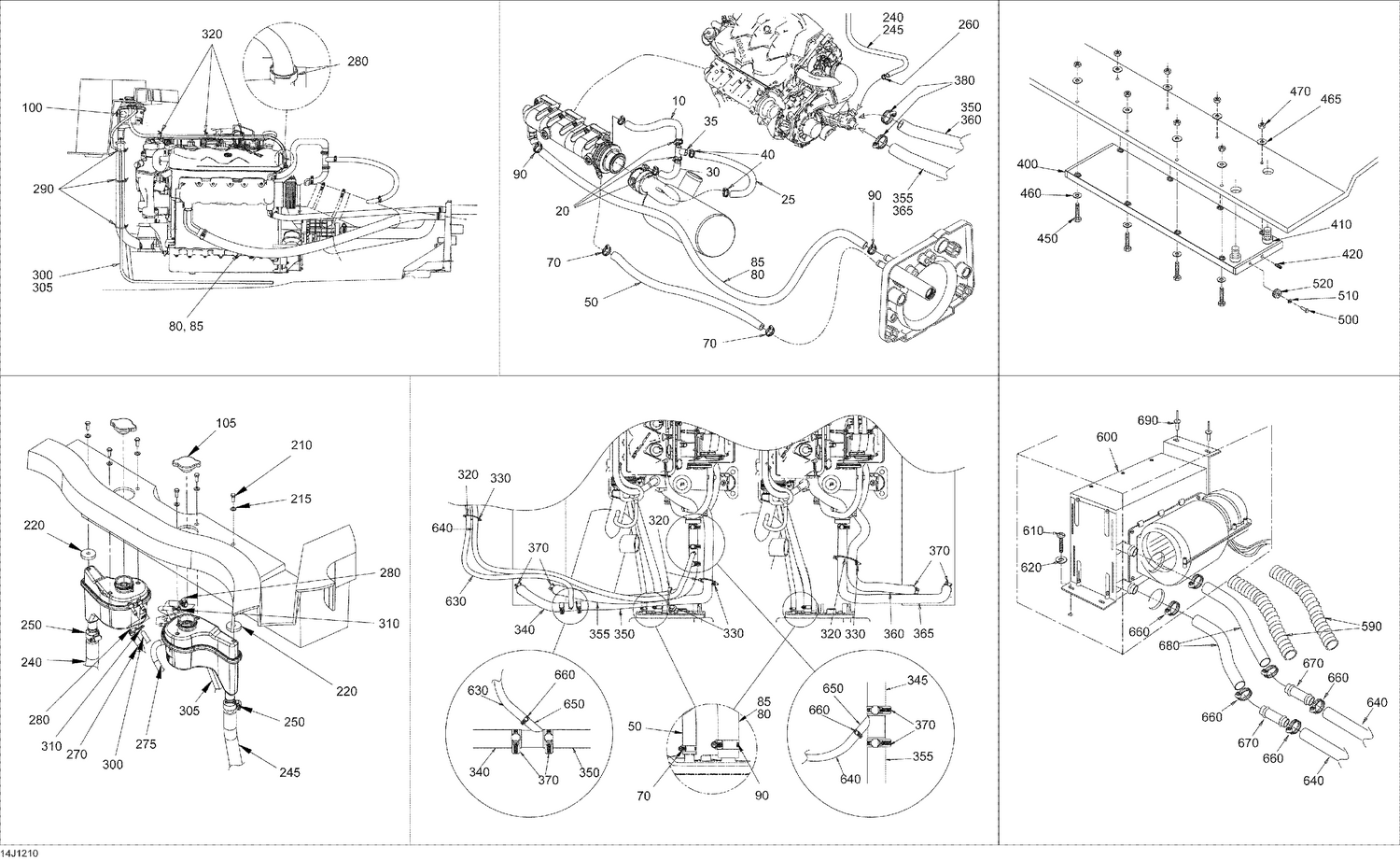

01- Cooling System

Parts (40)

Ref	Part Number	Description
10	276000484	Hose, Bypass Upper This part replaces 276000244.
20	293650172	Tridon Gear Clamp
25	276000246	Formed Hose
30	276000455	Hose, Bypass Lower This part replaces 276000245.
35	293710116	T-Fitting
40	293650171	Tridon Gear Clamp
50	219704394	Was 276000001 Hose 12.5 mm
70	293650172	Tridon Gear Clamp
80	219704361	Hose 19.0Mm. 2000Mm Long
85	219704361	Hose 19.0Mm. 2000Mm Long
90	293650051	Tridon Gear Clamp
100	276000265	Coolant Tank
105	276000100	Pressure Cap
210	205062560	Socket Head Screw M6 X 25
215	234062600	Flat Washer M6, Stainless
220	705202084	SPACER - Call your local BRP dealership
240	219704361	Hose 19.0Mm. 2000Mm Long
245	219704361	Hose 19.0Mm. 2000Mm Long
250	293650051	Tridon Gear Clamp
260	293650019	Tridon Gear Clamp
270	219704357	Was 275500549 Hose 1/4"
275	219704357	Was 275500549 Hose 1/4"
280	293650025	Oetiker Gear Clamp
290	293750002	Tie Wrap 142 mm
300	219704410	Polyurethane Hose 10000Mm Long
305	219704410	Polyurethane Hose 10000Mm Long
310	293750001	Tie Wrap 94 mm
360	204061380	RUBBER HOSE, PORT - Call your local BRP dealership
365	204061380	RUBBER HOSE, PORT - Call your local BRP dealership
380	293650045	Tridon Gear Clamp
400	276000299	HEAT EXCHANGER - Call your local BRP dealership
410	204300133	Hose Fitting - Call your local BRP dealership
420	211500001	Pipe Plug Socket Head 1/8-27 Npt
450	205405060	SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
460	234000600	Flat Washer 10 mm, Stainless
465	234002600	Flat Washer 10 mm, Stainless
470	232001600	HEX. NUT M10 - Call your local BRP dealership
500	207362060	Hex. Screw M6 X 20, Scotch Grip
510	234061600	Stainless Flat Washer M6
520	271001813	Anode Zinc
