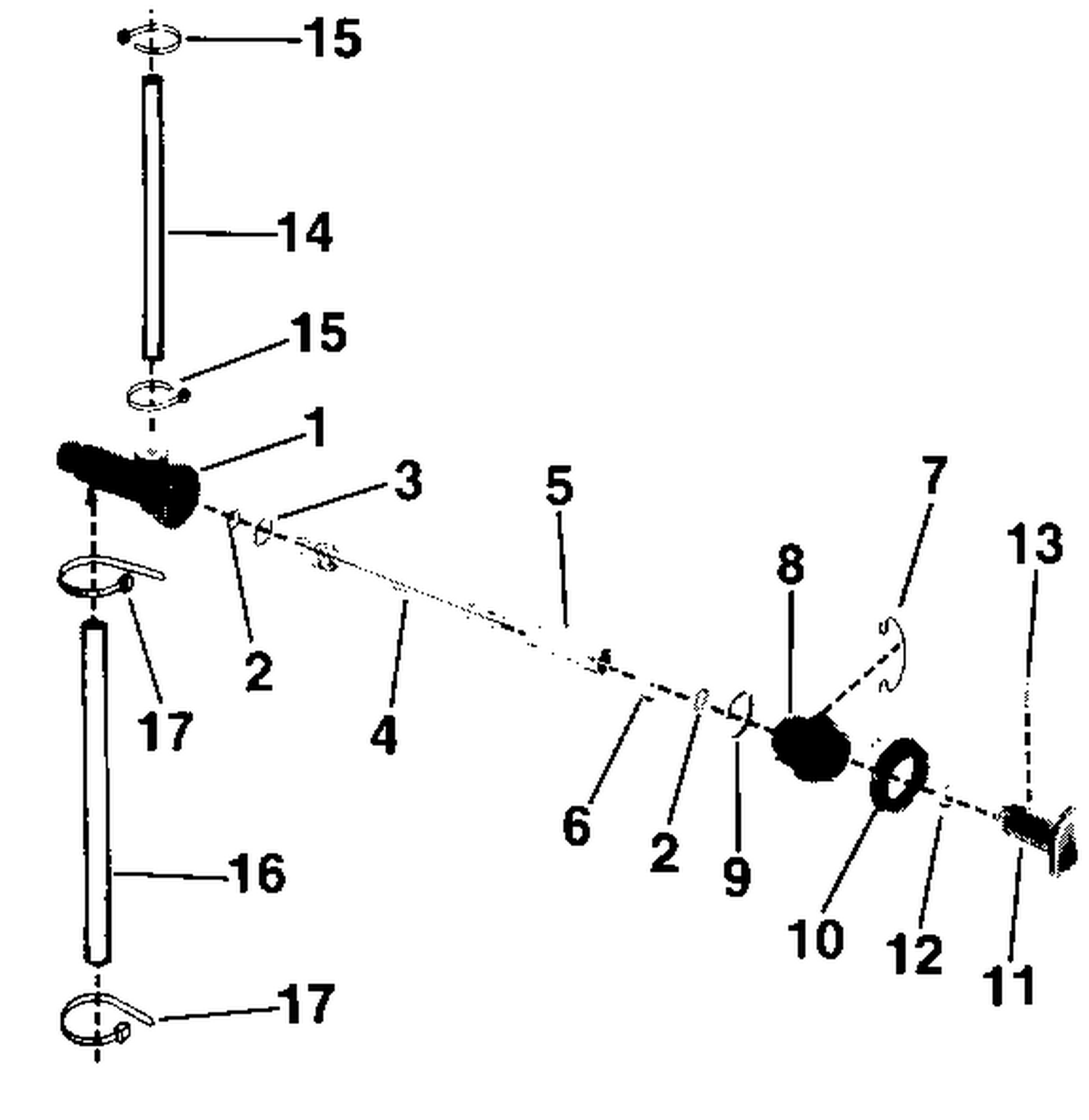

PRIMER PUMP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0396929 | PLUNGER & VALVE ASSEMBLY |
| 5 | 0333541 | SPRING |
| 8 | 0398868 | END CAP This part replaces 0328805. |
| 10 | 0329670 | NUT |
| 11 | 0395781 | KNOB & DETENT ASSY This part replaces 0398792. |
| 12 | 0330992 | JOINT TORIQUE, bouton |
| 13 | 0329054 | SCREW |
| 14 | 0772568 | FLEXIBLE, solénoïde d'amorçage vers raccord amorçage tribord, 14" (356 mm) This part replaces 0327229. |
| 16 | 0331227 | HOSE, Float bowl to primer pump |
| 0396386 | 0398816 | PRIMER PUMP ASSEMBLY This part replaces 0396386. |
