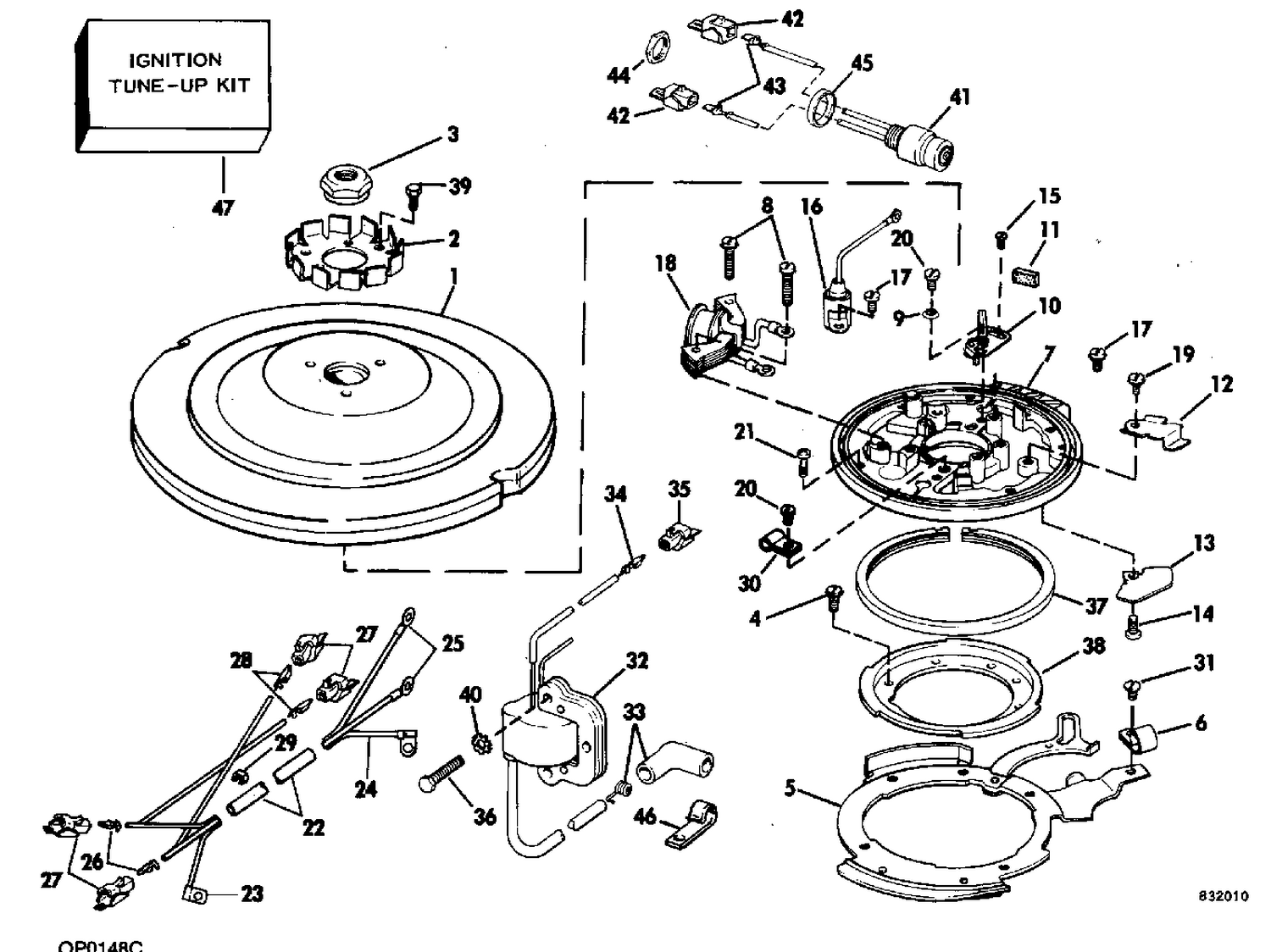

MAGNETO-RS AND RW MODELS ONLY
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0582615 | FLYWHEEL ASSY. |
| 2 | 0202111 | RATCHET |
| 3 | 0326111 | NUT This part replaces 0308457. |
| 4 | 0305230 | SCREW |
| 5 | 0392290 | RETAINER,Cam & link assy |
| 6 | 0316669 | CLAMP This part replaces 0319473. |
| 7 | 0582067 | ARMATURE PLATE |
| 8 | 0510397 | SCREW |
| 9 | 0510208 | BOW WASHER |
| 10 | 0581207 | BREAKER ASSY |
| 12 | 0318954 | CLAMP, Ignition coil |
| 13 | 0318909 | COVER |
| 15 | 0510194 | SCREW |
| 16 | 0581419 | CONDENSER |
| 18 | 0581202 | COIL & LAMINATION |
| 21 | 0511195 | SCREW |
| 22 | 0320288 | TUBING LEADS |
| 23 | 0511286 | TERMINAL, Ground lead |
| 24 | 0581320 | LEAD ASSY.,Ground |
| 25 | 0510426 | RING TERMINAL |
| 29 | 0511071 | CLIP |
| 30 | 0314200 | CLAMP |
| 32 | 0581786 | IGNITION COIL ASSY. |
| 36 | 0909533 | SCREW, Pressure relief valve cover This part replaces 0309646. |
| 37 | 0322435 | ROULEMENT, plaque d'allumage vers support |
| 38 | 0322102 | PLATE, Support |
| 39 | 0308072 | SCREW |
| 41 | 0379638 | SHORTENING SWITCH ASSY |
| 44 | 0313779 | NUT, Shorting switch |
| 46 | 0310441 | CLAMP, CPS lead This part replaces 0310493. |
| 0581840 | 0581840 | ARMATURE PLATE ASSY. |
| 0582488 | 0582488 | LEAD ASSY. |
