Home / BRP / Can-Am 3-Wheel Vehicles / 2014 / Spyder / Spyder RT SM6, 2014 000A3EB00 000A3ED00 000A3EE00 000A3EF00 000A3EG00 / 01- Valve Cover

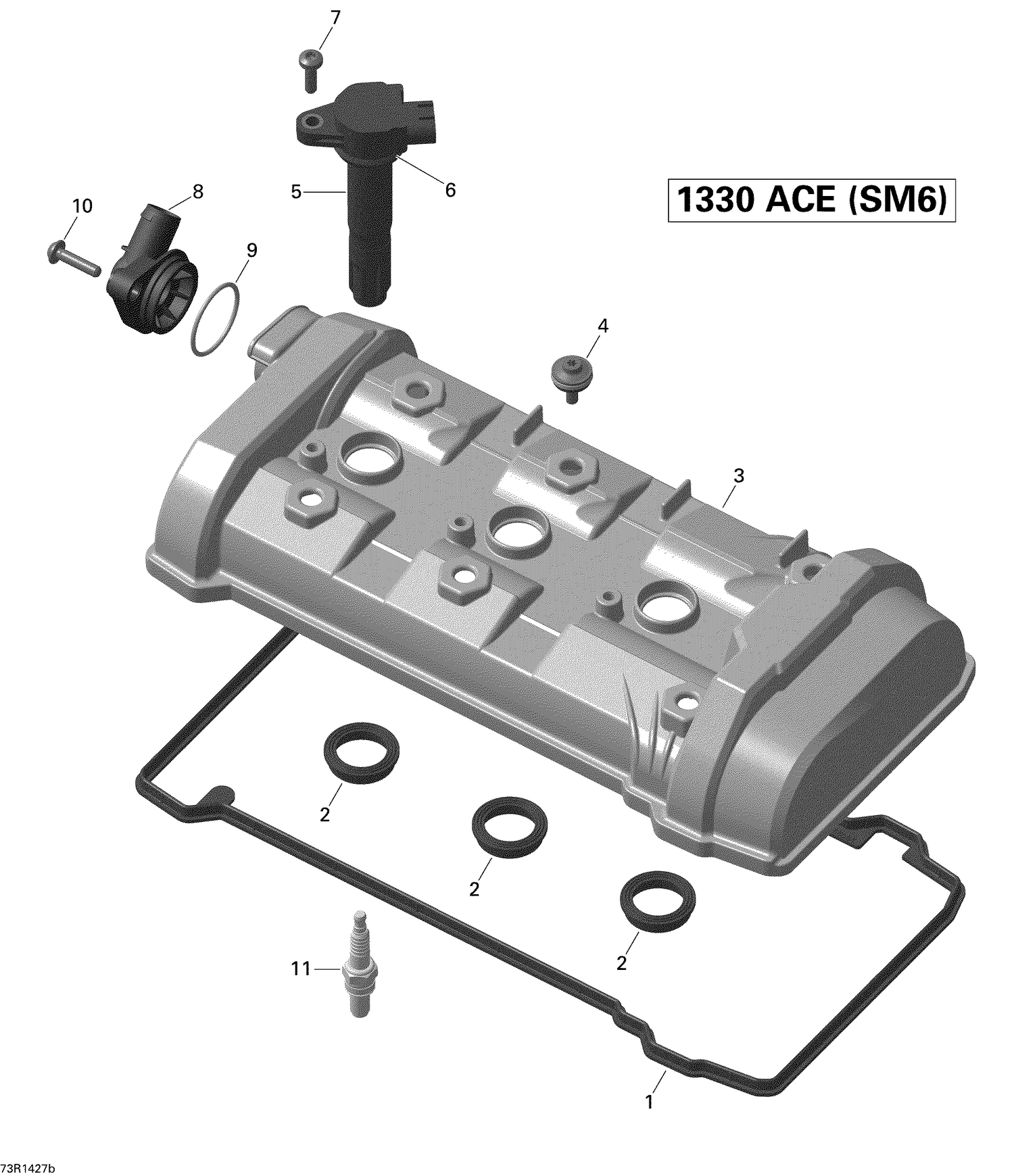

01- Valve Cover

01- Valve Cover

Parts (9)

RefPart NumberDescription
1 420250220 Gasket
2 420250240 Gasket
3 420210190 Valve Cover
4 420440495 Torx Distance Screw M6
6 420201430 Protection Cap
7 420441386 Torx Flange Screw M6 X 20
8 420210630 Connector
9 420950870 O-Ring
10 420841549 Torx Flange Screw M6 X 25
