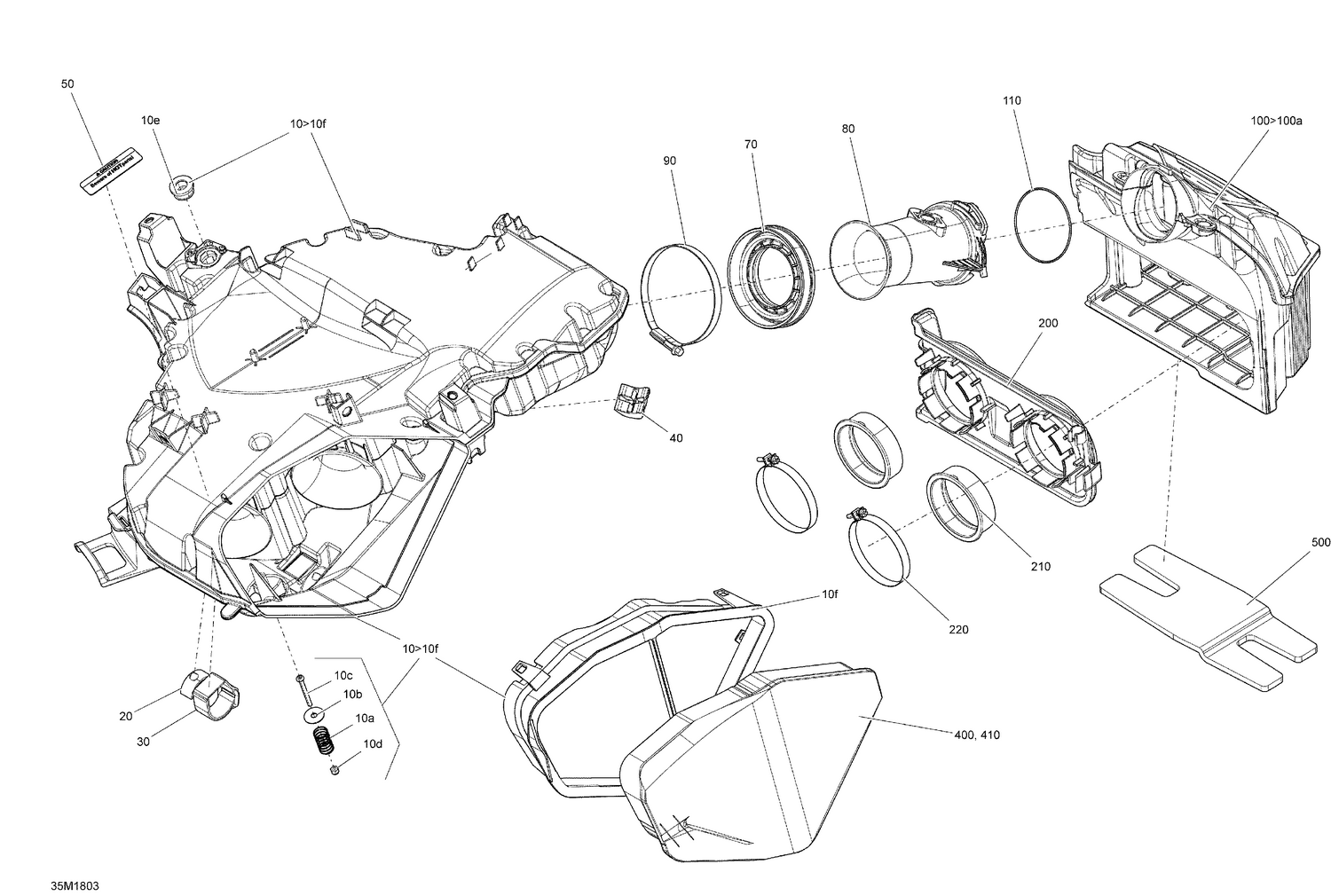

02- Air Intake - 600 CARB
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 508000576 | Spring |
| 10b | 224060201 | Flat Washer |
| 10c | 205444056 | Socket Head Screw M4 X 40 |
| 10d | 232541414 | Elastic Stop Nut M4 |
| 10e | 508000574 | Grommet |
| 20 | 508000537 | Stopper |
| 30 | 508000820 | Velcro Strip |
| 40 | 508000572 | Bumper |
| 50 | 516005280 | Caution Decal Hot Parts |
| 70 | 508000567 | Boot |
| 80 | 508000661 | Flute |
| 90 | 514052924 | Norma Clamp |
| 100a | 516005876 | Notice Decal, Air Intake Silencer |
| 110 | 293300115 | O-Ring |
| 200 | 508000500 | Plate Adapter |
| 210 | 508000501 | Air Intake Adapter |
| 220 | 508000346 | Gemi Clamp |
