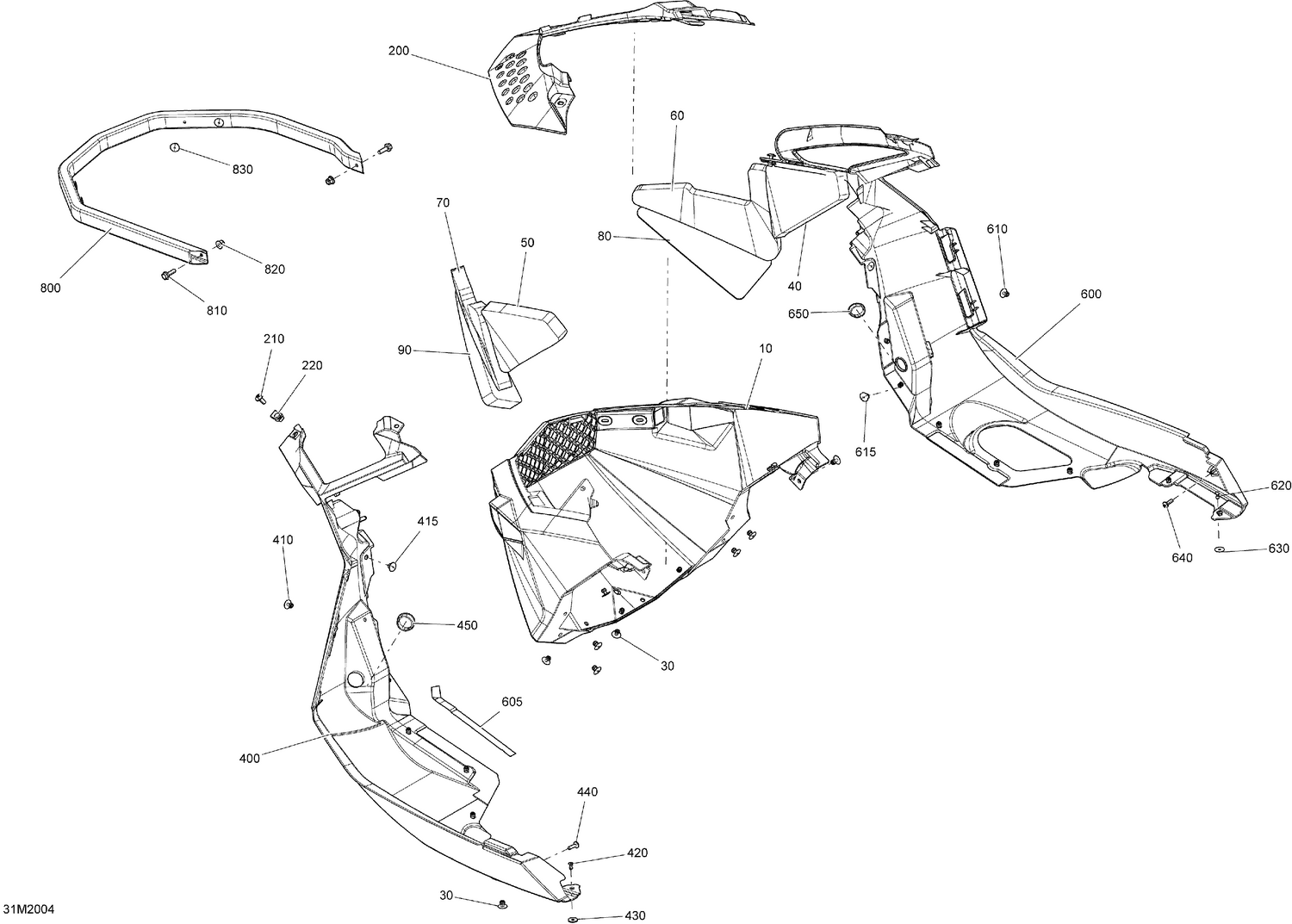

09- Body - Bottom Pan
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502006971 | Black, Front Bottom Pan |
| 30 | 293150104 | Pop Rivet 3/16" |
| 40 | 502007210 | RH Foam Upper |
| 50 | 502007211 | LH Foam Upper |
| 60 | 502007212 | RH Middle Foam |
| 70 | 502007213 | LH Middle Foam |
| 80 | 502007214 | RH Lower Foam |
| 90 | 502007215 | LH Lower Foam |
| 200 | 502007068 | Deep Black Bottom Pan Cap |
| 210 | 250000721 | Torx Truss Screw M6 X 16 |
| 220 | 250100198 | Panel Nut M6 X 1.0 |
| 400 | 502006914 | RH Bottom Pan |
| 410 | 293150104 | Pop Rivet 3/16" |
| 415 | 293150103 | Pop Rivet 3/16" |
| 420 | 390402300 | Pop Rivet 3/16" |
| 430 | 517124300 | Washer |
| 440 | 250000720 | Torx Screw K50 X 16 |
| 450 | 414916600 | Black, Nylon Cap |
| 600 | 502007051 | LH Bottom Pan |
| 605 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 610 | 293150104 | Pop Rivet 3/16" |
| 615 | 293150103 | Pop Rivet 3/16" |
| 620 | 390402300 | Pop Rivet 3/16" |
| 630 | 517124300 | Washer |
| 640 | 250000720 | Torx Screw K50 X 16 |
| 650 | 414916600 | Black, Nylon Cap |
| 800 | 502006944 | Front Bumper |
| 810 | 207662044 | Hex. Flange Screw M6 X 20 |
| 820 | 233261416 | Elastic Flange Nut M6 X 1.0 |
