| Ref | Part Number | Description |
|---|
| ABS |
710008719 |
Connector Bosch Female 46 Cavities |
| ABS |
710008720 |
Cover With CPA |
| ABS |
710008721 |
Bosch Female Terminal 4.8 |
| ABS |
710008722 |
Connector Seal Bosch 4.8 |
| ABS |
710008725 |
Housing Fill Plug 2.8 |
| ABS |
710008726 |
Bosch Female Terminal 1.2 |
| ABS |
710008729 |
Connector Seal Bosch1.2 |
| ABS |
710008730 |
Plug 1.2 |
| AEB |
409012100 |
Female Terminal |
| AEB |
710000402 |
Wire Seal |
| AEB |
710008152 |
Sumitomo Female Connector 2 Cavities |
| AMP |
278002860 |
Sealing Cap |
| AMP |
278002894 |
Housing 6 Circuits |
| AMP |
515178018 |
Female Terminal |
| AMP |
515178349 |
Female Terminal 22 AWG |
| BCM1 |
710001589 |
Female Terminal |
| BCM1 |
710001591 |
Cover, 48 positions |
| BCM1 |
710001592 |
Plug |
| BCM1 |
710001593 |
Plug |
| BCM1 |
710001727 |
Female Terminal |
| BCM1 |
710007617 |
Plug |
| BCM1 |
710007619 |
Seal Joint |
| BCM1 |
710007620 |
Seal Joint |
| BCM1 |
710007623 |
Femal Terminal |
| BCM1 |
710007627 |
Front PT Housing |
| BCM1 |
710007658 |
Femal Terminal |
| CF |
278000217 |
Female Housing, 2 Circuits |
| CF |
278001576 |
MALE TERMINAL - Call your local BRP dealership |
| CF |
710000048 |
Wire Seal |
| CF |
710001038 |
Clip |
| D2 |
409012700 |
Diode |
| D5 |
409012700 |
Diode |
| D6 |
409012700 |
Diode |
| DC1 |
409010300 |
Female Terminal |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DLC |
710002705 |
Lock |
| DLC |
710002706 |
Female Housing 6 Circuits |
| DLC |
710005438 |
Female Terminal |
| DLC |
710005439 |
Female Terminal |
| DPS |
278002186 |
Wire Seal |
| DPS |
278002187 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001873 |
Terminal This part replaces 710001765. |
| DPS |
710002075 |
Plug |
| DPS |
710003153 |
Seal |
| DPS |
710004989 |
Female Housing |
| DPS |
710005098 |
Lock |
| ECM1 |
515178595 |
Housing 56 Circuits |
| ECM1 |
515178596 |
Terminal |
| ECM1 |
515178597 |
Terminal |
| ECM1 |
515178598 |
Terminal |
| ECM1 |
515178599 |
Plug |
| ECM1 |
515178600 |
Plug |
| ECM1 |
515178601 |
Cover |
| ECM1 |
515178603 |
Plate |
| ECM1 |
515178604 |
Plate |
| FP |
278002185 |
Male Housing, 4 Circuits |
| FP |
278002186 |
Wire Seal |
| FP |
278002187 |
Female Terminal |
| FP |
710001222 |
Lock |
| FP |
710001873 |
Terminal This part replaces 710001765. |
| FP |
710003153 |
Seal |
| FRR1 |
409209400 |
Male Terminal Housing, 2 Circuits |
| FRR1 |
515176164 |
Male Terminal |
| FRR1 |
515176621 |
Wire Seal |
| FRR2 |
409209400 |
Male Terminal Housing, 2 Circuits |
| FRR2 |
515176164 |
Male Terminal |
| FRR2 |
515176621 |
Wire Seal |
| GND |
278001392 |
Open Barrel Terminal |
| GPS |
278002299 |
Female Terminal Housing 6 Circuits |
| GPS |
515175812 |
Plug |
| GPS |
710001119 |
Female Terminal |
| HAZARD |
409012100 |
Female Terminal |
| HAZARD |
710000080 |
Cap |
| HAZARD |
710000402 |
Wire Seal |
| HIC |
515177205 |
Housing |
| HIC |
710001222 |
Lock |
| HIC |
710001228 |
Terminal |
| HIC |
710001332 |
Seal Wire |
| HIC |
S2S |
F 710008739 Female Connector 4 Cavities 710008739 |
| HL |
HI |
LEFT 710007660 Housing 710007660 |
| HL |
LO |
LEFT 515177192 Female Housing, 2 Circuits 515177192 |
| HO2S1 |
278001482 |
Seal |
| HO2S1 |
515178661 |
Lock |
| HO2S1 |
710000736 |
Terminal |
| HO2S1 |
710002466 |
Housing |
| HO2S1 |
710002597 |
Gold Terminal |
| HUB |
710001589 |
Female Terminal |
| HUB |
710001592 |
Plug |
| HUB |
710001593 |
Plug |
| HUB |
710001727 |
Female Terminal |
| HUB |
710001728 |
Terminal |
| HUB |
710007617 |
Plug |
| HUB |
710007620 |
Seal Joint |
| HUB |
710007650 |
Cover |
| HUB |
710007658 |
Femal Terminal |
| HUB |
710008036 |
Female Molex Connector 53 Cavities |
| IMU |
710001118 |
Wire Seal |
| IMU |
710003730 |
Housing |
| IMU |
710010230 |
Female Terminal |
| KX |
409010100 |
Female Terminal |
| KX |
409010400 |
Female Terminal Housing, 1 Circuit |
| LOCK |
LED |
C 710000080 Cap 710000080 |
| LP |
515175232 |
Male Terminal |
| LP |
515175654 |
Male Terminal Housing, 2 Circuits |
| MG1 |
710008931 |
Plug |
| MG1 |
710009309 |
Sumitomo Female Terminal |
| MG1 |
710009813 |
Connector Seal |
| MG1 |
710009839 |
Sumitomo Female Connector 13 Cavities |
| MG2 |
710008931 |
Plug |
| MG2 |
710009306 |
Sumitomo Female 6 Cavities Connector |
| MG2 |
710009309 |
Sumitomo Female Terminal |
| MG2 |
710009813 |
Connector Seal |
| PF1 |
278000216 |
Wire Seal |
| PF1 |
278000218 |
Wire Seal |
| PF1 |
278001065 |
Wire Seal |
| PF1 |
278002578 |
Female Terminal |
| PF1 |
278003448 |
Fuse Base Ass'y |
| PF1 |
710000048 |
Wire Seal |
| PF1 |
710000890 |
Female Terminal |
| PF1 |
710000918 |
Female Terminal |
| PF2 |
278001325 |
Fuse Holder |
| PF2 |
710000357 |
Female Terminal |
| PF2 |
710001613 |
Fuse |
| PF3 |
278001325 |
Fuse Holder |
| PF3 |
710000113 |
Female Terminal |
| PF3 |
710000357 |
Female Terminal |
| PF3 |
710001613 |
Fuse |
| PF4 |
278001325 |
Fuse Holder |
| PF4 |
710000357 |
Female Terminal |
| PF4 |
710001613 |
Fuse |
| PF5 |
278001325 |
Fuse Holder |
| PF5 |
710000357 |
Female Terminal |
| PF6 |
278000216 |
Wire Seal |
| PF6 |
278000218 |
Wire Seal |
| PF6 |
278001065 |
Wire Seal |
| PF6 |
278002578 |
Female Terminal |
| PF6 |
278003448 |
Fuse Base Ass'y |
| PF6 |
710000918 |
Female Terminal |
| PF7 |
710001048 |
Fuse, 50 AMP |
| PF7 |
710002243 |
Fusebox 60 Amp |
| PF8 |
278001325 |
Fuse Holder |
| PF8 |
710000357 |
Female Terminal |
| PF8 |
710001613 |
Fuse |
| PSI |
710001118 |
Wire Seal |
| PSI |
710008885 |
Connector Tyco Female 3 Cavities |
| PSI |
710008886 |
Tyco Terminal Female |
| R1 |
710005179 |
Resistor |
| R2 |
710006155 |
Resistor |
| R5 |
710010437 |
Resistor |
| R6 |
710010438 |
Resistor |
| REG |
710000879 |
Female Housing, 3 Circuits |
| REG |
710000882 |
Cap |
| REG |
710001932 |
Seal |
| REG |
710001934 |
Terminal |
| RFID |
710001163 |
Wire Seal |
| RFID |
710001164 |
Female Terminal |
| RFID |
710007151 |
Female Delphi Connector 5 Cavities |
| RFID |
710007243 |
Lock |
| S2S |
S |
RL 710003731 Housing 710003731 |
| S2S |
V |
FL 515179555 Housing Jae, 2 Pins 515179555 |
| SOL |
515177192 |
Female Housing, 2 Circuits |
| SOL |
710000925 |
Terminal |
| SOL |
710001152 |
Lock |
| SOL |
710001153 |
Seal Wire |
| SW1 |
409010700 |
Female Terminal |
| SW2 |
409010700 |
Female Terminal |
| SW3 |
409010700 |
Female Terminal |
| SW4 |
278000992 |
Open Barrel |
| SWW |
278000223 |
Female Terminal |
| SWW |
278000273 |
Male Housing, 3 Circuits |
| SWW |
278001065 |
Wire Seal |
| TAS |
710001224 |
Terminal |
| TAS |
710001231 |
Housing |
| TAS |
710001233 |
Seal |
| TAS |
710005296 |
Lock 6 Positions |
| TL |
L |
I 710000645 Housing 710000645 |
| TL |
R |
I 710000645 Housing 710000645 |
| TRL |
409012100 |
Female Terminal |
| TRL |
710000081 |
Female Housing, 6 Circuits |
| TRL |
710000402 |
Wire Seal |
| 200 |
710009387 |

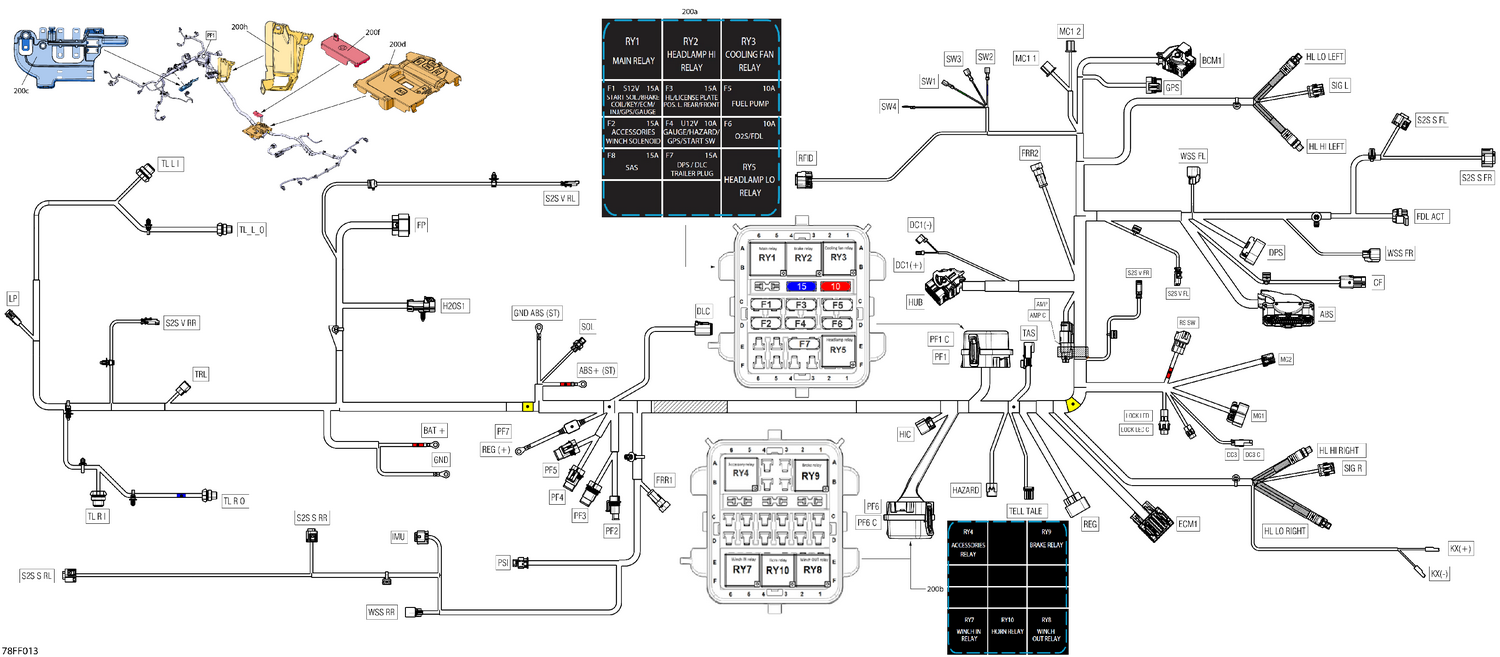

Main Wiring Harness |
