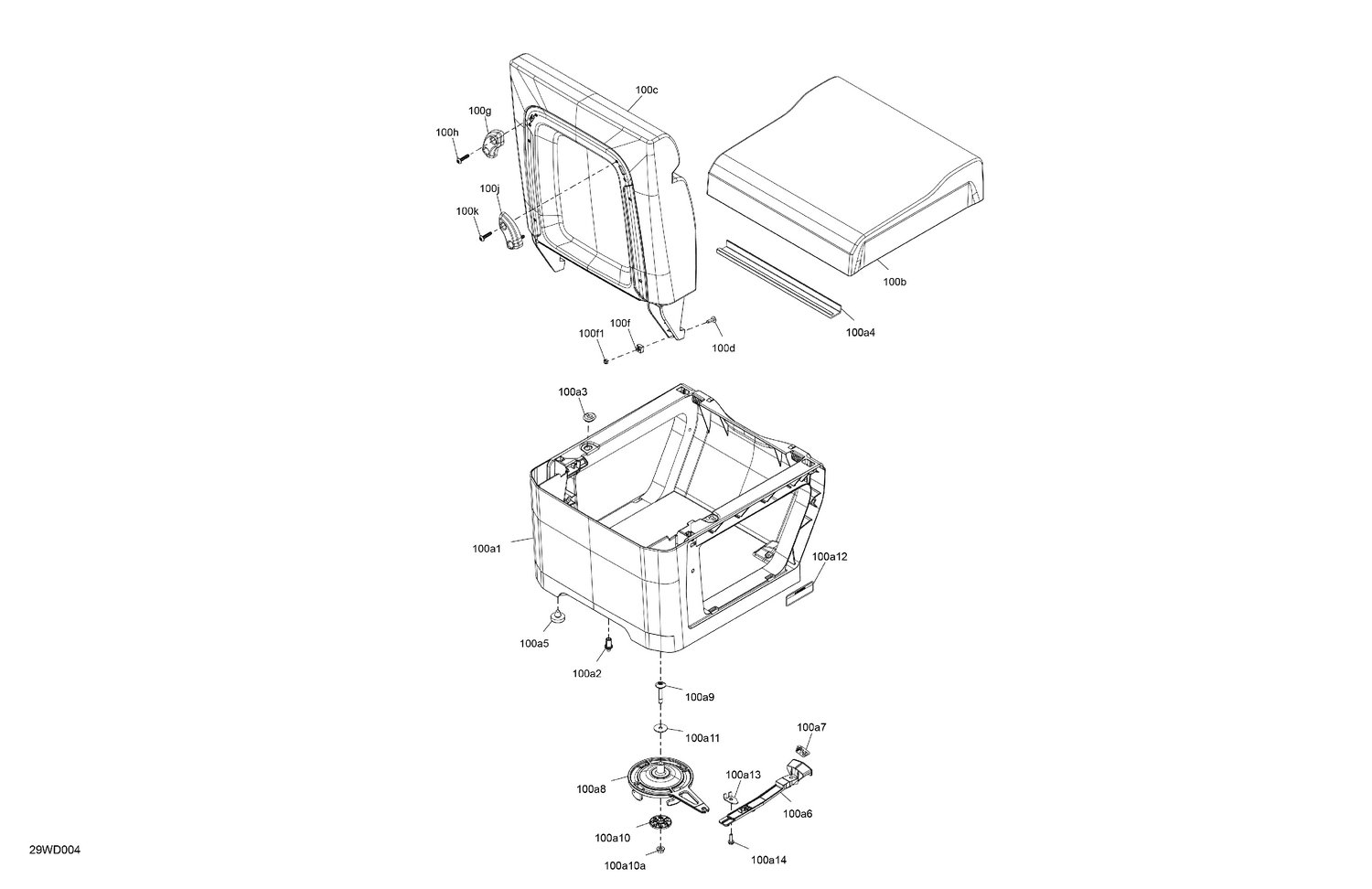

07- FURNITURE - Single Seat
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 100a1 | 295101127 | Seat Support Service Kit |
| 100a10a | 233181600 | Hex. Flange Nut M8 |
| 100a11 | 250200130 | Flat Washer 8 mm |
| 100a12 | 219905883 | Seat Anchorage Warning Label |
| 100a13 | 269003887 | Guide |
| 100a14 | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 100a2 | 269003492 | Locator Rod |
| 100a3 | 705000321 | Oval Washer |
| 100a4 | 269003483 | Gutter |
| 100a5 | 269003502 | Rubber Stopper |
| 100a6 | 295101126 | Lever Latch Service Kit |
| 100a7 | 219905993 | Lever Decal |
| 100a8 | 269003311 | Seat Anchorage |
| 100a9 | 250001154 | Torx Head M8 X 50 S.GRIP |
| 100b | 269004050 | Dusty Navy Satin, Seat Cushion Ass'y |
| 100c | 269004052 | Dusty Navy Satin, Backrest Ass'y |
| 100d | 250000234 | Torx Screw M6 X 20, Stainless |
| 100f1 | 232561200 | Brass Elastic Stop Nut M6 |
| 100g | 269003903 | LH Rubber Stopper |
| 100h | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 100j | 269003904 | RH Rubber Stopper |
