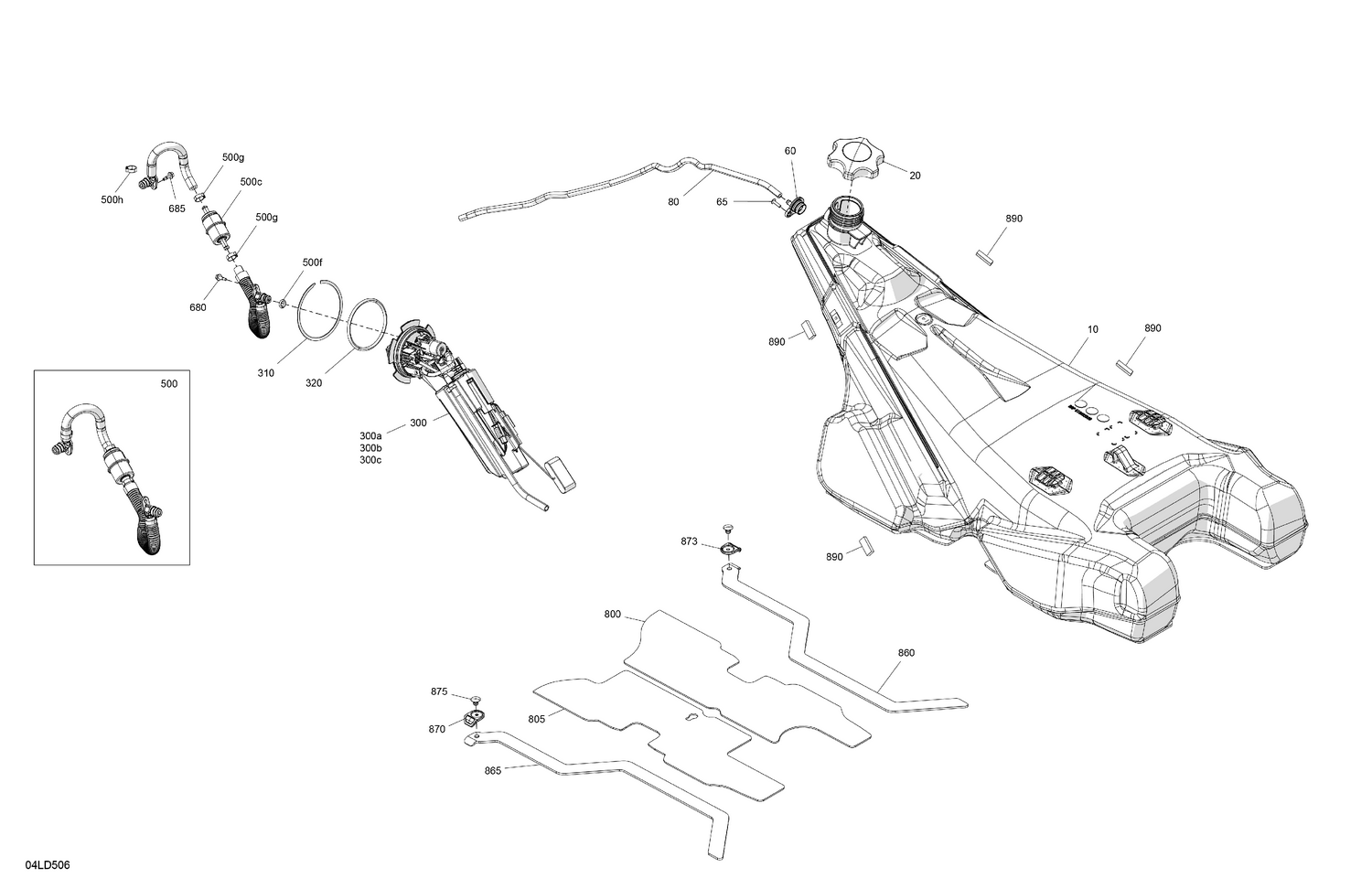

02- Engine - Fuel
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513034100 | Fuel Tank |
| 20 | 513033942 | Fuel Tank Cap |
| 60 | 513033849 | Check Valve |
| 65 | 250000918 | Truss Torx Screw K40 X 16 |
| 80 | 219704539 | Hose 5.7MM - 630MM |
| 300a | 415130507 | Canister |
| 300b | 415130508 | Filter |
| 300c | 415130727 | Fuel Level Sensor |
| 310 | 513034097 | Circlip |
| 320 | 513033862 | O-Ring |
| 500c | 513034047 | Fuel Filter |
| 500f | 513033668 | O-Ring |
| 500g | 293650047 | Crimp Clamp, 15.3-706R |
| 500h | 293650053 | Crimp Clamp |
| 680 | 250000911 | Hex. Flange Screw M5 X 16 |
| 685 | 250000911 | Hex. Flange Screw M5 X 16 |
| 800 | 513034052 | RH Insulated Foam |
| 805 | 513034053 | LH Insulated Foam |
| 860 | 513033981 | Foam |
| 865 | 513033982 | Foam |
| 870 | 513033917 | Retainer Plate |
| 873 | 513033917 | Retainer Plate |
| 875 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
