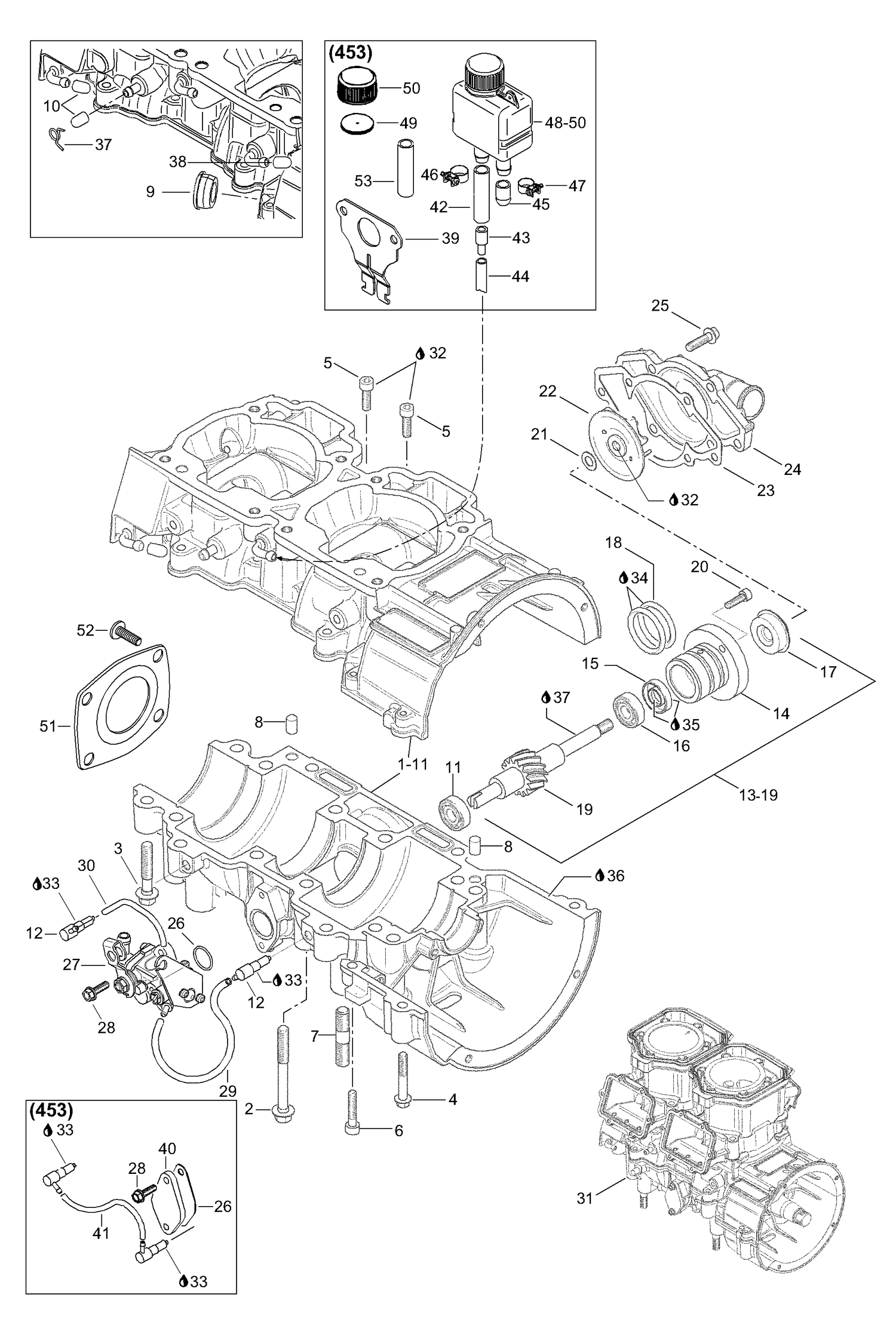

| Ref | Part Number | Description |
|---|
| 2 |
420640836 |
Screw M8 x 75 |
| 3 |
420640433 |
Collar Hex Screw M8 X 45 This part replaces 420640431. |
| 4 |
420640312 |
Hex. Collar Screw M6 X 45 This part replaces 420640311. |
| 5 |
420840403 |
Socket Head Screw M6 X 22 This part replaces 420840401. |
| 6 |
205063044 |
Allen screw M6x30 This part replaces 420840880. |
| 7 |
420641834 |
STUD M10 X 29 - Call your local BRP dealership |
| 8 |
420632010 |
Center Pin 8 X 12 |
| 9 |
420860965 |
Cable grommet |
| 10 |
420960770 |
Closure cap |
| 11 |
420232100 |
Ball Bearing |
| 12 |
420956511 |
Check Valve This part replaces 420956510. |
| 15 |
420230195 |
Oil seal This part replaces 420230196. |
| 16 |
420232100 |
Ball Bearing |
| 17 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 18 |
420950890 |
O-Ring |
| 20 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. |
| 21 |
420227945 |
Thrust washer |
| 22 |
420222505 |
Impeller |
| 23 |
420931811 |
Gasket This part replaces 420931810. |
| 24 |
420922630 |
Pump housing |
| 25 |
420240034 |
Hex. Screw M6 x 25 This part replaces 420240031. |
| 26 |
293300041 |
O-Ring This part replaces 420230400. |
| 27 |
420888770 |
OIL PUMP ASSY - Call your local BRP dealership |
| 28 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 29 |
420660421 |
Oil line 70 mm |
| 30 |
420660423 |
Oil line 115 mm, PTO |
| 31 |
300079341 |
Short block engine |
| 32 |
293800060 |
Loctite 243, 10ml |
| 33 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 34 |
413707000 |
Molykote 111 |
| 35 |
420899271 |
Klueber petamo, 250gr. |
| 36 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
| 37 |
420938190 |
CLAMP - Call your local BRP dealership |
| 38 |
420960777 |
CAP - Call your local BRP dealership |
| 39 |
Not |
Available As Spare Part - Oil tank support - DOES NOT APPLY TO THIS MODEL |
| 40 |
Not |
Available As Spare Part - Cover plate - DOES NOT APPLY TO THIS MODEL |
| 41 |
Not |
Available As Spare Part - Oil line 170 mm - DOES NOT APPLY TO THIS MODEL |
| 42 |
Not |
Available As Spare Part - Hose - DOES NOT APPLY TO THIS MODEL |
| 43 |
Not |
Available As Spare Part - Reduction fitting - DOES NOT APPLY TO THIS MODEL |
| 44 |
Not |
Available As Spare Part - Oil line 120 mm - DOES NOT APPLY TO THIS MODEL |
| 45 |
Not |
Available As Spare Part - Cap - DOES NOT APPLY TO THIS MODEL |
| 46 |
Not |
Available As Spare Part - Clamp - DOES NOT APPLY TO THIS MODEL |
| 47 |
Not |
Available As Spare Part - Clamp - DOES NOT APPLY TO THIS MODEL |
| 48 |
Not |
Available As Spare Part - Shaft - DOES NOT APPLY TO THIS MODEL |
| 49 |
Not |
Available As Spare Part - Gasket - DOES NOT APPLY TO THIS MODEL |
| 50 |
Not |
Available As Spare Part - Cap - DOES NOT APPLY TO THIS MODEL |
| 51 |
420812422 |
Oil Seal Cover This part replaces 420812420. |
| 52 |
420941436 |
Screw M6 X 20 This part replaces 420941430. |
