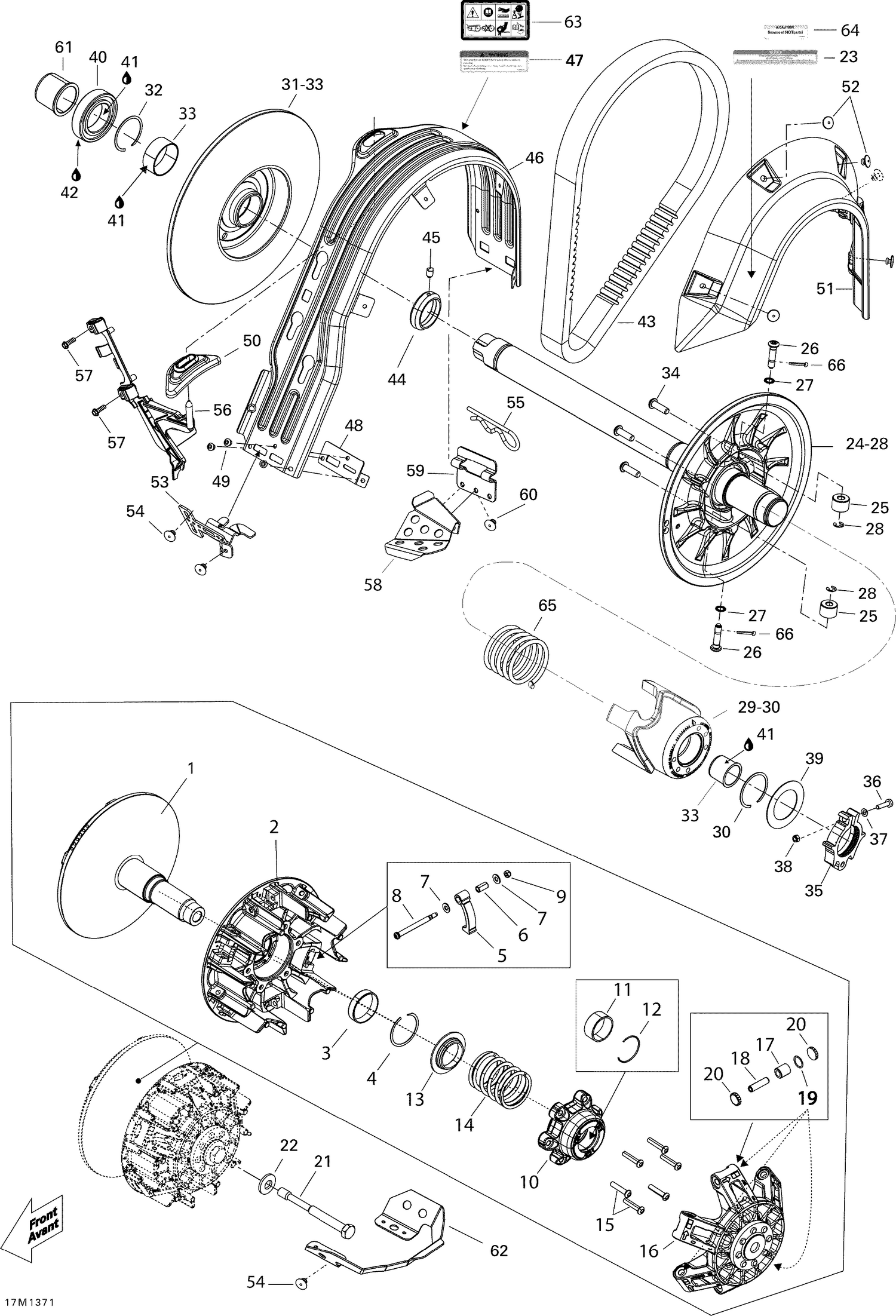

05- Pulley System
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417224091 | Fixed Flange Ass'y This part replaces 417223648. |
| 2 | 417224044 | Flange Slide Ass'y This part replaces 417223763. |
| 3 | 417222758 | Bushing |
| 4 | 293370037 | Circlip |
| 5 | 417223679 | Rampe 735 |
| 7 | 417223660 | Stopper Washer |
| 8 | 417223694 | Ramp Axle |
| 9 | 232551414 | Elastic Stop Nut M5 |
| 10 | 417223650 | Spring Cover Ass'y |
| 12 | 293370065 | Circlip |
| 13 | 417223752 | Seat Spring |
| 14 | 417224085 | Clutch Spring This part replaces 417223751. |
| 15 | 250000580 | Torx Screw M6 X 30 |
| 16 | 417223865 | Governor Cup Ass'y This part replaces 417223790. |
| 17 | 417223767 | Roller |
| 18 | 417223257 | Roller Axle |
| 19 | 293300185 | O-Ring This part replaces 293300169. |
| 20 | 417223919 | Slider Shoe This part replaces 417223269. |
| 21 | 417300432 | Pulley Drive Bolt |
| 22 | 250200006 | Spring Washer 14 mm |
| 23 | 516005503 | Decal English |
| 24 | 417127408 | Flasque Fixe As*Flange-Fix.Ass This part replaces 417127330. |
| 25 | 417127189 | Roller |
| 26 | 417127294 | Pivot Stud |
| 27 | 250200009 | Lock Washer 8 mm |
| 28 | Not | Available As Spare Part - Not on use in this model |
| 29 | 417127412 | Cam Ass'y This part replaces 417127206. |
| 30 | 293370049 | Circlip |
| 31 | 417127317 | Sliding Flange Ass'y This part replaces 417126955. |
| 32 | 293370049 | Circlip |
| 33 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L This part replaces 417127000. |
| 34 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 35 | 415129604 | Calibration Ass'y |
| 36 | 205052544 | Socket Screw M5 X 25 |
| 37 | 234051410 | Flat Washer M5 |
| 39 | 417127155 | Washer |
| 40 | 504152574 | Ball Bearing |
| 41 | 413703100 | Loctite 609, 10 ml |
| 42 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 45 | 417127203 | SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership |
| 47 | 516004649 | Security label, Belt Guard |
| 48 | 417300380 | Reinforcement |
| 49 | 390909200 | Avex Rivet |
| 50 | 417300381 | Guide |
| 51 | 417300356 | Side Protector |
| 52 | 293150103 | Pop Rivet 3/16" |
| 53 | 417300373 | Belt Guard Bracket |
| 54 | 293150104 | Pop Rivet 3/16" |
| 55 | 114045200 | Hair Pin |
| 56 | 417300396 | BELT GUARD BRACKET - Call your local BRP dealership |
| 57 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 58 | 518325626 | Brake Hose Cover |
| 59 | 417300363 | Belt Guard Bracket |
| 60 | 293150163 | Rivet Hucklok |
| 61 | 504153054 | Protective Rubber |
| 62 | 518326566 | PULLEY COVER PLATE - Call your local BRP dealership |
| 63 | 516003919 | Warning Decal |
| 64 | 516004651 | Caution Label, Air Intake |
| 65 | 417127344 | Release Spring |
| 66 | 250400061 | Spring Pin M3 X 18 |
