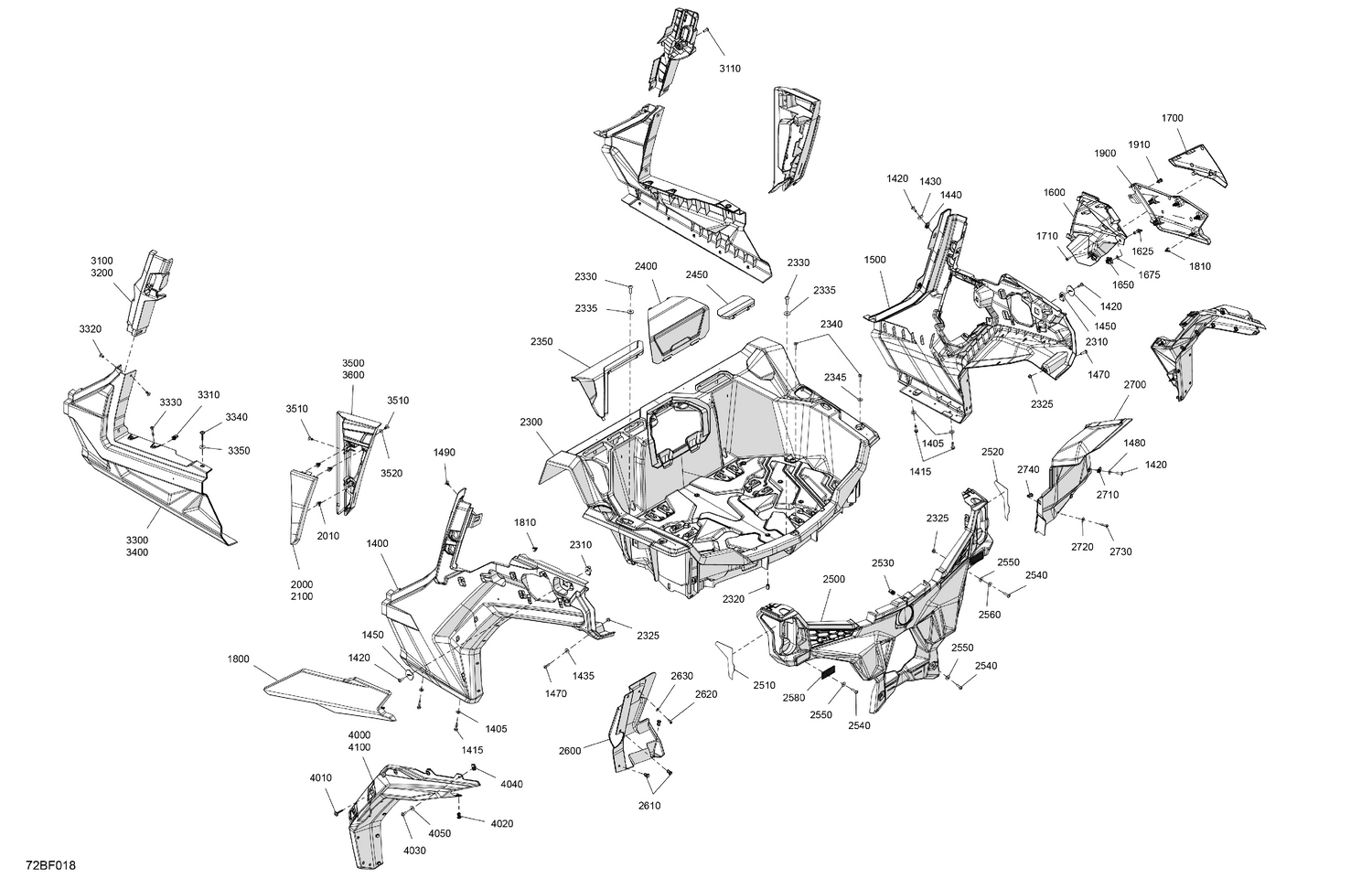

| Ref | Part Number | Description |
|---|
| 1400 |
705011335 |
LH Rear Panel |
| 1405 |
503192494 |
Washer |
| 1415 |
207662554 |
Hex. Flange Screw M6 X 25 |
| 1420 |
250000722 |
Torx Screw M6 X 20 |
| 1430 |
250200162 |
Flat Washer M6.6 X 22 |
| 1435 |
234062670 |
Stainless Steel Flat Washer |
| 1440 |
250100198 |
Panel Nut M6 X 1.0 |
| 1450 |
705003841 |
Support Plate |
| 1470 |
250000807 |
Torx Truss Screw M6 X 25 |
| 1480 |
234062670 |
Stainless Steel Flat Washer |
| 1490 |
414644300 |
Black, Dart |
| 1500 |
705011336 |
RH Rear Panel |
| 1600 |
705011338 |
Air Filter Acces Door |
| 1625 |
708400278 |
Quarter Turn |
| 1650 |
708400285 |
Clip |
| 1675 |
708400286 |
Washer |
| 1700 |
705019685 |
Timeless Black, Access Panel Trim |
| 1710 |
250000720 |
Torx Screw K50 X 16 |
| 1800 |
705019686 |
Timeless Black, LH Open Carrier Trim |
| 1810 |
517306478 |
Clip |
| 1900 |
705019687 |
Timeless Black, RH Open Carrier Trim |
| 1910 |
293150230 |
Tuflok Plastic Rivet |
| 2000 |
705019677 |
Timeless Black, LH Rear Panel Trim |
| 2010 |
517306478 |
Clip |
| 2100 |
705019678 |
Timeless Black, RH Rear Panel Trim |
| 2300 |
705016885 |
Rear Box |
| 2310 |
250100224 |
Panel Nut M6 X 1.0 |
| 2320 |
250100207 |
Hex. Coupling Nut M6 |
| 2325 |
233161464 |
Hex. Elastic Flange Nut M6 |
| 2330 |
250000745 |
Hex Torx Truss M8 X30 |
| 2335 |
234082670 |
Stainless Steel Flat Washer |
| 2340 |
250000807 |
Torx Truss Screw M6 X 25 |
| 2345 |
234062670 |
Stainless Steel Flat Washer |
| 2350 |
705011339 |
CVT Air Inlet Cover |
| 2400 |
705011341 |
Liquid Acces Cover |
| 2450 |
705011340 |
Air Intake Cover |
| 2500 |
705011426 |
Rear Fascia |
| 2510 |
704906815 |
LH Rear Reflector |
| 2520 |
704906816 |
RH Rear Reflector |
| 2530 |
250100198 |
Panel Nut M6 X 1.0 |
| 2540 |
250000807 |
Torx Truss Screw M6 X 25 |
| 2550 |
234062670 |
Stainless Steel Flat Washer |
| 2560 |
234062670 |
Stainless Steel Flat Washer |
| 2580 |
520001820 |
Red Reflector |
| 2600 |
705015886 |
LH Rear Wheel Arch Protector |
| 2610 |
293150230 |
Tuflok Plastic Rivet |
| 2620 |
250000720 |
Torx Screw K50 X 16 |
| 2630 |
250200025 |
Washer M5 |
| 2700 |
705016135 |
RH Rear Wheel Arch Protector |
| 2710 |
250100198 |
Panel Nut M6 X 1.0 |
| 2720 |
234062670 |
Stainless Steel Flat Washer |
| 2730 |
250000807 |
Torx Truss Screw M6 X 25 |
| 2740 |
293150230 |
Tuflok Plastic Rivet |
| 3100 |
705011430 |
LH Median Side Panel |
| 3110 |
250000722 |
Torx Screw M6 X 20 |
| 3200 |
705011431 |
RH Median Side Panel |
| 3300 |
705013190 |
LH Rear Rocker Panel |
| 3310 |
250100198 |
Panel Nut M6 X 1.0 |
| 3320 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 3330 |
250000867 |
Torx Truss Hex. Screw M6X35, Nylon Patch |
| 3340 |
250000840 |
Torx Truss Screw Head PT.K50 X 40 |
| 3350 |
250200162 |
Flat Washer M6.6 X 22 |
| 3400 |
705013191 |
RH Rear Rocker Panel |
| 3500 |
705013140 |
LH Rear Fixed Panel |
| 3510 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 3520 |
250200025 |
Washer M5 |
| 3600 |
705013141 |
RH Rear Fixed Panel |
| 4000 |
705019030 |
LH Rear Mud Guard |
| 4010 |
250000840 |
Torx Truss Screw Head PT.K50 X 40 |
| 4020 |
293150230 |
Tuflok Plastic Rivet |
| 4030 |
250000722 |
Torx Screw M6 X 20 |
| 4040 |
250100198 |
Panel Nut M6 X 1.0 |
| 4050 |
234062670 |
Stainless Steel Flat Washer |
