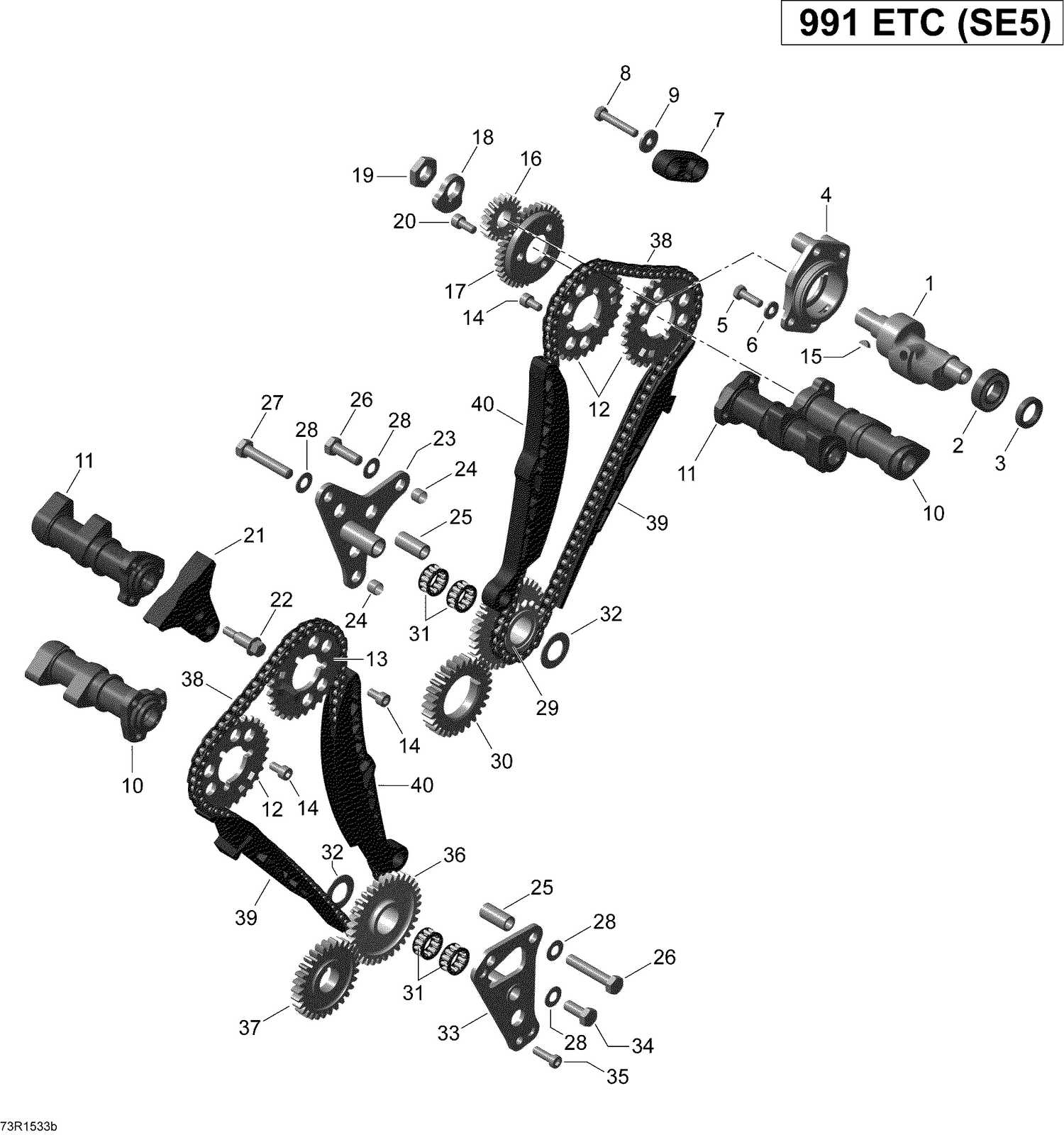

| Ref | Part Number | Description |
|---|
| 1 |
420220442 |
Top Balancer |
| 2 |
420832362 |
Ball Bearing |
| 3 |
420250130 |
Oil Seal |
| 4 |
420211686 |
Flange Bearing |
| 5 |
420940560 |
HEX. SCREW M6 X 20 - Call your local BRP dealership |
| 6 |
224061121 |
Flat Washer |
| 7 |
420236380 |
Chain Guide |
| 8 |
207063544 |
Hex. Flange Screw M6 X 35 |
| 9 |
420827305 |
FLAT WASHER - Call your local BRP dealership |
| 10 |
420620945 |
CAMSHAFT EXHAUST - Call your local BRP dealership |
| 11 |
420620940 |
INTAKE CAMSHAFT - Call your local BRP dealership |
| 12 |
420435112 |
TIMING GEAR - Call your local BRP dealership |
| 13 |
420435116 |
TIMING GEAR - Call your local BRP dealership |
| 14 |
420840379 |
Socket Head Screw M6 X 11.5 This part replaces 420840371. |
| 15 |
420246055 |
Woodruff Key |
| 17 |
Not |
Available As Spare Part - Drive Gear |
| 18 |
420219340 |
BALANCING - Call your local BRP dealership |
| 19 |
420942571 |
HEX. NUT M14 X 1 - Call your local BRP dealership |
| 20 |
420840391 |
Allen Screw M6 X 14 |
| 21 |
420236322 |
Chain Guide |
| 22 |
420240960 |
DISTANCE SCREW M6 X 16 - Call your local BRP dealership |
| 23 |
420211756 |
Flange Bearing |
| 24 |
420929501 |
DOWEL TUBE - Call your local BRP dealership This part replaces 420929500. |
| 25 |
420247980 |
SLEEVE - Call your local BRP dealership |
| 26 |
207084544 |
Hex. Screw M8 X 45 |
| 27 |
207182544 |
Hex. Screw M8 X 25 |
| 28 |
420845030 |
SPRING WASHER - Call your local BRP dealership |
| 30 |
Not |
Available As Spare Part - Drive Gear |
| 31 |
420632162 |
Needle Bearing |
| 32 |
420627190 |
Thrust Washer |
| 33 |
420211766 |
Flange Bearing |
| 34 |
207181860 |
Hex. Screw M8 X 18 |
| 35 |
420240404 |
SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership This part replaces 420240400. |
| 37 |
Not |
Available As Spare Part - Drive Gear |
| 38 |
420297957 |
Camshaft Chain |
| 39 |
420236310 |
Chain Guide |
