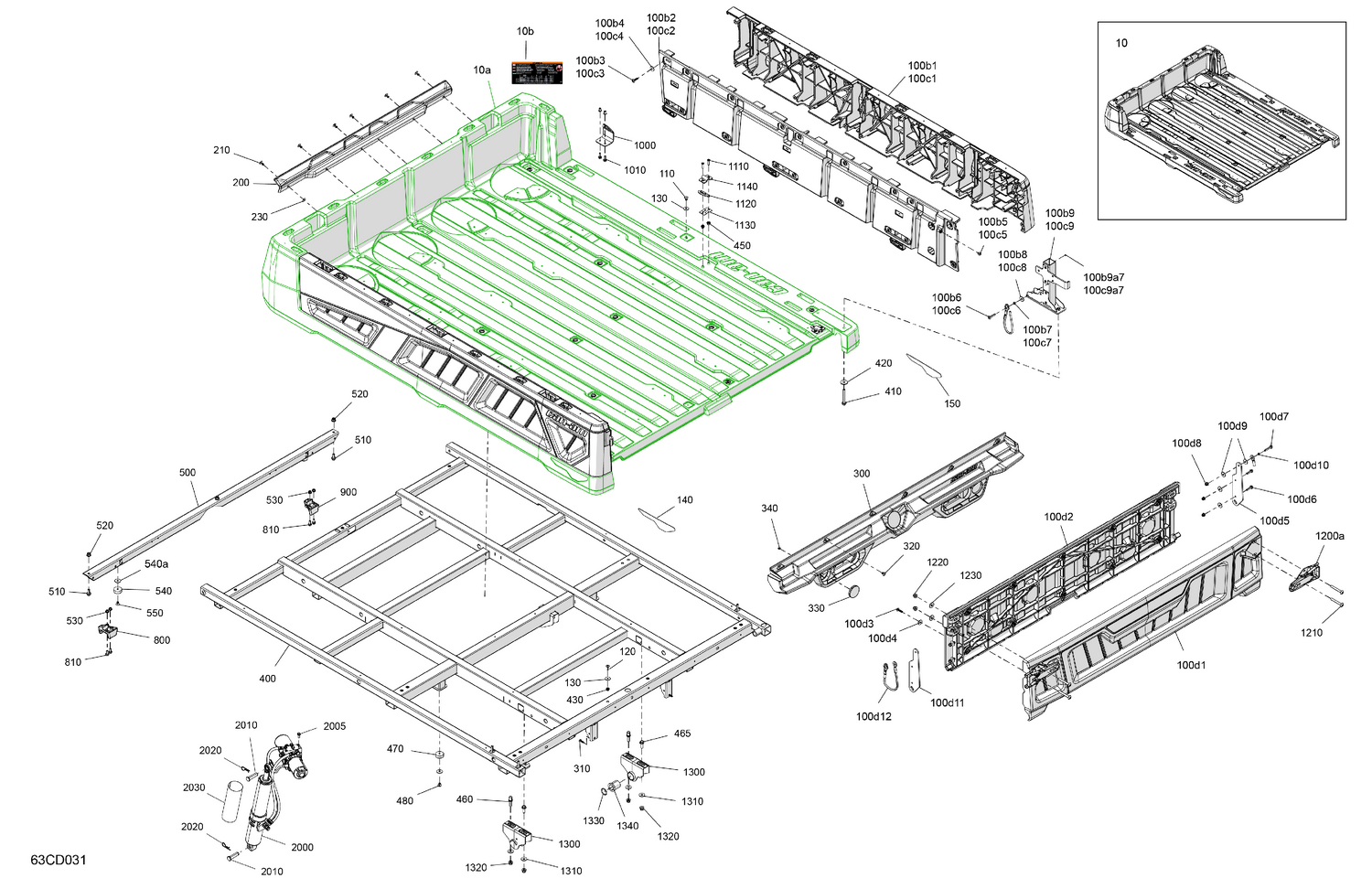

| Ref | Part Number | Description |
|---|
| 10a |
715007479 |
Cargo Box Inside Ass'y |
| 10b |
704910070 |
Tire Pressure Warning Label |
| 100b1 |
708303499 |
LH Cargo Panel |
| 100b2 |
708303499 |
LH Cargo Panel |
| 100b3 |
250000980 |
Hex. Screw Pt K60 X 25 |
| 100b4 |
250200162 |
Flat Washer M6.6 X 22 |
| 100b5 |
293830005 |
Rubber Bumper |
| 100b6 |
250000867 |
Torx Truss Hex. Screw M6X35, Nylon Patch |
| 100b7 |
293900101 |
Bushing |
| 100b8 |
250200162 |
Flat Washer M6.6 X 22 |
| 100b9a7 |
390402000 |
Pop Rivet 3/16" |
| 100c1 |
708303500 |
RH Cargo Panel |
| 100c2 |
708303500 |
RH Cargo Panel |
| 100c3 |
250000980 |
Hex. Screw Pt K60 X 25 |
| 100c4 |
250200162 |
Flat Washer M6.6 X 22 |
| 100c5 |
293830005 |
Rubber Bumper |
| 100c6 |
250000867 |
Torx Truss Hex. Screw M6X35, Nylon Patch |
| 100c7 |
293900101 |
Bushing |
| 100c8 |
250200162 |
Flat Washer M6.6 X 22 |
| 100c9a7 |
390402000 |
Pop Rivet 3/16" |
| 100d1 |
708303501 |
Tailgate Ass'y |
| 100d10 |
293900101 |
Bushing |
| 100d11 |
708304598 |
RH Tailgate Support |
| 100d12 |
708302893 |
Cable Retaining |
| 100d2 |
708303501 |
Tailgate Ass'y |
| 100d3 |
250000980 |
Hex. Screw Pt K60 X 25 |
| 100d4 |
250200162 |
Flat Washer M6.6 X 22 |
| 100d5 |
708304597 |
LH Tailgate Support |
| 100d6 |
207662554 |
Hex. Flange Screw M6 X 25 |
| 100d7 |
207663554 |
Hex. Flange Screw M6 X 35 |
| 100d8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100d9 |
250200162 |
Flat Washer M6.6 X 22 |
| 110 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 120 |
250000722 |
Torx Screw M6 X 20 |
| 130 |
250200162 |
Flat Washer M6.6 X 22 |
| 140 |
708303264 |
LH Rear Reflector |
| 150 |
708303265 |
RH Rear Reflector |
| 200 |
708303216 |
Deflector |
| 210 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 230 |
517124300 |
Washer |
| 300 |
708303496 |
Taillight Support |
| 310 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 320 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 330 |
705016982 |
Red, Reflector |
| 340 |
232551414 |
Elastic Stop Nut M5 |
| 400 |
715008399 |
Open Carrier Frame Kit |
| 410 |
207587044 |
Hex. Flange Screw M8 X 70 |
| 420 |
250200187 |
Flat Washer M8 |
| 430 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 450 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 460 |
250300645 |
Protruding Stud M8 X 28 |
| 465 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 470 |
708304601 |
Rubber Stopper |
| 480 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 500 |
708303709 |
Front Square Tube |
| 510 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 520 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 530 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 540a |
224060251 |
Washer |
| 550 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 800 |
708304411 |
LH Stopper |
| 810 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 900 |
708304412 |
RH Stopper |
| 1000 |
708301480 |
Retaining Plate |
| 1010 |
207662054 |
Hex. Flange Screw M6 X 20 |
| 1110 |
250001107 |
Torx Flat Head Screw T-30 S.Grip M6X25 |
| 1120 |
708302990 |
D-Ring |
| 1130 |
708302991 |
Tie-Down Ring Spring |
| 1140 |
708302992 |
Tie-Down Ring Bracket |
| 1200a |
511001014 |
Latch Ass'y |
| 1210 |
250000901 |
Torx Truss M8 X 65 |
| 1220 |
233281464 |
Elastic Flange Nut M8 |
| 1230 |
234082670 |
Stainless Steel Flat Washer |
| 1300 |
708304581 |
Female Hinge |
| 1310 |
234082410 |
Flat Washer 8 mm |
| 1320 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1330 |
293300131 |
O-Ring |
| 1340 |
708303361 |
Hinge Bushing |
| 2000 |
715007096 |
Actuator Open Carrier Kit |
| 2005 |
250000906 |
Hex Flange Screw M6 X 16 |
| 2010 |
250400096 |
Pin Clevis |
| 2020 |
414575600 |
Hair Pin |
