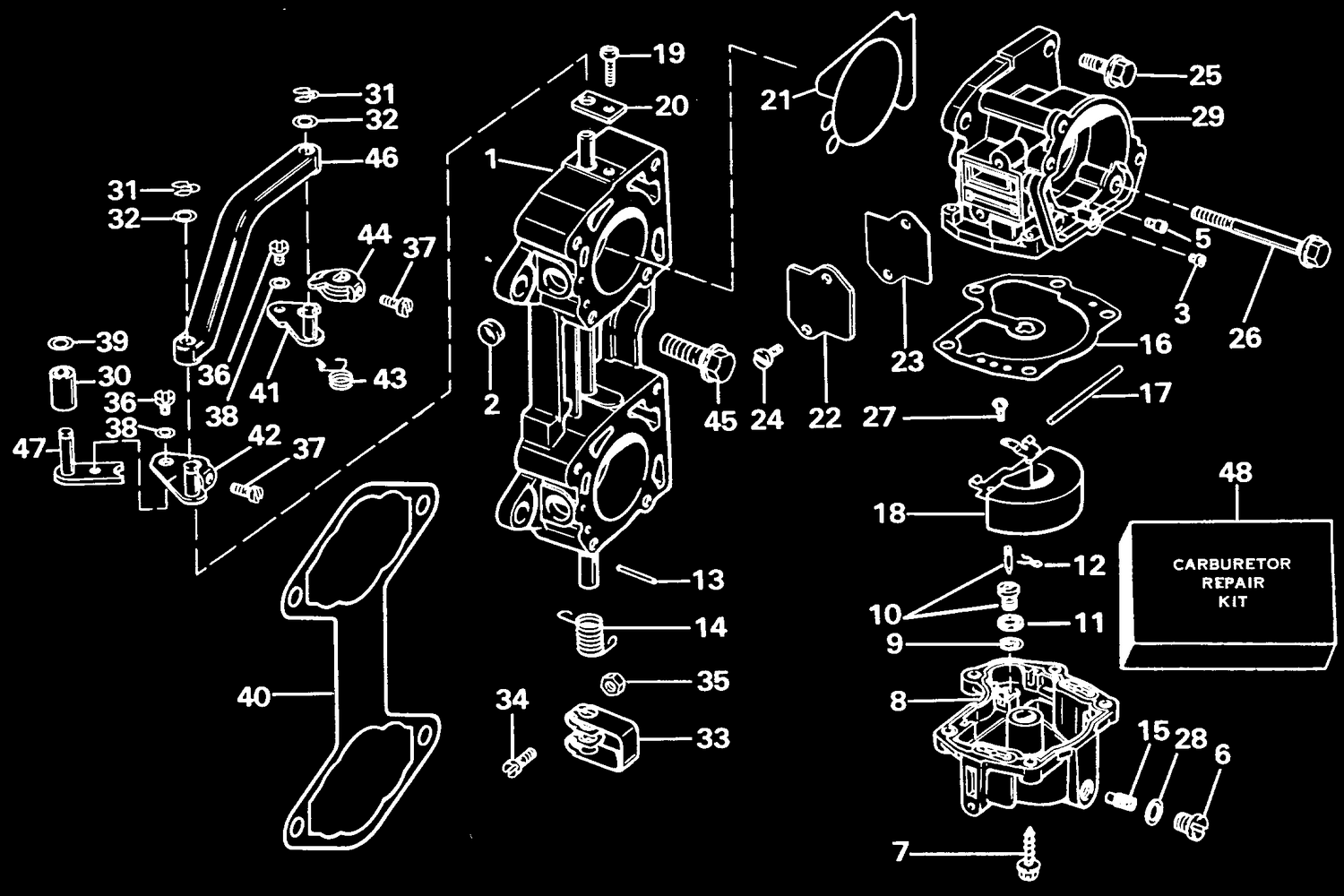

| Ref | Part Number | Description |
|---|
| 1 |
0397577 |
THROTTLE BODY ASSY. |
| 5 |
0325829 |
HIGH SPEED ORIFICE, No. 42 |
| 9 |
0329163 |
SCREEN |
| 12 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 15 |
0319002 |
ORIFICE, High speed No. 78D |
| 21 |
0328650 |
SEAL, Carb, body |
| 22 |
0328640 |
COVER PLATE |
| 23 |
0327223 |
GASKET, Cover plate This part replaces 0328641. |
| 26 |
0324424 |
SCREW, Carb. body, long |
| 29 |
0397576 |
CARB. BODY ASSY. |
| 30 |
0330130 |
ROLLER |
| 31 |
0329559 |
RETAINING RING |
| 32 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 33 |
5000533 |
CONNECTOR ASSY., Throttle shaft This part replaces 0327071. |
| 36 |
0306014 |
VIS, ancrage |
| 37 |
0319108 |
SCREW BELCRANK |
| 38 |
0328738 |
LOCKWASHER |
| 39 |
0308776 |
O-RING |
| 40 |
0332319 |
GASKET, Carburetor mounting This part replaces 0326838. |
| 41 |
0394412 |
LEVER & PIN, Port |
| 42 |
0394413 |
LEVER & PIN, Stbd. |
| 43 |
0329526 |
SPRING, Link adjustment |
| 44 |
0329753 |
LEVER PORT |
| 46 |
0435908 |
LINK, Carburetor This part replaces 0329755. |
| 47 |
0391807 |
LEVER & PIN, Cam follower |
| 0394699 |
0394699 |
CARB. ASSY. |
