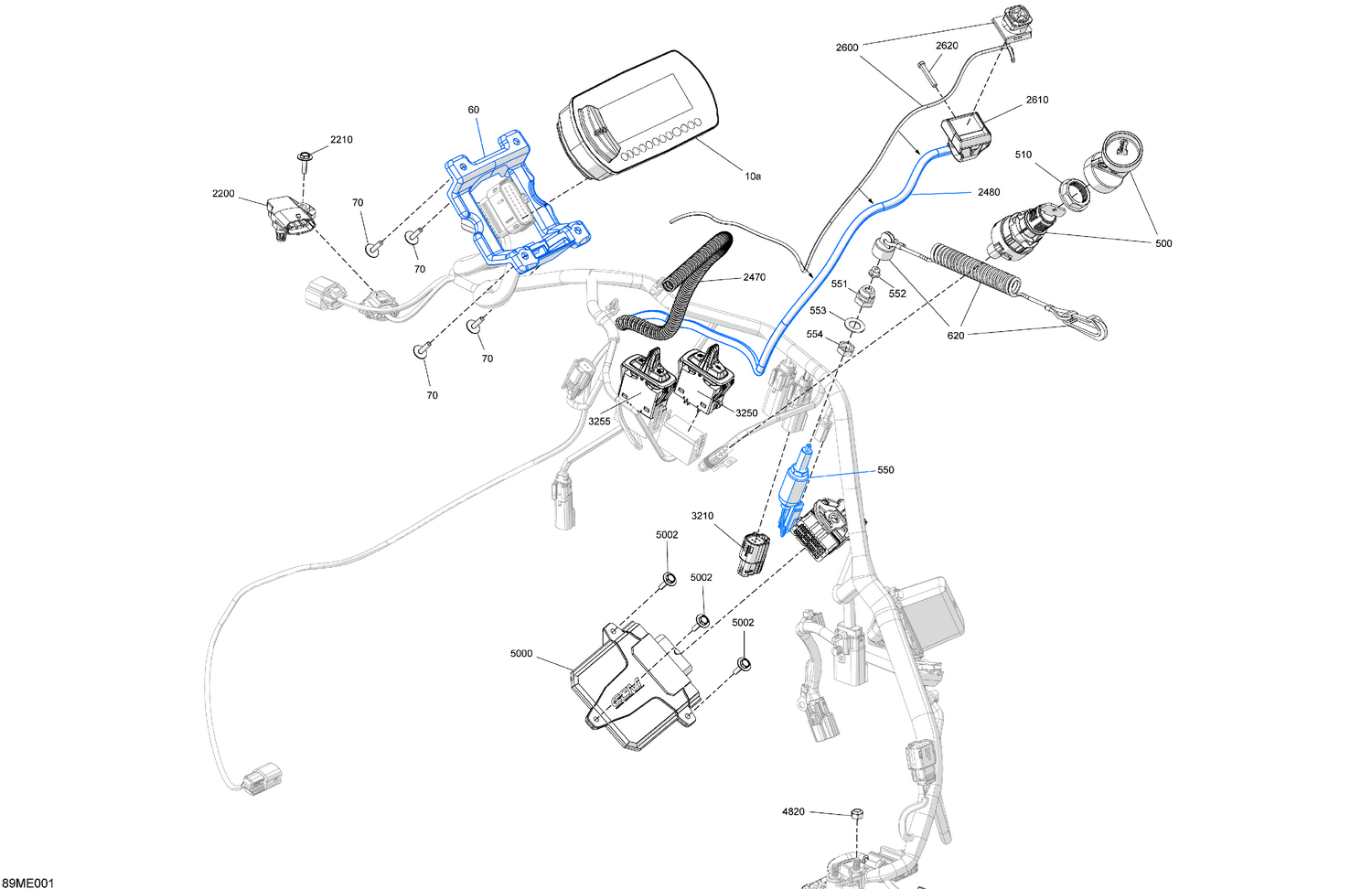

08- Electric - Upper Section
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 515178450 | Housing |
| 70 | 250000725 | Screw M4 X 16 |
| 500 | 710007324 | Ignition Switch |
| 510 | 710007923 | Specialized Nut |
| 550 | 515175653 | Brake Switch |
| 551 | 515145900 | Switch Nut |
| 552 | 570151100 | Plunger Cap |
| 553 | 250200084 | Flat Washer |
| 554 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 620 | 515178283 | Cap Ass'y |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2470 | 515178885 | Sheath Corrugated 9 MM ID |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 4820 | 232561434 | Elastic Stop Nut M6 |
| 5000 | 515179453 | ECM Module |
