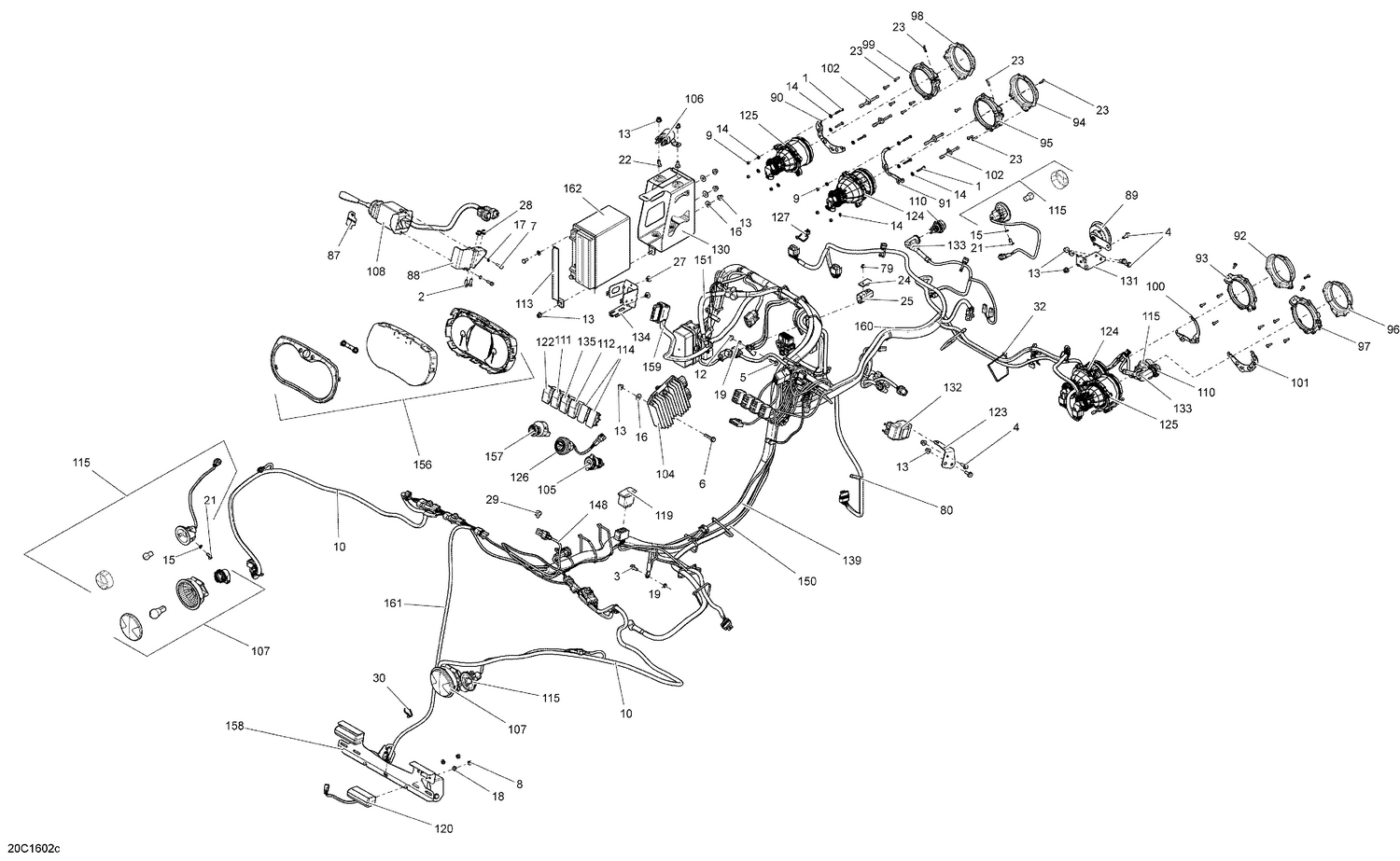

10- Electrical System - XDS-XRS
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207142544 | Hex. Screw M4 X 25 |
| 3 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 6 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 8 | 232061600 | Hex. Nut M6 |
| 9 | 232541414 | Elastic Stop Nut M4 |
| 11 | 232561434 | Elastic Stop Nut M6 |
| 12 | 233061414 | Hex. Flange Nut M6 |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 14 | 234051410 | Flat Washer M5 |
| 16 | 234062670 | Stainless Steel Flat Washer |
| 18 | 234161601 | Lock Washer Helical M6 |
| 19 | 234461608 | External Serrated Lock Washer 6 mm |
| 23 | 250000723 | Phillips Screw K40 X 16 |
| 24 | 270000141 | Clip |
| 25 | 278002704 | Diagnostic Connector |
| 27 | 293150103 | Pop Rivet 3/16" |
| 29 | 293730040 | Mount Dart This part replaces 293730018. |
| 30 | 293750002 | Tie Wrap 142 mm |
| 32 | 293750008 | Tie Wrap 368 mm |
| 79 | 390402400 | Pop Rivet 3/16" |
| 80 | 414115200 | Tie-Rap 180 mm |
| 90 | 710001036 | LH High Light Support |
| 91 | 710001037 | LH Low Light Support |
| 92 | 710001081 | RH Low Front Housing |
| 93 | 710001082 | RH Low Rear Housing |
| 94 | 710001083 | LH Low Front Housing |
| 95 | 710001084 | LH Low Rear Housing |
| 96 | 710001085 | RH High Front Housing |
| 97 | 710001086 | RH High Rear Housing |
| 98 | 710001087 | LH High Front Housing |
| 99 | 710001088 | LH High Rear Housing |
| 100 | 710001094 | RH Low Light Support |
| 101 | 710001115 | RH High Light Support |
| 102 | 710001147 | Setting Screw |
| 104 | 710001191 | Voltage Regulator |
| 105 | 710001248 | DC Outlet |
| 107 | 710001645 | Tail Light Ass'y |
| 107a | 520000758 | Bulb |
| 111 | 710001737 | Interrupteur 4X4 |
| 113 | 710001916 | Battery Holder |
| 114 | 710007173 | Plug Carling This part replaces 710001999. |
| 119 | 710002053 | Switch, Over ride |
| 120a | 219800128 | Bulb |
| 124 | 710002524 | Low Beam Ass'y |
| 124a | 415129249 | Halogen Bulb |
| 125 | 710002525 | High Beam Ass'y |
| 125a | 415129249 | Halogen Bulb |
| 126 | 710002594 | Engine Start Button |
| 133 | 710003269 | Cap Protector |
| 134 | 710003335 | Fuse Holder |
| 135 | 710003541 | Switch PPS Sport |
| 156 | 710004547 | Multifunction Speedometer |
