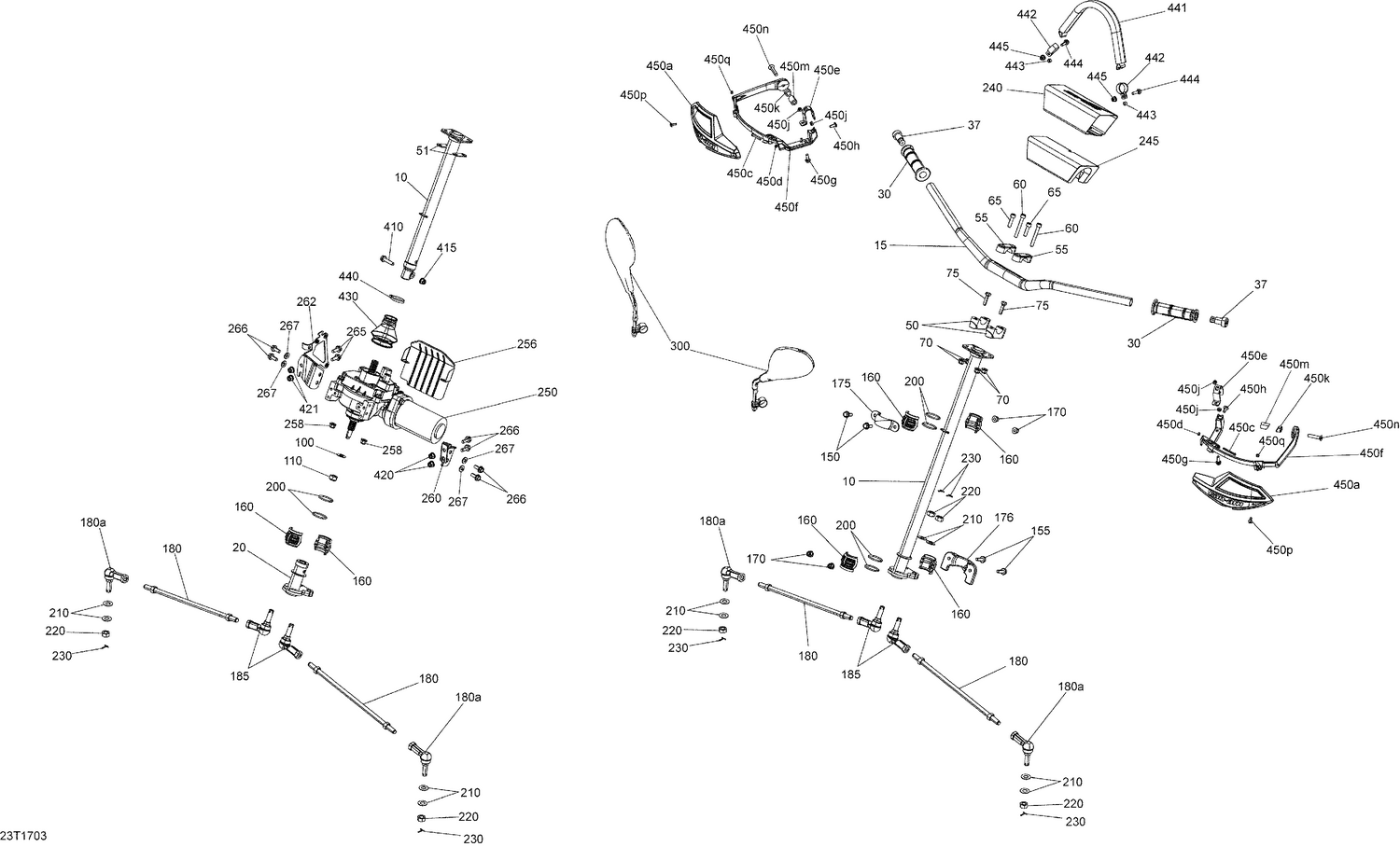

07- Steering - All Models
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 709400493 | Handle Grip |
| 70 | 233281416 | Hex. Elastic Flange Nut M8 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 155 | 207682534 | Hex. Flange Screw M8 X 25 |
| 160 | 709400783 | Spherical Half Bushing |
| 170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 175 | 709400827 | Upper Column Attachment |
| 176 | 709401428 | Column Attachment |
| 180a | 709402303 | LH Ball Joint This part replaces 709401837. |
| 185 | 709402302 | RH Ball Joint This part replaces 709401839. |
| 200 | 293300068 | O-Ring |
| 210 | 706200281 | Hardened Washer This part replaces 250200086. |
| 220 | 250100099 | Nut M12 |
| 230 | 211400013 | Cotter Pin |
| 450c | 205444056 | Socket Head Screw M4 X 40 |
| 450d | 232541414 | Elastic Stop Nut M4 |
| 450e | 715001378 | Air Deflector Support Kit |
| 450f | 715001378 | Air Deflector Support Kit |
| 450g | 207662044 | Hex. Flange Screw M6 X 20 |
| 450h | 250000717 | Torx Head Screw M6 X 16 |
| 450j | 232561600 | Hex. Elastic Stop Nut M6 |
| 450k | 709400161 | Small Bracket |
| 450m | 709400162 | Large Bracket |
| 450n | 205384034 | Socket Head Screw |
| 450p | 250000742 | Torx Screw M5 X 14 |
