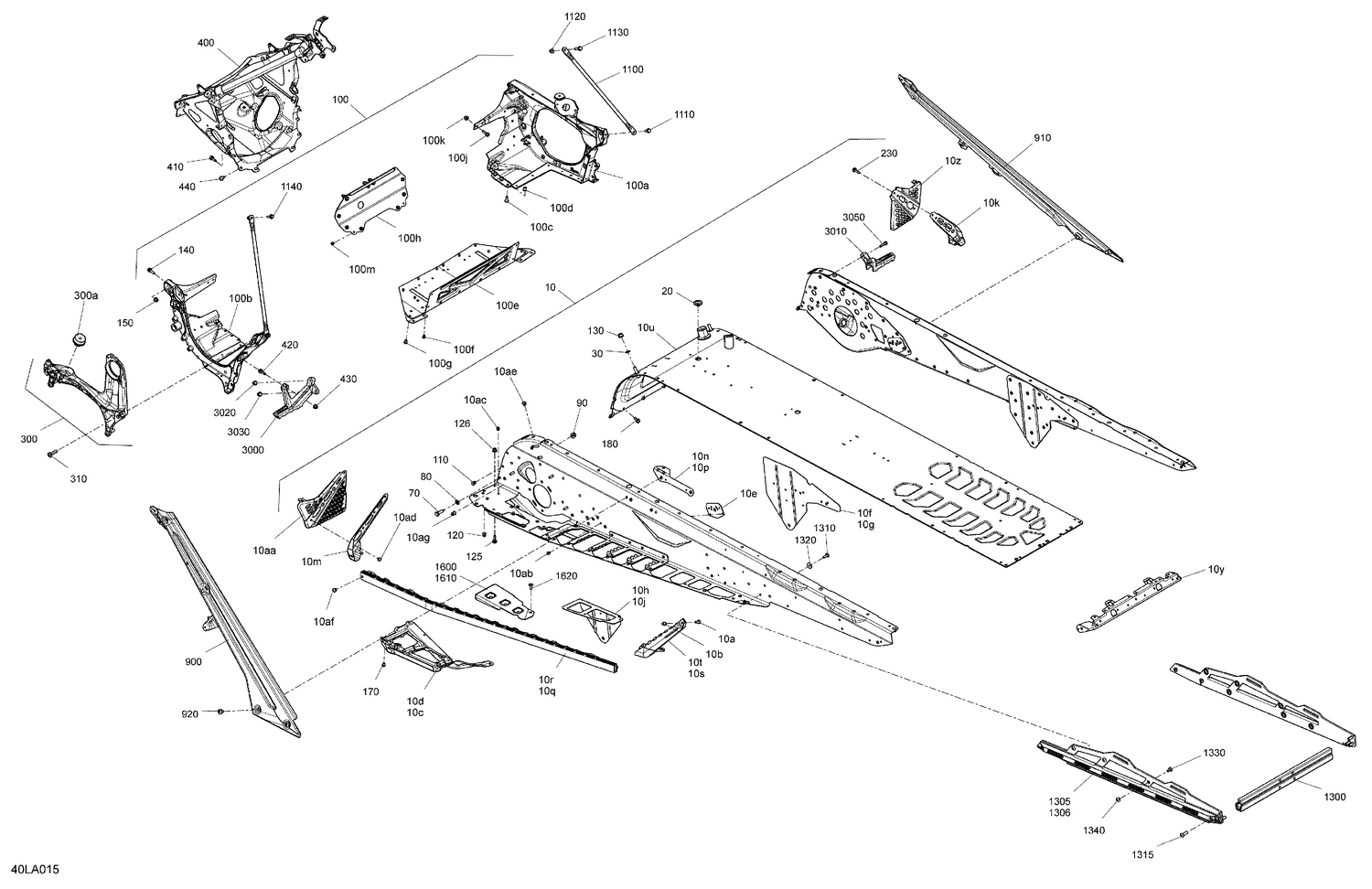

| Ref | Part Number | Description |
|---|
| 10a |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 10aa |
518333007 |
LH Footrest This part replaces 518331556. |
| 10ab |
390909100 |
Avex Rivet |
| 10ac |
390909200 |
Avex Rivet |
| 10ad |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10ae |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10af |
293150174 |
Hemlock Rivet, 6.5 mm |
| 10ag |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 10b |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 10c |
518334115 |
RH Front Chassis Reinforcement This part replaces 518330967. |
| 10d |
518334114 |
LH Front Chassis Reinforcement This part replaces 518330966. |
| 10e |
518330104 |
Front Arm Reinforcement |
| 10f |
518331607 |
LH Rear Arm Support |
| 10g |
518331608 |
RH Rear Arm Support |
| 10h |
518331609 |
LH Rear Support |
| 10j |
518331610 |
RH Rear Support |
| 10k |
518329305 |
RH Reinforcement Footrest |
| 10m |
518329306 |
LH Reinforcement Footrest |
| 10n |
518331744 |
LH Under Chassis Reinforcement |
| 10p |
518331745 |
RH Under Chassis Reinforcement |
| 10q |
518330080 |
RH Roller |
| 10r |
518330079 |
LH Roller |
| 10s |
518330161 |
RH Roller Link |
| 10t |
518330160 |
LH Roller Link |
| 10u |
518334489 |
Radiator Tunnel 146 Ass'y This part replaces 518332553. |
| 10y |
518328990 |
Rear Cap |
| 10z |
518328460 |
Appui-Pied DR |
| 20 |
293730052 |
Black, Plug |
| 30 |
250200146 |
Conical Spring Washer M8 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a |
518332687 |
RH Member Ass'y This part replaces 518331257. |
| 100b |
518334599 |
LH Side Member Ass'y This part replaces 518331254. |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100e |
518332716 |
Bottom Plate |
| 100f |
390909100 |
Avex Rivet |
| 100g |
293450268 |
Insert M5 X 0.8 |
| 100h |
518330100 |
Front Member |
| 100j |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100k |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100m |
390909100 |
Avex Rivet |
| 110 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.5 mm |
| 125 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 126 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 400 |
518334549 |
Chassis Suspension Module Ass'y This part replaces 518330573. |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 420 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 440 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 900 |
518331871 |
Green, LH Member |
| 910 |
518331872 |
Green, RH Member |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 1120 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1130 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1300 |
518332120 |
Grey, Hitch Bumper |
| 1305 |
518332121 |
LH Rear Bumper |
| 1306 |
518332122 |
RH Rear Bumper |
| 1310 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1315 |
250000757 |
Screw-Torx Button Head M8 X 25 S.Gr |
| 1320 |
224061201 |
Flat Washer |
| 1330 |
250000789 |
Torx Truss M6X14 |
| 1340 |
518329469 |
Barrel Nut |
| 1600 |
518330467 |
Black, LH Footrest |
| 1610 |
518330468 |
Black, RH Footrest |
| 1620 |
250000755 |
Torx Screw M6 X 16 |
| 3000 |
518329136 |
Black, Toe-Hold |
| 3010 |
518329138 |
Black, Toe-Hold |
| 3020 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 3030 |
233261466 |
Hex. Flanged Elastic Nut M6 |
