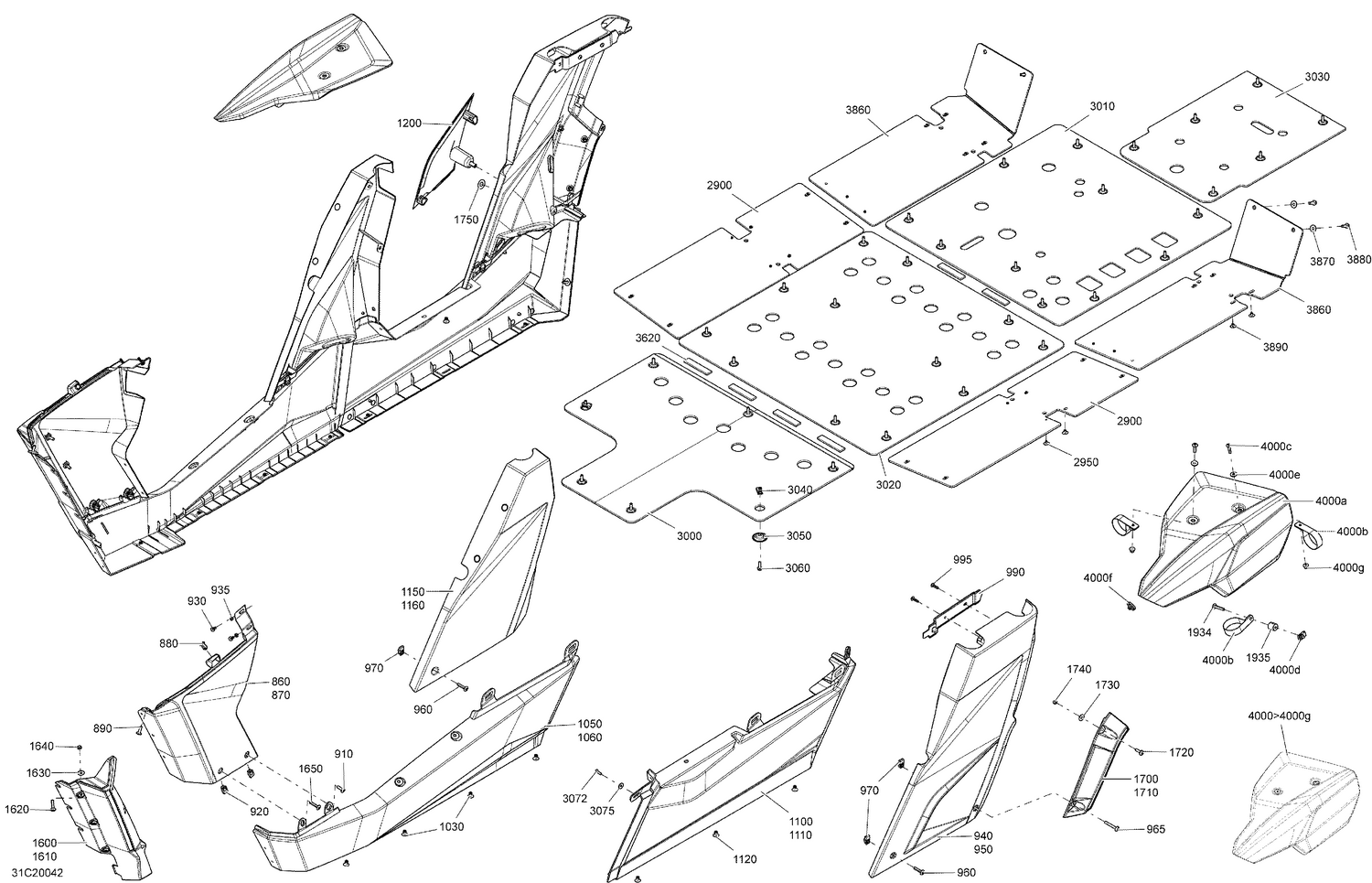

| Ref | Part Number | Description |
|---|
| 860 |
705014512 |
Asphalt Grey, LH Front Body Panel |
| 870 |
705014513 |
Asphalt Grey, RH Front Body Panel |
| 880 |
293150230 |
Tuflok Plastic Rivet |
| 890 |
250000722 |
Torx Screw M6 X 20 |
| 900 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 910 |
250000722 |
Torx Screw M6 X 20 |
| 920 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 930 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 935 |
234051410 |
Flat Washer M5 |
| 940 |
705014510 |
Asphalt Grey, LH Rear Body Panel |
| 950 |
705015409 |
Asphalt Grey, RH Rear Body Panel |
| 960 |
250000843 |
Torx Truss Screw M6 X 30 |
| 965 |
250000748 |
Torx Screw M6 X 45 |
| 970 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 990 |
705007916 |
Support Skid Plate |
| 995 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1030 |
293150104 |
Pop Rivet 3/16" |
| 1050 |
705007035 |
Black, LH Lower Panel |
| 1060 |
705007036 |
Black, RH Lower Panel |
| 1100 |
705005425 |
Black, LH Rear Lower Panel |
| 1110 |
705005426 |
Black, RH Rear Lower Panel |
| 1120 |
293150104 |
Pop Rivet 3/16" |
| 1150 |
705014514 |
Asphalt Grey, LH Central Body Panel |
| 1160 |
705014515 |
Asphalt Grey, RH Central Body Panel |
| 1200 |
705014516 |
Asphalt Grey, Panel Cover |
| 1600 |
705008668 |
Black, LH Lower Mudguard |
| 1610 |
705008669 |
Black, RH Lower Mudguard |
| 1620 |
250000842 |
Stainless, Torx Screw M6 X 30 |
| 1630 |
234062670 |
Stainless Steel Flat Washer |
| 1640 |
232561434 |
Elastic Stop Nut M6 |
| 1650 |
250000842 |
Stainless, Torx Screw M6 X 30 |
| 1700 |
705008670 |
Black, LH Rear Lower Mudguard |
| 1710 |
705008672 |
RH Rear Lower Black Mudguard |
| 1720 |
250000712 |
Torx Screw M6 X 20 |
| 1730 |
234062670 |
Stainless Steel Flat Washer |
| 1740 |
232561434 |
Elastic Stop Nut M6 |
| 1750 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 1934 |
250000749 |
Torx Truss Screw M6 X 50 |
| 1935 |
705007138 |
Roof Spacer Bushing |
| 2900 |
705008421 |
Side Protector Plate |
| 2950 |
293150104 |
Pop Rivet 3/16" |
| 3000 |
705007055 |
Middle Protector Plate |
| 3010 |
705007056 |
Rear Protector Plate |
| 3020 |
705009447 |
Skid Plate |
| 3030 |
705007227 |
Rear Protector Plate |
| 3040 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3050 |
705007171 |
Cup |
| 3060 |
210262050 |
Hexagonal Head Screw |
| 3072 |
250000720 |
Torx Screw K50 X 16 |
| 3075 |
250200025 |
Washer M5 |
| 3620 |
291001932 |
Pad |
| 3860 |
705007038 |
RH Lateral Skid Plate |
| 3870 |
250200097 |
Flat Washer |
| 3880 |
210262050 |
Hexagonal Head Screw |
| 3890 |
293150104 |
Pop Rivet 3/16" |
| 4000a |
705008452 |
Black, LH Top Center Cage Cover |
| 4000a |
705008453 |
Black, RH Top Center Cage Cover |
| 4000b |
705005626 |
Attache en "P", 2" Dia. |
| 4000c |
207662054 |
Hex. Flange Screw M6 X 20 |
| 4000d |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4000e |
234062670 |
Stainless Steel Flat Washer |
| 4000f |
293750008 |
Tie Wrap 368 mm |
