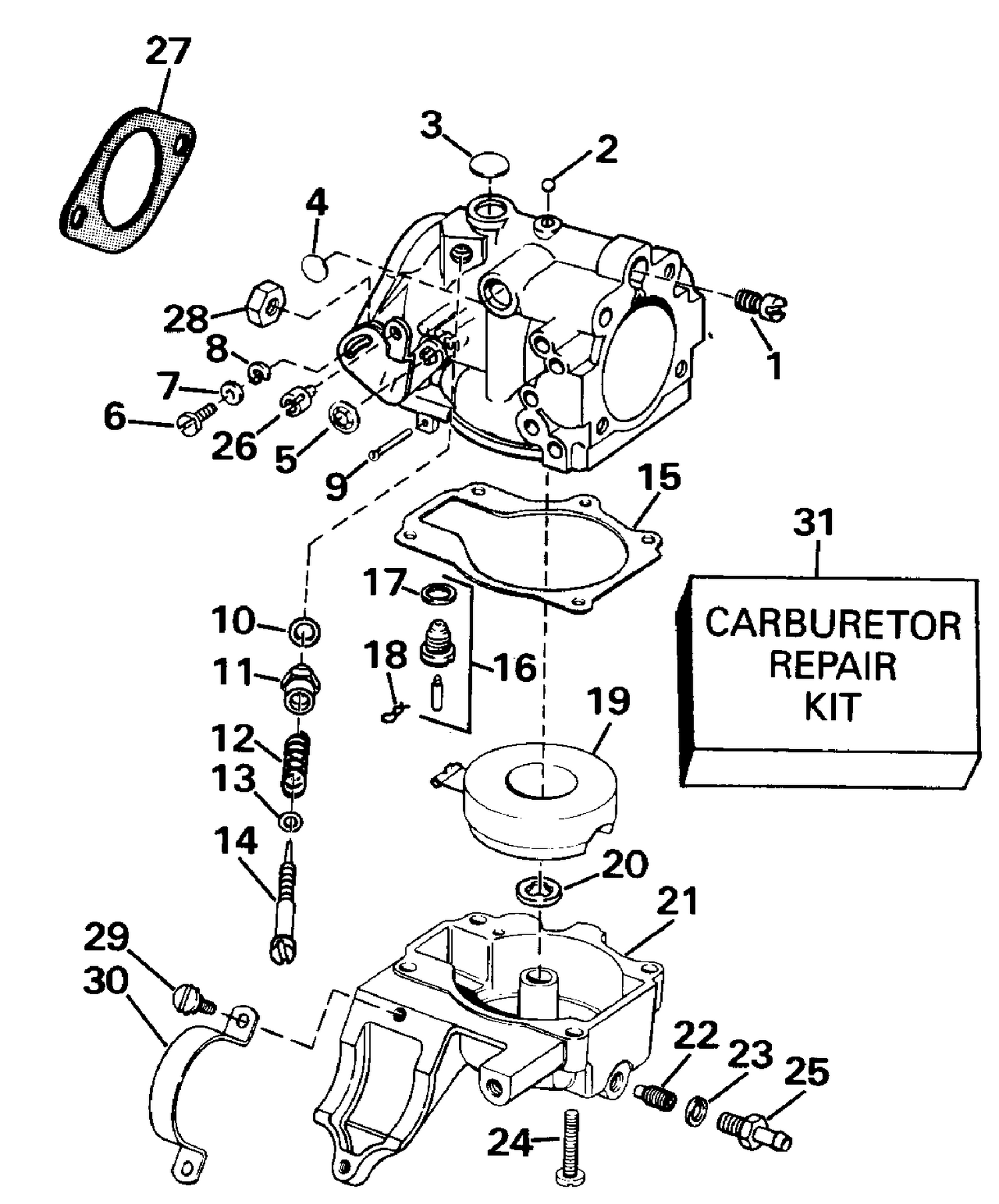

| Ref | Part Number | Description |
|---|
| 18 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 21 |
0439383 |
FLOAT CHAMBER This part replaces 0393131. |
| 22 |
0327541 |
ORIFICE PLUG (#51D) |
| 24 |
0329513 |
SCREW, Float bowl |
| 26 |
0313329 |
LOCKWASHER, Carburetor link |
| 27 |
0325092 |
GASKET |
| 28 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 29 |
0329594 |
SCREW, Cam follower |
| 30 |
0328907 |
COLLIER, amorçage vers support |
| 0432704 |
0439388 |
CARBURETOR ASSEMBLY This part replaces 0432704. |
| 0432705 |
0432705 |
CARBURETOR ASSEMBLY |
| 0433193 |
0433193 |
CARBURETOR ASSEMBLY |
