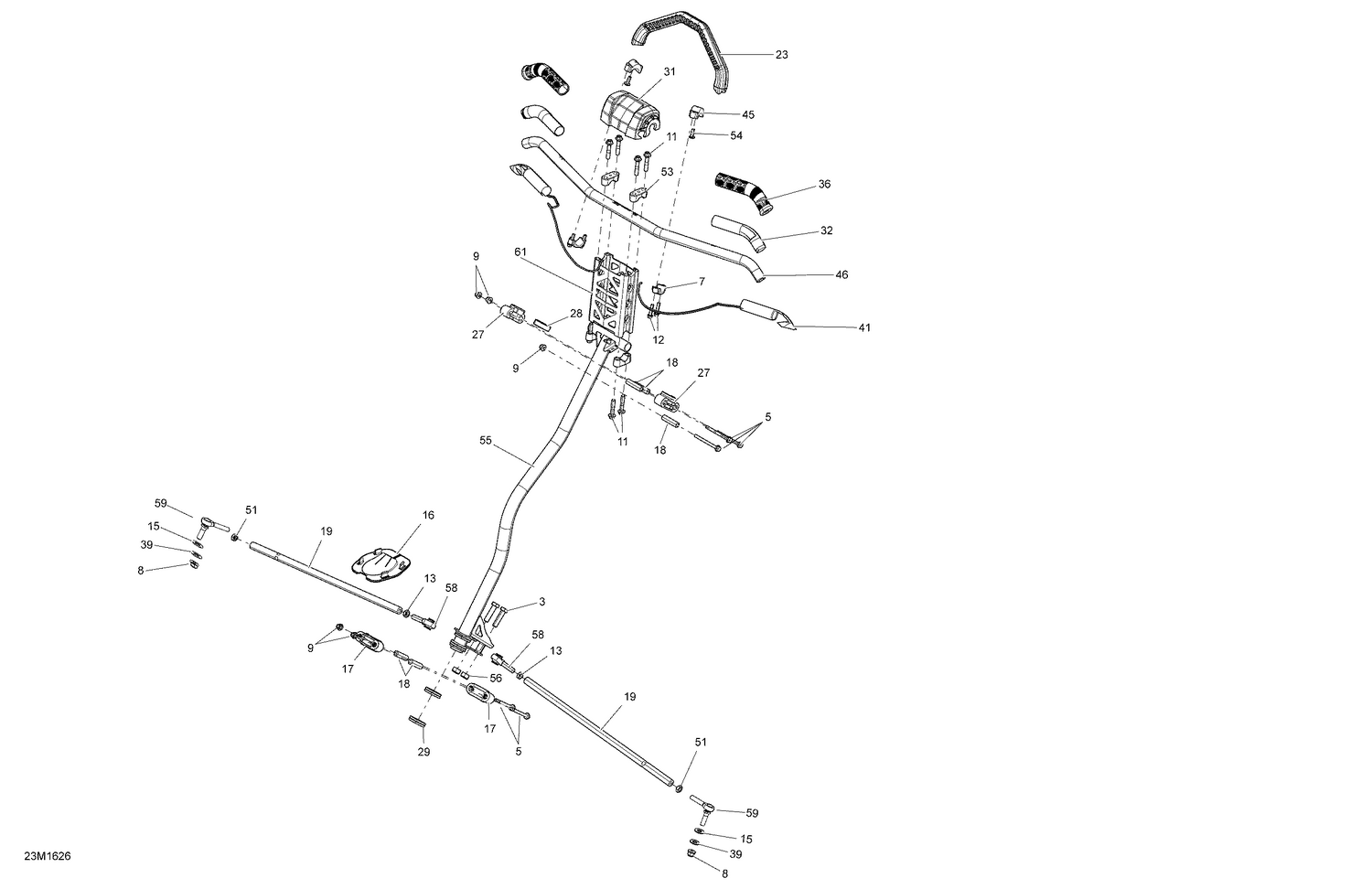

07- Steering - 800R ETEC
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 5 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 7 | 719000049 | Clamps |
| 8 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 9 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 11 | 250000352 | Hex. Flange Screw M8 X 40 |
| 13 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 15 | 503192496 | Washer |
| 16 | 506152163 | Plate |
| 17 | 506152588 | Lower Half-Housing |
| 18 | 506152297 | Housing Bushing |
| 27 | 506152508 | Upper Half-Housing |
| 28 | 506152509 | Upper Anti-Vibration Gasket |
| 29 | 506152518 | Lower Vibration Ring |
| 31 | 506152541 | Deep Black, Steering Pad |
| 32 | 506153176 | Thermal Insulation This part replaces 506152548. |
| 36 | 506152560 | Grip 148mm |
| 39 | 506152582 | Washer |
| 41 | 506152758 | Heating Element 32 Watt 2 Wires |
| 46 | 506152709 | Handle Bar, Non Dyed Clear Anodizing |
| 51 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 53 | 506152751 | Steering Support |
| 55 | 506152962 | Steering Column This part replaces 506152839. |
| 56 | 233601466 | Elastic Locking Nut M10 |
