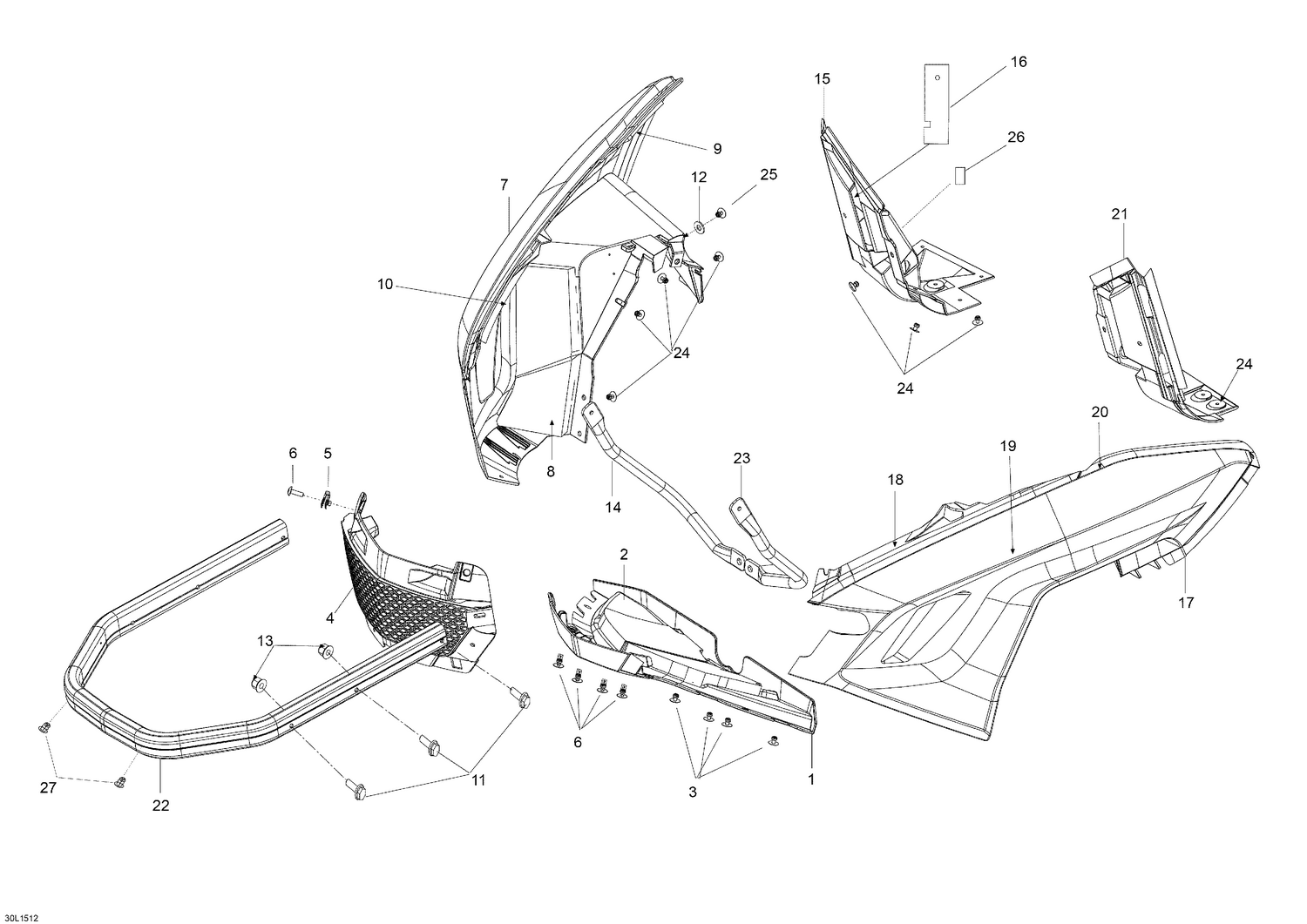

09- Bottom Pan
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502008006 | Black, Front Bottom Pan This part replaces 502007184. |
| 2 | 502007002 | Isolation |
| 3 | 293150103 | Pop Rivet 3/16 |
| 4 | 502007145 | Grill |
| 5 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 6 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 7 | 502007994 | Bottom Pan R.H. This part replaces 502007188. |
| 8 | 502007006 | Isolation |
| 9 | 502007008 | INSULATOR - Call your local BRP dealership |
| 10 | 502007009 | Isolation |
| 11 | 207664044 | Hex. Flange Screw M6 X 40 |
| 12 | 234052490 | WASHER M5 - Call your local BRP dealership |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 14 | 502007015 | Bumber support R.H. |
| 15 | 502007191 | Bottom-pan rear, R.H. |
| 16 | 502007038 | Aluminium foil |
| 17 | 502008000 | Black, LH Bottom Pan Ass'y This part replaces 502007196. |
| 18 | 502007003 | Isolation |
| 19 | 502007004 | INSULATOR - Call your local BRP dealership |
| 20 | 502007005 | INSULATOR - Call your local BRP dealership |
| 21 | 502008012 | LH Rear Bottom Pan This part replaces 502007195. |
| 22 | 502007428 | Bumber, Orange |
| 23 | 502007014 | Bumber support L.H. |
| 24 | 293150104 | Pop Rivet 3/16 |
| 25 | 390402200 | Pop Rivet 3/16 |
| 26 | 44110 | Aluminum Foil |
