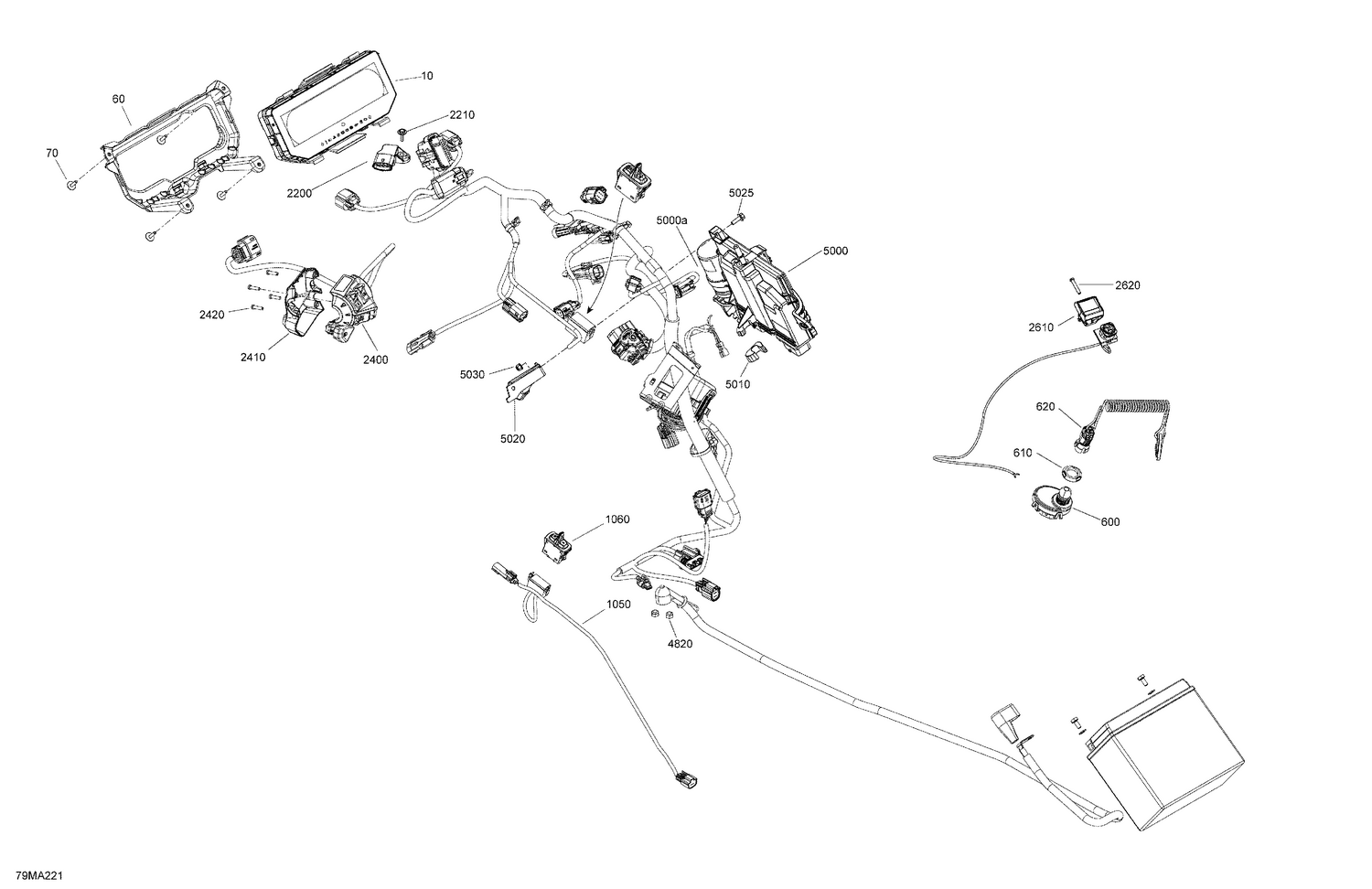

08- Electric - Upper Section
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178227 | Multifunction Gauge Full Size Mono |
| 60 | 515178965 | Gauge Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 1050 | 515178608 | Seat Wiring Harness |
| 1060 | 515179490 | Heated Seat Switch This part replaces 515178502. |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2400 | 515178196 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 4820 | 232561434 | Elastic Stop Nut M6 |
| 5000a | 515177272 | Capacitor |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178159 | Module Support |
| 5025 | 207551634 | Hex. Flange Screw, Scotch Grip |
