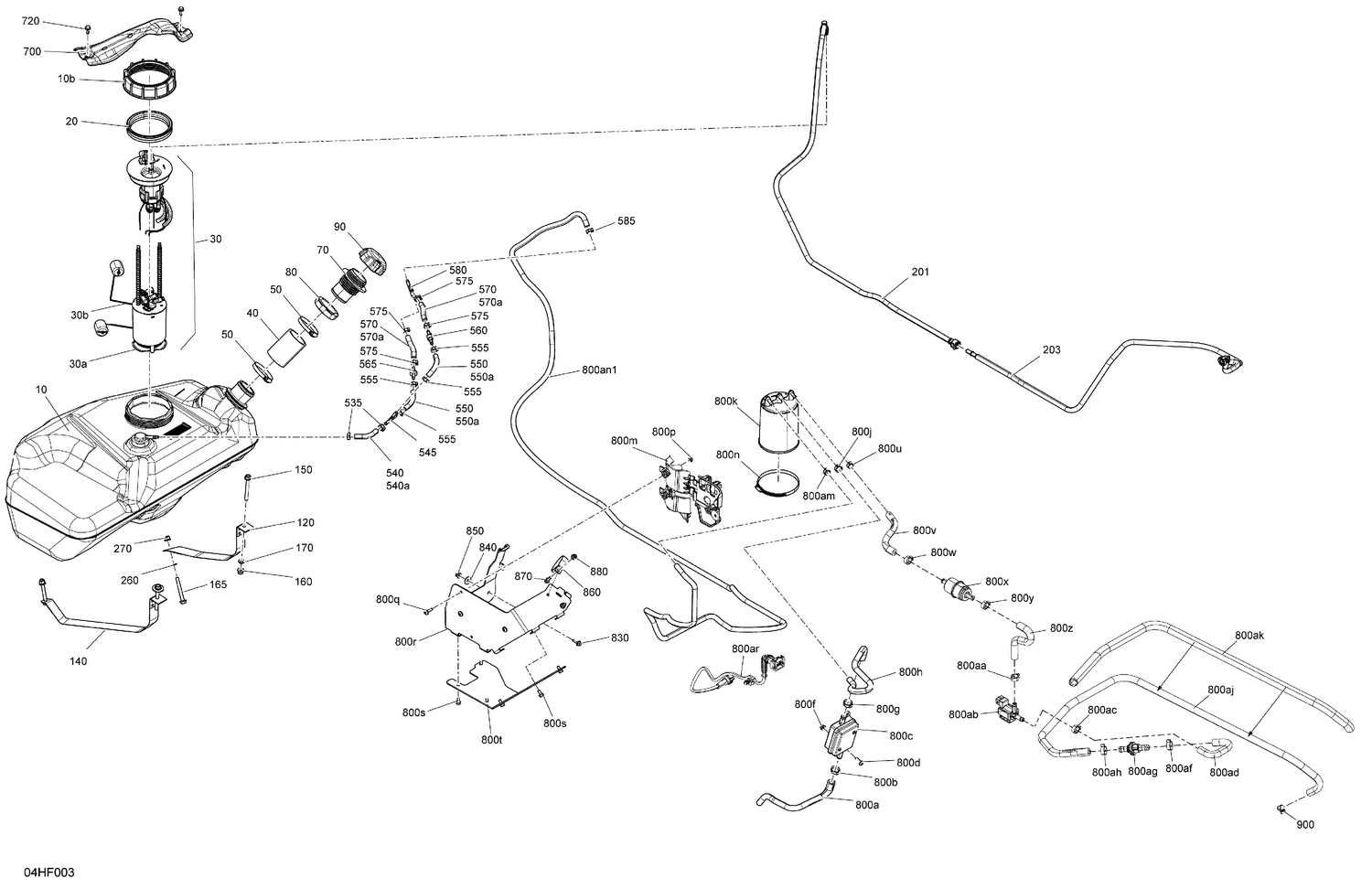

02- Engine - Fuel
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250100062 | Special Nut M130 |
| 20 | 293250514 | Pump Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900424 | Fuel Sender |
| 40 | 709001697 | Filler Neck Hose |
| 50 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 293600206 | Fuel Filler Neck Nut |
| 90 | 709000868 | Fuel Cap |
| 120 | 709000910 | Fuel Tank Strap |
| 140 | 709000911 | Fuel Tank Strap |
| 150 | 250001199 | Carriage Bolt M8 X 75 |
| 160 | 233281414 | Hex. Flange Elastic Nut M8 |
| 165 | 207687044 | Hex. Flange Screw M8 X 70 |
| 170 | 234081410 | Flat Washer 8 mm |
| 201 | 709000987 | Formed Hose |
| 203 | 709001377 | Fuel Tank Hose |
| 260 | 234081410 | Flat Washer 8 mm |
| 270 | 233281414 | Hex. Flange Elastic Nut M8 |
| 535 | 293650042 | Oetiker Clamp |
| 540a | 219704611 | Hose 6.35Mm 5000Mm Long |
| 545 | 293710059 | Y-Fitting This part replaces 293710222. |
| 550a | 219704611 | Hose 6.35Mm 5000Mm Long |
| 555 | 293650042 | Oetiker Clamp |
| 560 | 513034263 | Check Valve |
| 565 | 275501246 | Check Valve |
| 570a | 219704611 | Hose 6.35Mm 5000Mm Long |
| 575 | 293650042 | Oetiker Clamp |
| 580 | 293710059 | Y-Fitting This part replaces 293710222. |
| 585 | 293650042 | Oetiker Clamp |
| 700 | 707901204 | Connector Guard |
| 720 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 800a | 709000869 | Formed Hose |
| 800aa | 293650047 | Crimp Clamp, 15.3-706R |
| 800ab | 709001449 | Purge Valve |
| 800ac | 293650047 | Crimp Clamp, 15.3-706R |
| 800ad | 709001568 | Charcoal Canister Hose |
| 800af | 293650053 | Crimp Clamp |
| 800ag | 275500941 | Check Valve |
| 800ah | 293650053 | Crimp Clamp |
| 800aj | 219704612 | Hose 3000Mm Long |
| 800ak | 219704408 | Tubing 16 Mm 1000Mm Long |
| 800am | 293650046 | Oetiker Clamp |
| 800an1 | 219704611 | Hose 6.35Mm 5000Mm Long |
| 800ar | 710009859 | Wiring Harness Adaptor |
| 800b | 293650186 | Oetiker Clamp |
| 800c | 709000524 | Air Filter |
| 800d | 250000712 | Torx Screw M6 X 20 |
| 800f | 233261494 | Hex. Flange Elastic Nut M6 |
| 800g | 293650186 | Oetiker Clamp |
| 800h | 709000870 | Formed Hose |
| 800j | 293650053 | Crimp Clamp |
| 800k | 709001673 | Charcoal Canister This part replaces 709001294. |
| 800m | 709001498 | Charcoal Canister Support |
| 800n | 293650054 | Tridon Clamp |
| 800p | 232561600 | Hex. Elastic Stop Nut M6 |
| 800q | 250000712 | Torx Screw M6 X 20 |
| 800r | 709001538 | Primary Guard Support |
| 800s | 210261250 | Hex. Flange Screw M6 X 12 |
| 800t | 709000956 | Secondary Support |
| 800u | 293650042 | Oetiker Clamp |
| 800v | 709001496 | Charcoal Canister Hose |
| 800w | 293650047 | Crimp Clamp, 15.3-706R |
| 800x | 513034047 | Fuel Filter |
| 800y | 293650047 | Crimp Clamp, 15.3-706R |
| 800z | 709001497 | Charcoal Canister Hose |
| 830 | 207662054 | Hex. Flange Screw M6 X 20 |
| 840 | 250200162 | Flat Washer M6.6 X 22 |
| 850 | 233261494 | Hex. Flange Elastic Nut M6 |
| 860 | 293850132 | Open Clamp |
| 870 | 207662054 | Hex. Flange Screw M6 X 20 |
| 880 | 233261494 | Hex. Flange Elastic Nut M6 |
