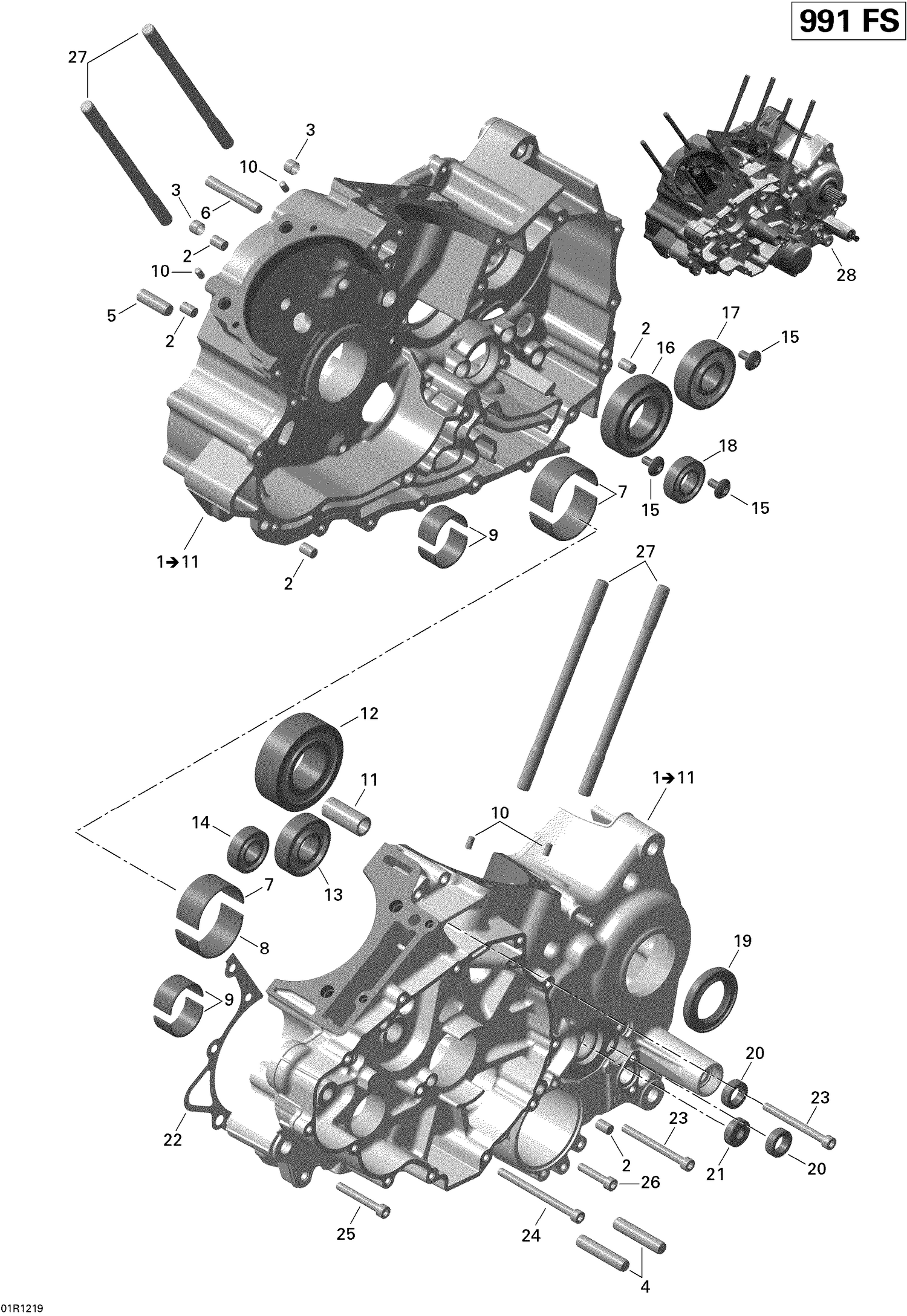

01- Crankcase
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420929501 | DOWEL TUBE - Call your local BRP dealership This part replaces 420929500. |
| 4 | 420229302 | Location Pin 10 M6x50 |
| 5 | 420929930 | PIN, M6 X 50 - Call your local BRP dealership |
| 6 | 420229385 | PIN, M6 X 55 - Call your local BRP dealership |
| 7 | 420233745 | HALF BUSHING - Call your local BRP dealership |
| 7 | 420233746 | Plain Bearing, Red |
| 7 | 420233748 | Plain Bearing,Yellow |
| 8 | 420233740 | HALF BUSHING - Call your local BRP dealership |
| 8 | 420233741 | Plain Bearing, Red |
| 8 | 420233743 | Plain Bearing, Yellow |
| 9 | 420233711 | Plain Bearing, Blue |
| 9 | 420233820 | Plain Bearing, Red |
| 9 | 420233822 | HALF BUSHING - Call your local BRP dealership |
| 10 | 420929650 | Drive Pin 5 X 10 |
| 11 | 420229450 | BOLT - Call your local BRP dealership |
| 12 | 420832315 | Ball Bearing |
| 13 | 420932677 | Ball Bearing |
| 14 | 420932290 | Ball Bearing |
| 15 | 420241537 | Hex Flat Head Screw M6 X 13 T30 This part replaces 420241535. |
| 16 | 420932585 | BALL BEARING - Call your local BRP dealership |
| 17 | 420832144 | BALL BEARING - Call your local BRP dealership |
| 18 | 420232625 | Ball Bearing |
| 19 | 420831185 | Oil Seal |
| 20 | 420250455 | Oil Seal |
| 21 | 420631910 | Oil Seal |
| 22 | 420430630 | Gasket |
| 23 | 420241263 | Allen Screw This part replaces 420241261. |
| 24 | 420241503 | ALLEN SCREW, M6 X 80 - Call your local BRP dealership This part replaces 420241501. |
| 25 | 205064544 | SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership |
| 26 | 205063044 | Socket Head Screw M6 X 30 |
| 27 | 420241580 | Stud |
