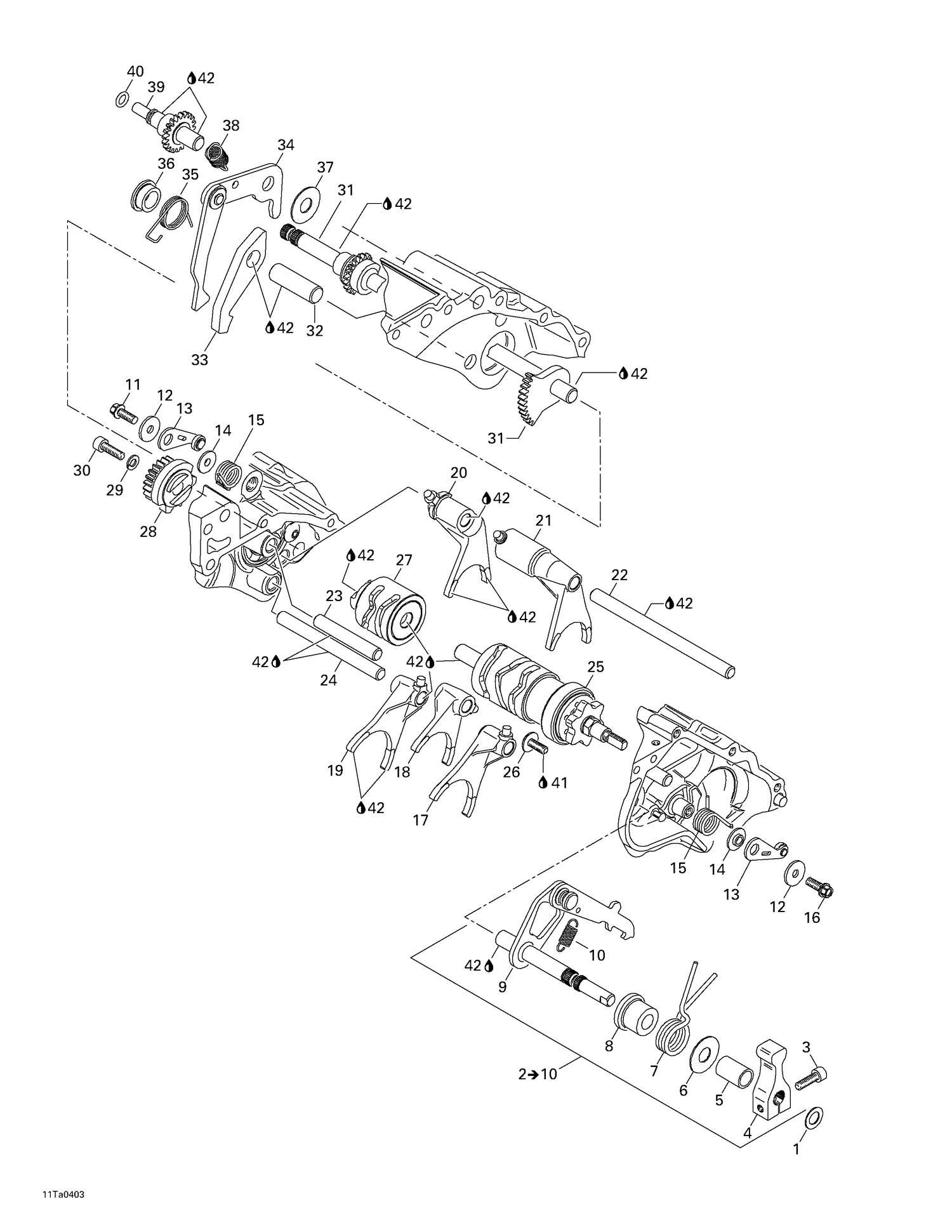

| Ref | Part Number | Description |
|---|
| 1 |
420627100 |
THRUST WASHER - Call your local BRP dealership |
| 3 |
205062544 |
Socket Head Screw M6 X 25 |
| 4 |
711257090 |
Gear Shift Lever |
| 5 |
711247020 |
Distance Sleeve |
| 6 |
420227980 |
THRUST WASHER - Call your local BRP dealership This part replaces 711227980. |
| 7 |
711239084 |
Shaft Spring |
| 8 |
711247050 |
Collar Sleeve |
| 9 |
711220536 |
Shift Shaft with Pawl Ass'y |
| 10 |
711239540 |
Tension Spring |
| 11 |
420241751 |
Hex. Flange Screw M6 X 16 |
| 12 |
Not |
Available As Spare Part - Washer |
| 13 |
703500189 |
INDEX LEVER KIT - Call your local BRP dealership |
| 14 |
420227710 |
BUSHING - Call your local BRP dealership |
| 15 |
420239560 |
INDEX LEVER SPRING - Call your local BRP dealership |
| 16 |
420241751 |
Hex. Flange Screw M6 X 16 |
| 17 |
420258402 |
Shift Fork |
| 18 |
420258412 |
Shift Fork |
| 19 |
420258392 |
Shift Fork |
| 20 |
420258424 |
Shift Fork |
| 21 |
420258434 |
SHIFT FORK - Call your local BRP dealership |
| 22 |
420257080 |
GEAR SHIFT ROD - Call your local BRP dealership |
| 23 |
420229475 |
Needle Pin This part replaces 420229470. |
| 24 |
420229480 |
Cylindrical Pin M10 X 100 |
| 25 |
420257107 |
SHIFT DRUM ASS'Y - Call your local BRP dealership |
| 26 |
420241531 |
SCREW M6 X 13 - Call your local BRP dealership |
| 27 |
420257111 |
Shift Drum |
| 28 |
420257130 |
INDEX GEAR - Call your local BRP dealership |
| 29 |
420445331 |
Lock Washer |
| 30 |
205062544 |
Socket Head Screw M6 X 25 |
| 31 |
420220585 |
Shift Shaft Ass'y |
| 32 |
420220600 |
SHAFT - Call your local BRP dealership |
| 33 |
420258621 |
PARK LOCKING LEVER - Call your local BRP dealership |
| 34 |
420258475 |
Actuating Lever |
| 35 |
420239550 |
HELICAL SPRING - Call your local BRP dealership |
| 36 |
420247040 |
COLLAR SLEEVE - Call your local BRP dealership |
| 37 |
420227980 |
THRUST WASHER - Call your local BRP dealership |
| 38 |
420239591 |
TENSION SPRING - Call your local BRP dealership |
| 39 |
420220545 |
INDICATOR SHAFT - Call your local BRP dealership |
| 40 |
420430800 |
O-Ring |
| 41 |
293800060 |
Loctite 243, 10 ml |
