Parts Catalog

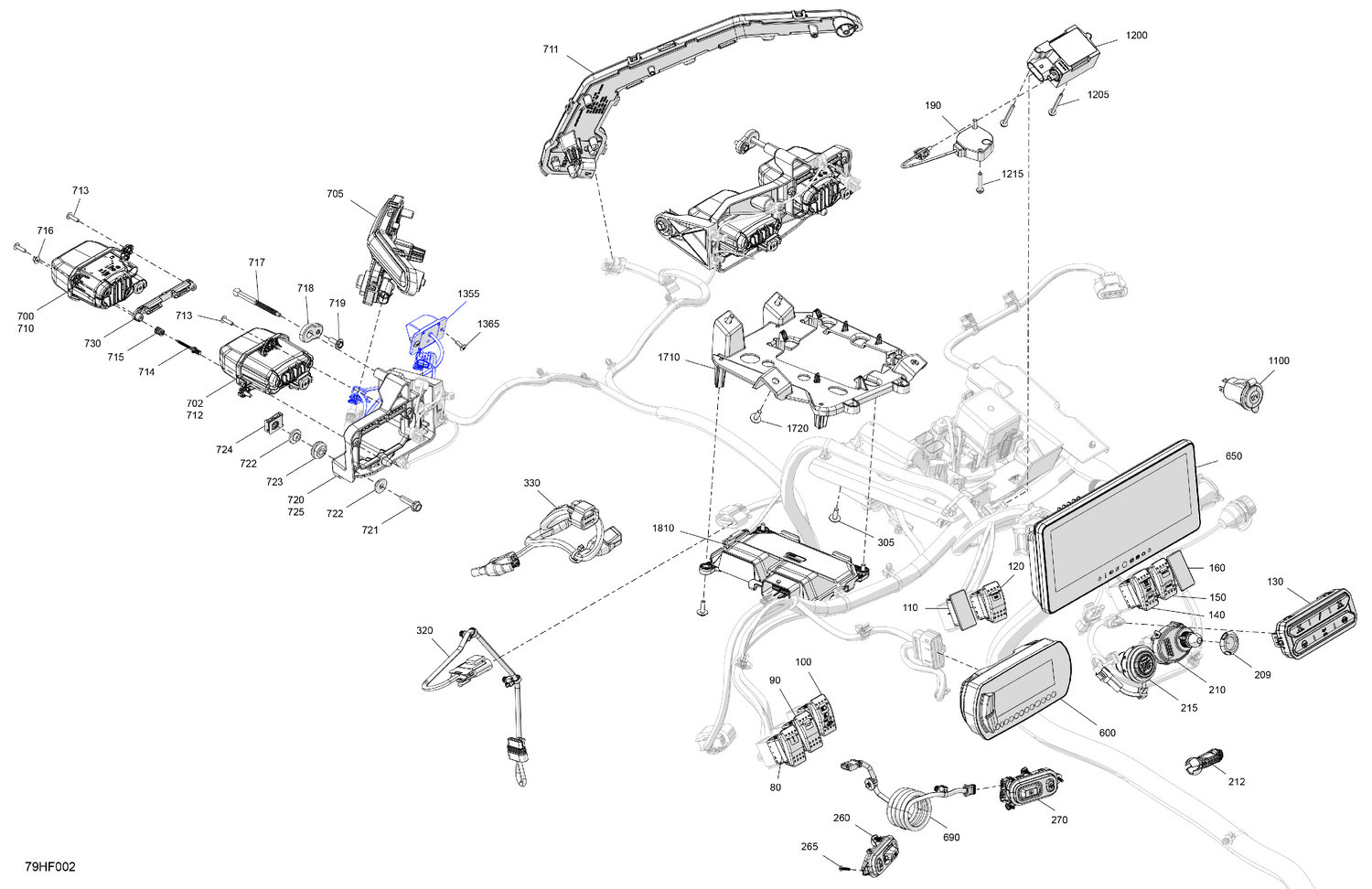

08- Electric - Front Section

Parts (50)

Ref	Part Number	Description
80	710002052	Switch Winch
90	710007173	Plug Carling
100	710007022	Headlights Switch
110	710007173	Plug Carling
120	710002053	Switch, Over ride
130	710010056	Multifunction Switch
140	710006040	Differential Switch
150	710006558	Differential Mode Switch
160	710007173	Plug Carling
190	515179821	Radio Frequency Antenna
209	278004274	Specialized Nut
210	710008832	Terminal DESS CAN
212	710004964	Grey Key RFID
215	710005213	Start-Stop Button
260	710009446	LH Multifunction Switch
265	250001234	Screw Plastite Torx K30 X 12
270	710010681	RH Multifunction Switch
305	250000959	Screw PT Type K-50 X 16
320	710005291	Cable Throttle Pedal
330	710006807	Front Differential Wiring Harness
600	710008296	Multifunction Compact Gauge
650	710010375	Multifunction Gauge 10
690	710008062	Steering Wheel Wiring Harness
700	710008088	Low Beam Light
702	710006910	HIgh Beam Light
705	710004994	LH Signature Beam
710	710008088	Low Beam Light
711	710004995	RH Signature Beam
712	710006910	HIgh Beam Light
713	250000759	Torx Truss Pt K40 X 16
714	517309133	Threaded Rod
715	517309058	Compression Spring
716	517309134	Specialized Nut
717	710005837	Ajustment Screw
718	293900157	Ball Socket
719	250000959	Screw PT Type K-50 X 16
720	710010932	Support_Headlight LH
721	207662554	Hex. Flange Screw M6 X 25
722	710004749	Shoulder Bushing
723	293720130	Overmolded Grommet
724	250100208	Panel Nut M6 X 1.0
725	710010934	Support_Headlight RH
730	517309049	Support Pivot
1200	515179191	Radio Frequency Module
1205	241154540	Hex. Screw K50 X 45
1215	250000680	Hex. Flange Screw K50 X 25
1355	710007892	Camera
1365	250000577	Torx Truss Screw K40 X 12
1710	710010112	Multi Purpose Support
1720	250000959	Screw PT Type K-50 X 16
