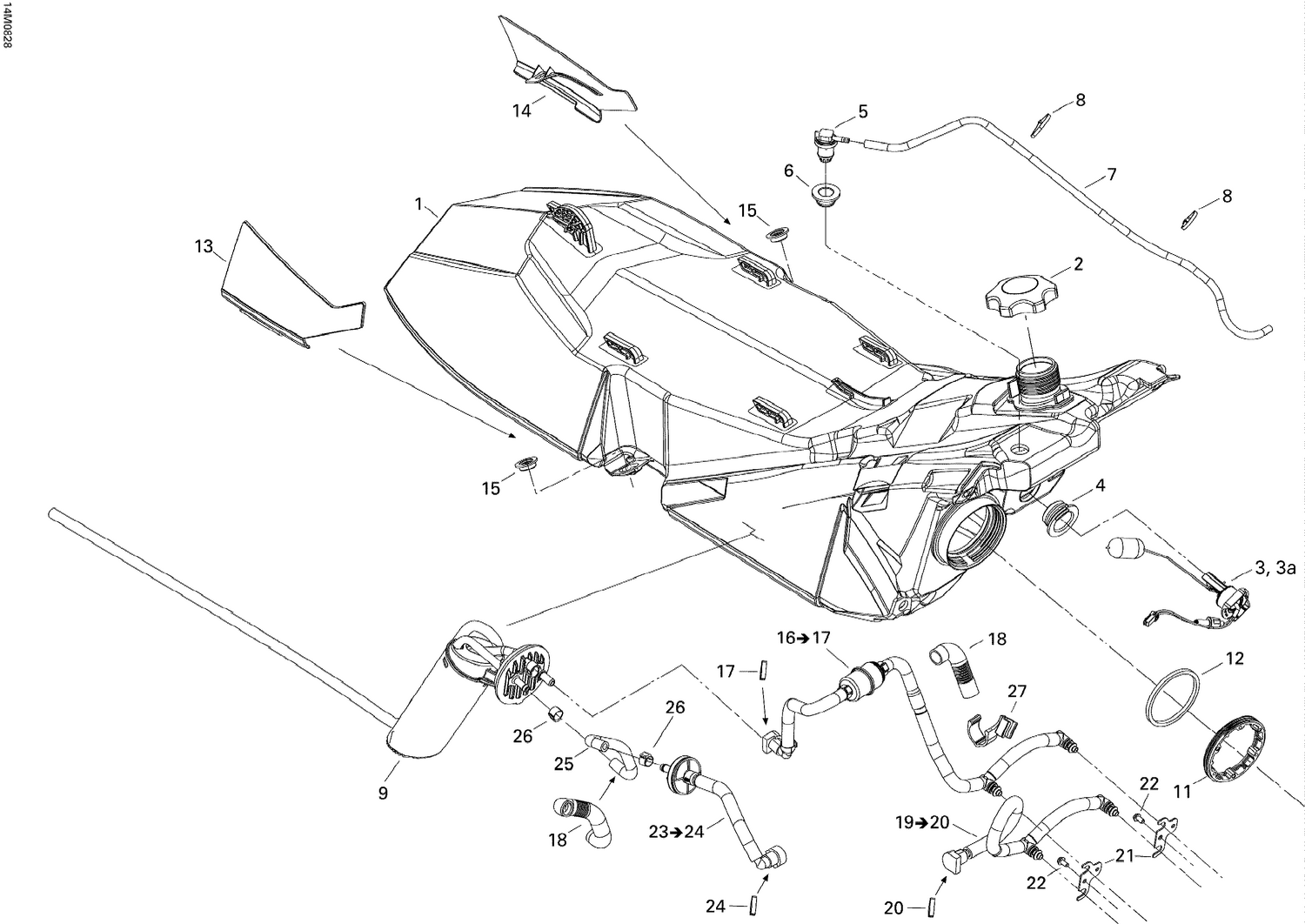

02- Fuel System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033514 | Fuel Tank |
| 2 | 513033025 | Fuel Tank Cap |
| 3 | 513033958 | Sensor Level Fuel This part replaces 513033168. |
| 3a | 710001995 | Fuse, 0.5 Ampère |
| 4 | 513033193 | GROMMET - Call your local BRP dealership |
| 5 | 513033842 | Check Valve This part replaces 513033188. |
| 6 | 513033596 | Grommet This part replaces 513033189. |
| 7 | 219704410 | Polyurethane Hose 10000Mm Long |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 513033643 | Fuel Pump Ass'y This part replaces 513033434. |
| 11 | 513033180 | Ring |
| 12 | 513033334 | Gasket |
| 13 | 513033418 | RH Cap |
| 14 | 513033419 | LH Cap |
| 15 | 513033326 | Shoulder Bushing |
| 17 | 513033135 | Locking Clip |
| 18 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 20 | 513033135 | Locking Clip |
| 21 | 513033542 | Bracket This part replaces 513033142. |
| 22 | 207551044 | Hex. Flange Screw M5 X 10 |
| 24 | 513033135 | Locking Clip |
| 25 | 513033544 | FORMED HOSE - Call your local BRP dealership This part replaces 513033166. |
| 26 | 293650047 | Crimp Clamp, 15.3-706R |
