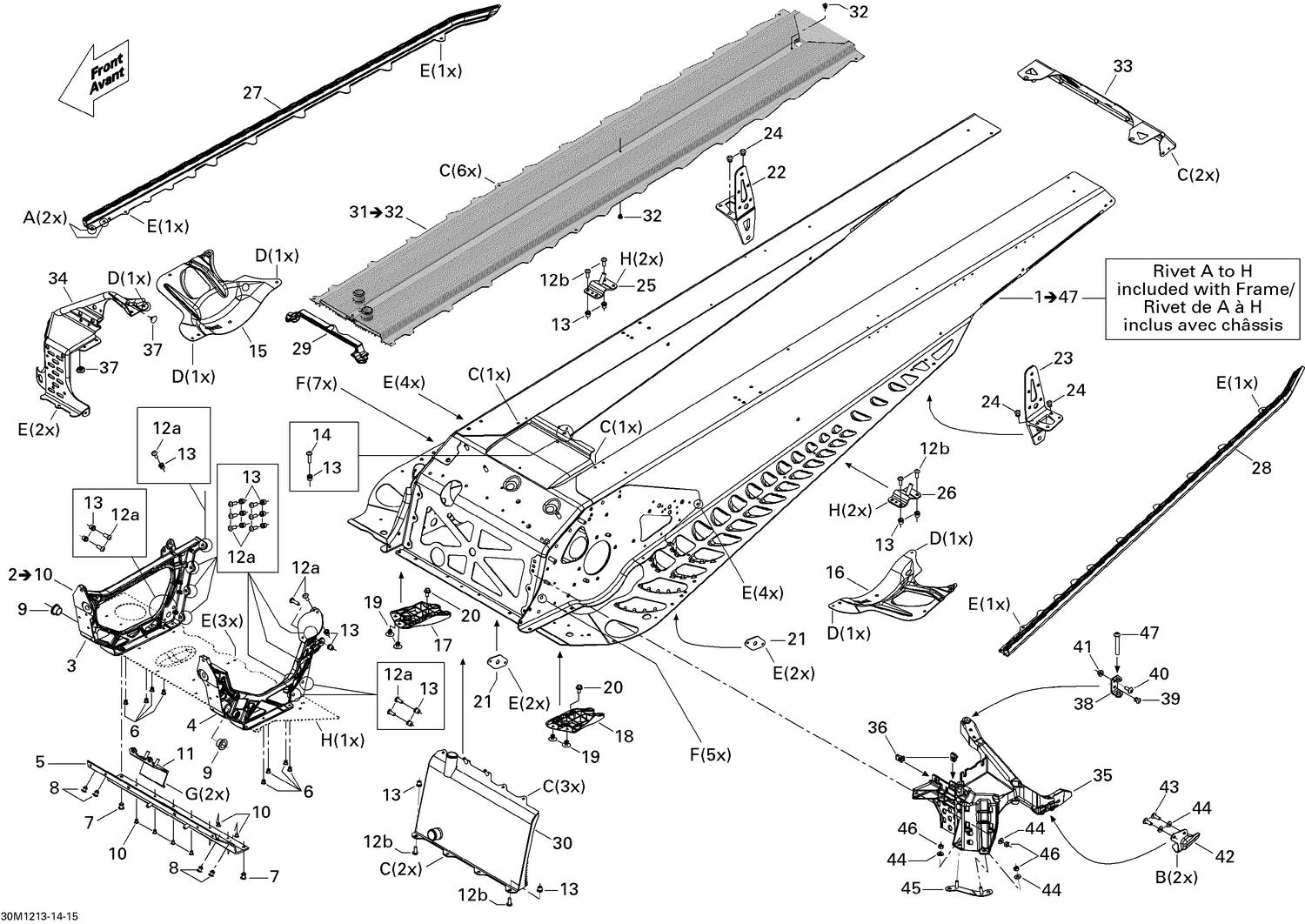

09- Frame
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| A | 390402300 | Pop Rivet 3/16" |
| B | 293150194 | Interlock Rivet 3/16'' |
| C | 390909200 | Avex Rivet |
| D | 390909100 | Avex Rivet |
| E | 293150144 | Stavex Rivet |
| F | 293150146 | Henrob Rivet |
| G | 293150119 | Hemlock Rivet, 6.5 mm |
| 3 | 518326795 | RH Member |
| 4 | 518326796 | LH Member |
| 5 | 518326198 | Front Member |
| 6 | 293150144 | Stavex Rivet |
| 7 | 293150120 | Hemlock Rivet 6.5 mm |
| 8 | 293150119 | Hemlock Rivet, 6.5 mm |
| 9 | 505072690 | Leg Bushing |
| 10 | Not | Available As Spare Part - Rivet |
| 11 | 518325943 | MAG Engine Support |
| 12a | 207662044 | Hex. Flange Screw M6 X 20 |
| 12b | 207661644 | Hex. Flange Screw M6 X 16 |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 14 | 207662044 | Hex. Flange Screw M6 X 20 |
| 15 | 518324874 | RH Reinforcement |
| 16 | 518324875 | LH Reinforcement |
| 17 | 518325782 | RH Deflector, Black Polypropylene |
| 18 | 518325783 | LH Deflector, Black Polypropylene |
| 19 | 293150104 | Pop Rivet 3/16" |
| 20 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 21 | 518326647 | Reinforcement Plate |
| 22 | 518324976 | RH Suspension Bracket |
| 23 | 518324977 | LH Suspension Bracket |
| 24 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 25 | 518325973 | RH Rear Base |
| 26 | 518325974 | LH Rear Base |
| 27 | 518325159 | RH ROLLER - Call your local BRP dealership |
| 28 | 518325160 | LH Roller |
| 29 | 518326656 | Seal |
| 30 | 518326485 | Front Radiator |
| 32 | 293150144 | Stavex Rivet |
| 33 | 518327105 | Rear Cap This part replaces 518325421. |
| 34 | 518328938 | RH Stirup This part replaces 518326216. |
| 35 | 518326820 | LH Stirup |
| 36 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 37 | 293730042 | Full Moon Dart 5 mm |
| 38 | 518326961 | U-Attach |
| 39 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 40 | 250000534 | Tork Screw M6 X 16 |
| 41 | 233061414 | Hex. Flange Nut M6 |
| 42 | 518326960 | Support |
| 43 | 250000536 | Tork Screw M6 X 18 |
| 44 | 250200039 | Flat Washer |
| 45 | 518326986 | Attach |
| 46 | 232561414 | Elastic Stop Nut M6 |
| 47 | 250000535 | Torx Screw M8 X 55 |
