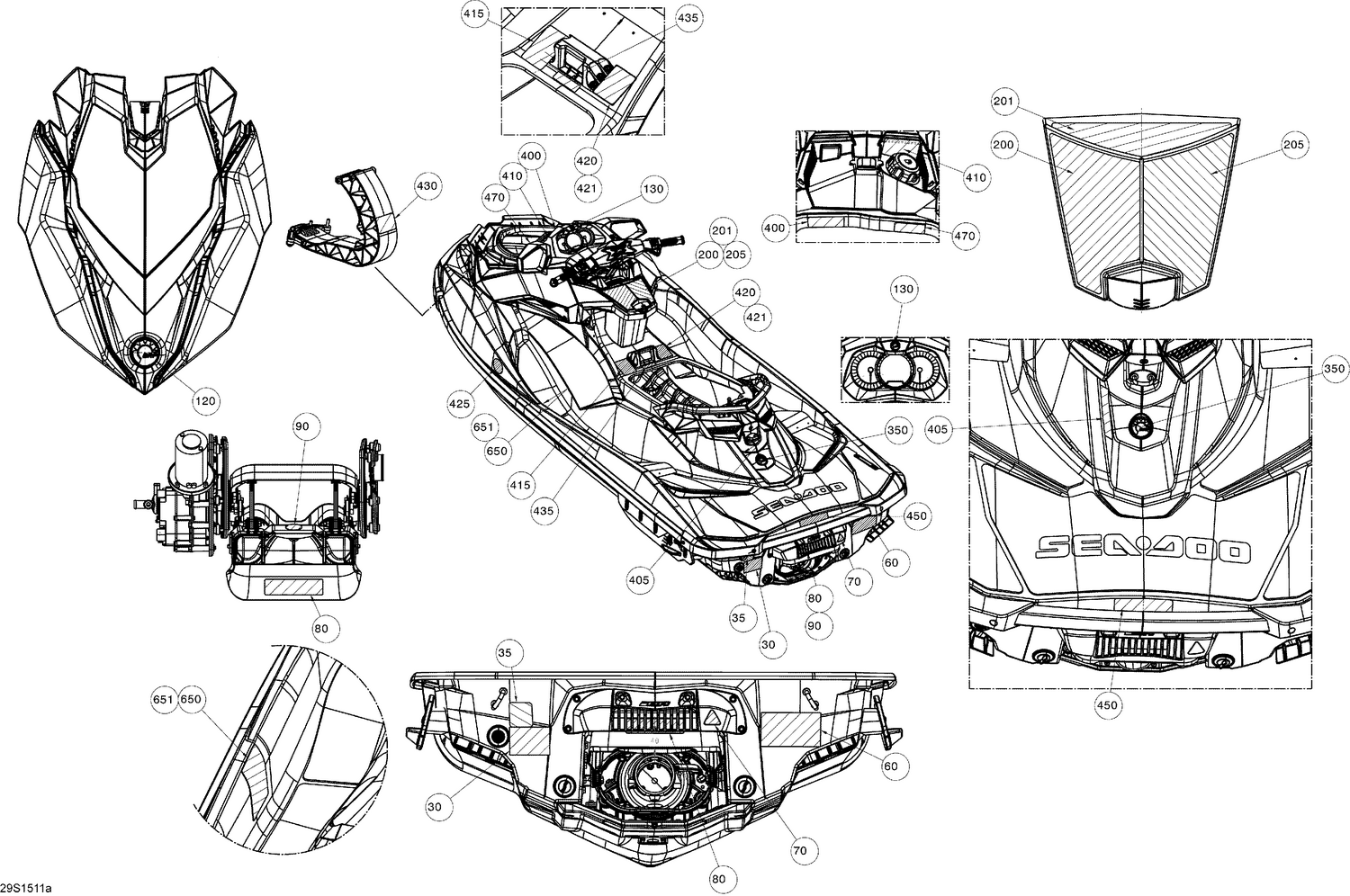

09- Decals _29S1511a

09- Decals _29S1511a

Parts (24)

RefPart NumberDescription
30 219903301 Warning Decal, Tip Over/Heat
35 219904387 Notice Decal, Rince
60 Not Available As Spare Part - Pending Label
70 219903077 Decal Hand, Risk Of Injury
80 219903078 Warning Decal, Risk Of Injury
90 219904804 Pictogram Foot Gate Label This part replaces 219903066.
120 516008739 BRP Logo 68mm This part replaces 704904613.
130 516006224 BRP Logo 20MM x 2MM This part replaces 704904616.
200 219904438 Warning Label
201 219904040 Warning Label Sport Model, English
205 219903508 RH Warning Label, English
350 516008738 BRP Logo 48mm This part replaces 704904612.
400 219903082 Warning Decal, Battery
405 219903510 DECAL, EXEMPTION - Call your local BRP dealership
410 219903501 Warning Decal, Fuel
415 219903184 CAUTION ENGINE OIL - Call your local BRP dealership
420 Not Available As Spare Part - EPA Decal, 2012
421 Not Available As Spare Part - Label Protector
425 219902679 Decal, Emission Control
430 219903502 Warning Decal, Storage
435 219903132 Caution Decal, Security
450 219904254 DECAL WARNING, RE-BOARD - Call your local BRP dealership
470 219903127 Notice Decal, Gasoline-Octane
650 Not Available As Spare Part - Conformity Decal
