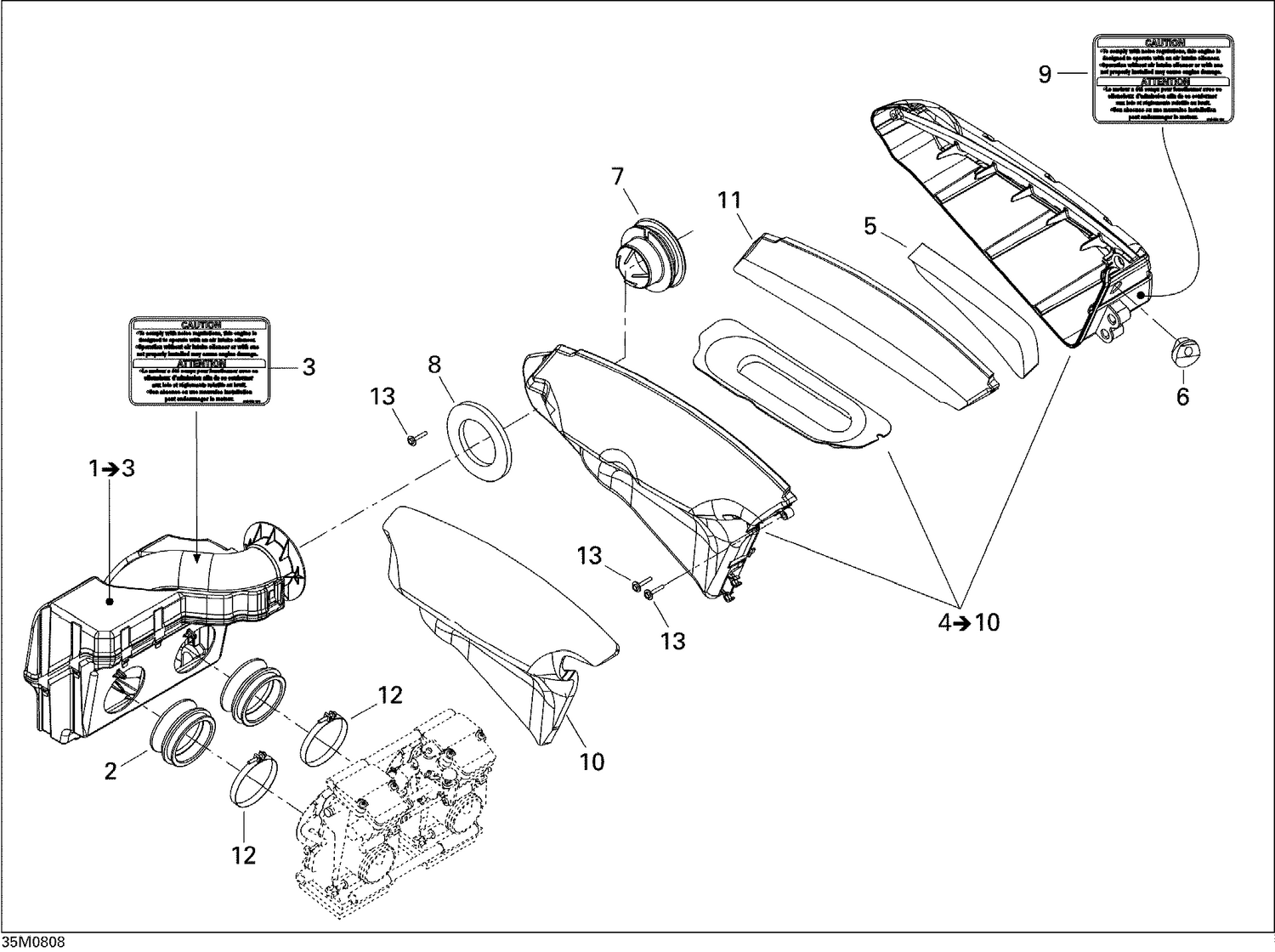

02- Air Intake System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000132 | Air Intake Adaptor |
| 3 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 5 | 508000145 | Inner Foam |
| 6 | 512059931 | GROMMET - Call your local BRP dealership |
| 7 | 508000240 | GUIDE - Call your local BRP dealership |
| 8 | 508000199 | OUTER FOAM - Call your local BRP dealership |
| 9 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 10 | 508000310 | OUTER FOAM - Call your local BRP dealership |
| 11 | 508000394 | Air Filter |
| 12 | 508000346 | Gemi Clamp |
