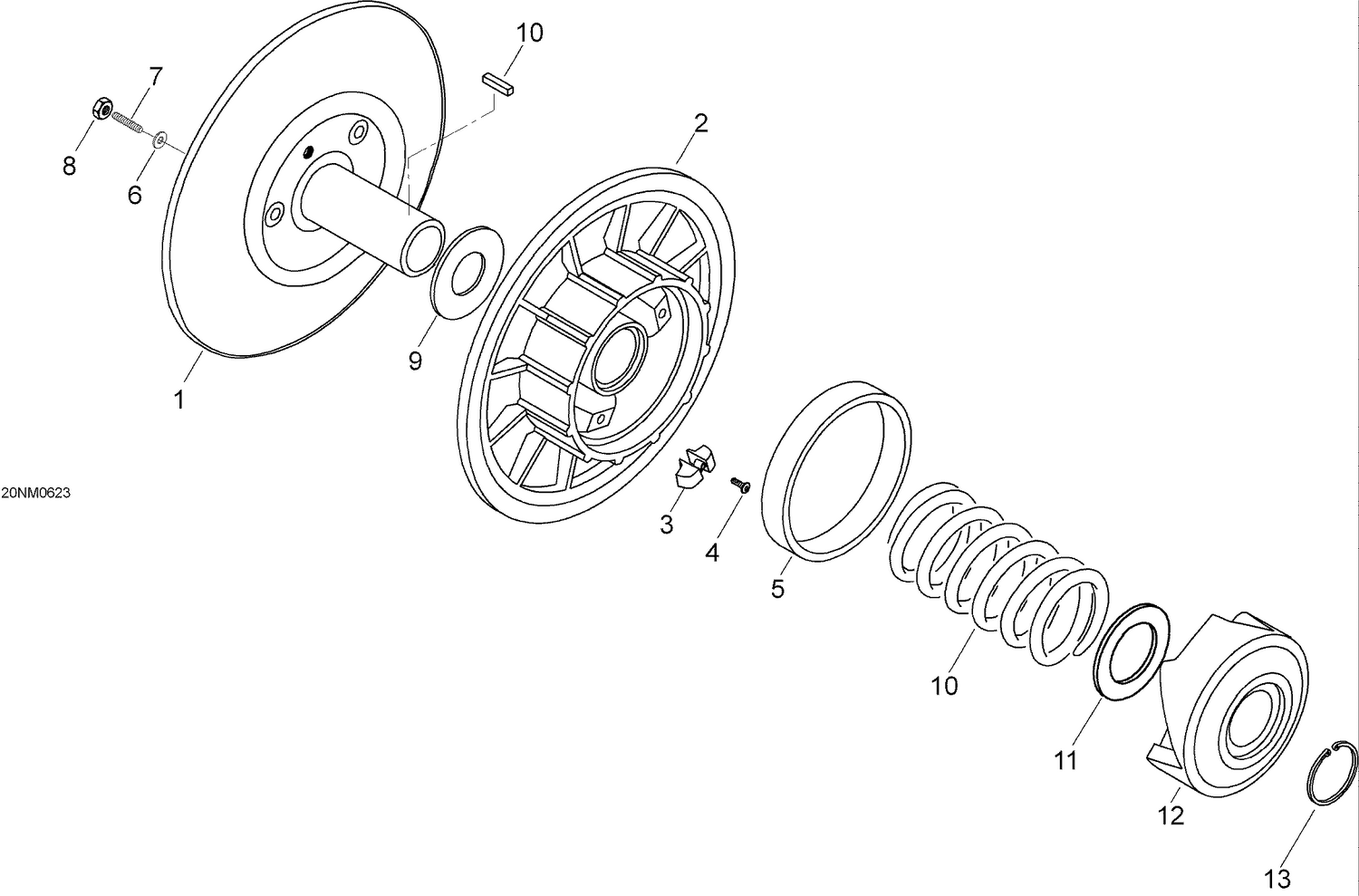

05- Driven pulley
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140065 | Fixed half pulley |
| 3 | 140068 | Cam shoe |
| 4 | 619100006 | HEX. SCREW SET - Call your local BRP dealership |
| 5 | 140053 | Cam bushing |
| 6 | 420245370 | WASHER - Call your local BRP dealership |
| 7 | 619100003 | Hex. socket set screw - Call your local BRP dealership |
| 8 | 232061414 | Nut |
| 9 | 504099600 | STOPPER WASHER - Call your local BRP dealership |
| 10 | 417119100 | RELEASE SPRING - Call your local BRP dealership |
| 11 | 619100007 | STOP WASHER - Call your local BRP dealership |
| 12 | 140070 | Fix cam 40 |
