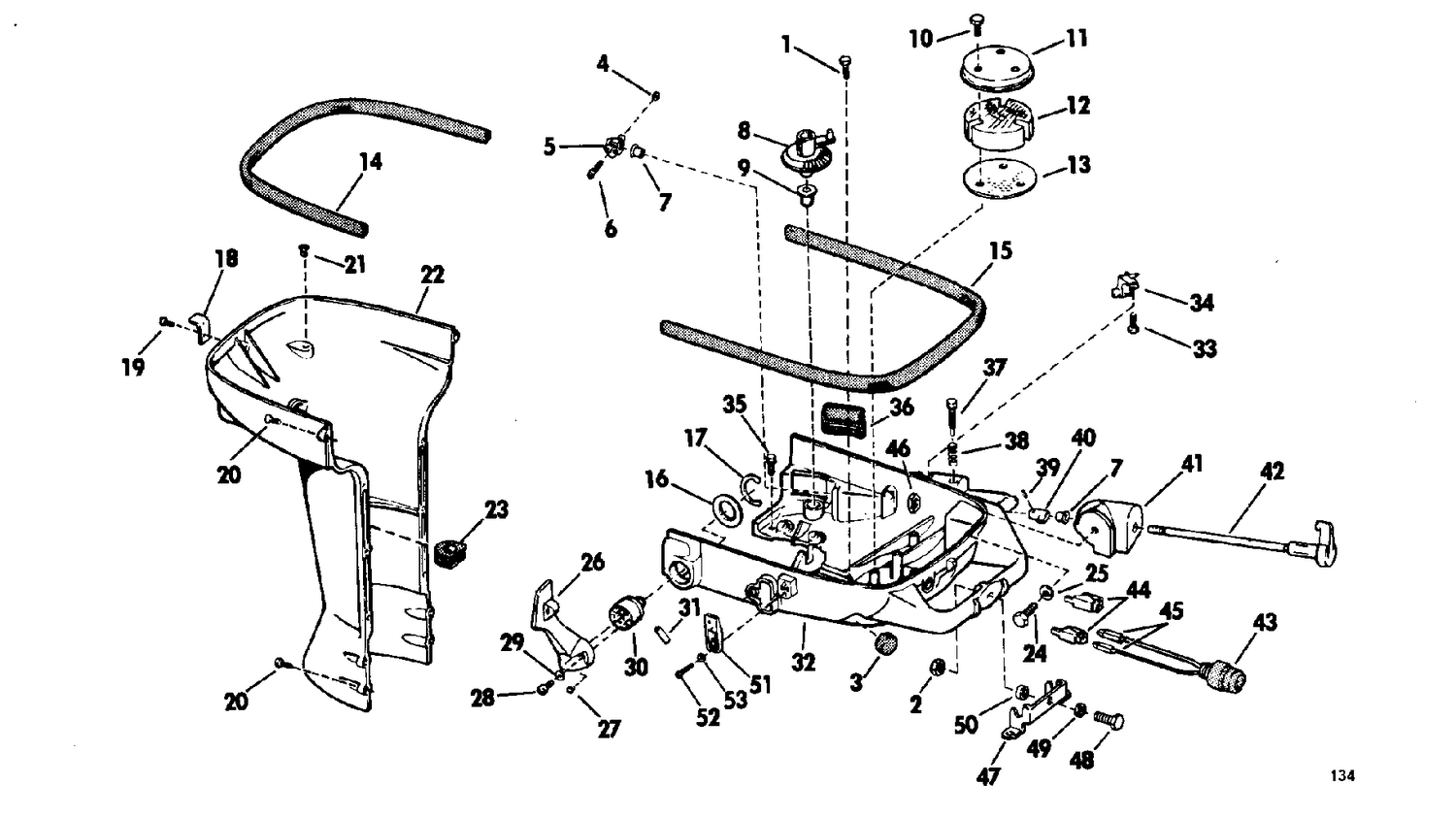

| Ref | Part Number | Description |
|---|
| 1 |
0300646 |
VIS, ancrage |
| 3 |
0307769 |
PLUG |
| 4 |
0306542 |
NUT |
| 5 |
0305617 |
PINION, Throttle control |
| 6 |
0133451 |
SCREW, Leaf plate manifold, short |
| 7 |
0305347 |
BUSHING, Throttle shaft |
| 8 |
0305387 |
GEAR, Throttle control |
| 9 |
0305378 |
BUSHING, Control gear |
| 10 |
0552062 |
SCREW, Clamp |
| 11 |
0305376 |
COVER, Silencer |
| 12 |
0305375 |
PAD, Silencer |
| 13 |
0305377 |
PLATE, Silencer |
| 14 |
0313173 |
SEAL, Motor cover This part replaces 0313178. |
| 15 |
0313173 |
SEAL, Motor cover This part replaces 0313177. |
| 16 |
0305575 |
THRUST WASHER, Universal |
| 17 |
0305582 |
RETAINER, Connector |
| 18 |
0307290 |
HOOK, Cover to housing |
| 20 |
0305745 |
SCR., Lwr. mtr. cover frt. and rear |
| 21 |
0306656 |
PLUG, Cover rear |
| 22 |
0380891 |
EXHAUST COVER & GROMMET ASSY., Rear |
| 23 |
0309205 |
GROMMET EXHAUST COVER |
| 24 |
0130538 |
SCREW, Bracket to end |
| 25 |
0303807 |
LOCKWASHER |
| 26 |
0278282 |
SHIFT LEVER & ASSY |
| 28 |
0306446 |
SCREW, Coupling to adapter |
| 30 |
0308675 |
CONNECTOR, Shift |
| 31 |
0306277 |
DRIVE PIN, Connector |
| 32 |
0380291 |
LOWER MOTOR COVER ASSEMBLY, Front |
| 33 |
0308552 |
SCREW, Fuel connector |
| 34 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 35 |
0328731 |
VIS, câble de verrouillage This part replaces 0307055. |
| 36 |
0305673 |
GROMMET, Control arm |
| 37 |
0304573 |
SCR., Idle adj. |
| 38 |
0309247 |
RESSORT |
| 40 |
0305379 |
STOP, Idle |
| 41 |
0305612 |
COVER, Throttle control |
| 42 |
0377211 |
KNOB & SHAFT , Throttle |
| 43 |
0379638 |
SHORTENING SWITCH ASSY |
| 48 |
0306427 |
BOLT |
| 50 |
0310967 |
SPACER |
| 51 |
0306212 |
LOCK, Shift |
| 52 |
0302416 |
SCREW , Shift lock |
| 0377637 |
0377637 |
REMOTE CONROL ADAPTOR KIT |
| 0377949 |
0377949 |
ACCESSORY, Steering handle |
| 0378931 |
0378931 |
ACCESSORTY, Carrying handle kit |
