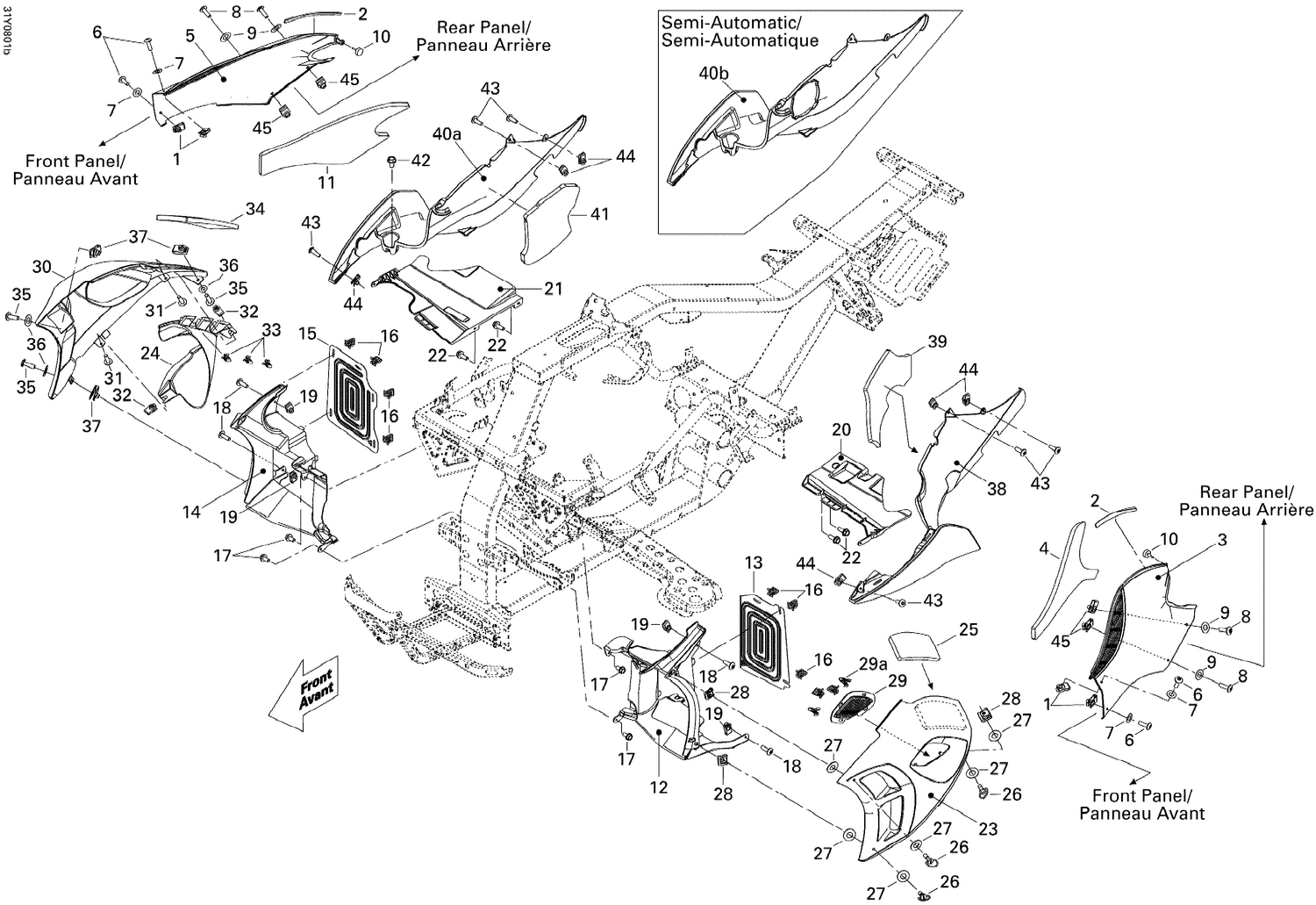

| Ref | Part Number | Description |
|---|
| 1 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 2 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 3 |
705002601 |
LH UPPER SIDE PANEL, BLACK - Call your local BRP dealership |
| 4 |
518327600 |
LH UPPER PANEL FOAM - Call your local BRP dealership This part replaces 518325517. |
| 5 |
705002602 |
RH UPPER SIDE PANEL, BLACK - Call your local BRP dealership |
| 6 |
250000350 |
Torx Truss Screw M6 X 20 |
| 7 |
705003207 |
Plastic Washer |
| 8 |
250000350 |
Torx Truss Screw M6 X 20 |
| 9 |
705003207 |
Plastic Washer |
| 10 |
708000759 |
Rubber Stopper This part replaces 708000125. |
| 11 |
518325518 |
RH Upper Side Panel Foam |
| 12 |
705005010 |
LH FLASHING CAP - Call your local BRP dealership This part replaces 705001485. |
| 13 |
705002516 |
LH RADIATOR GRILL - Call your local BRP dealership |
| 14 |
705001486 |
RH RADIATOR HUB CAP - Call your local BRP dealership |
| 15 |
705002518 |
RH RADIATOR GRILL - Call your local BRP dealership |
| 16 |
517302785 |
Edge Clip |
| 17 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 18 |
250000350 |
Torx Truss Screw M6 X 20 |
| 19 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 20 |
705002331 |
LH DEFLECTOR PANEL - Call your local BRP dealership |
| 21 |
705002332 |
RH DEFLECTOR PANEL - Call your local BRP dealership |
| 22 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 24 |
705002831 |
HEAT DEFLECTOR - Call your local BRP dealership |
| 25 |
518324749 |
LH SIDE PANEL FOAM - Call your local BRP dealership |
| 26 |
705002649 |
Quarter Turn Screw |
| 27 |
705002650 |
Washer |
| 28 |
705002651 |
Quarter Turn Nut |
| 29 |
705002369 |
LH LATERAL GRILL - Call your local BRP dealership |
| 29a |
517302785 |
Edge Clip |
| 31 |
250000350 |
Torx Truss Screw M6 X 20 |
| 32 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 33 |
517302785 |
Edge Clip |
| 34 |
518324750 |
RH SIDE PANEL FOAM - Call your local BRP dealership |
| 35 |
250000303 |
Torx Truss Screw M6 X 20 |
| 36 |
705003207 |
Plastic Washer |
| 37 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 38 |
705006265 |
LH ROCKER PANEL - Call your local BRP dealership This part replaces 705001612. |
| 39 |
518324753 |
LH ROCKER PANEL FOAM - Call your local BRP dealership |
| 40a |
Not |
Available As Spare Part - NOT AVAILABLE FOR THIS VEHICLE |
| 41 |
518324754 |
RH ROCKER PANEL FOAM - Call your local BRP dealership |
| 42 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 43 |
250000350 |
Torx Truss Screw M6 X 20 |
| 44 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
