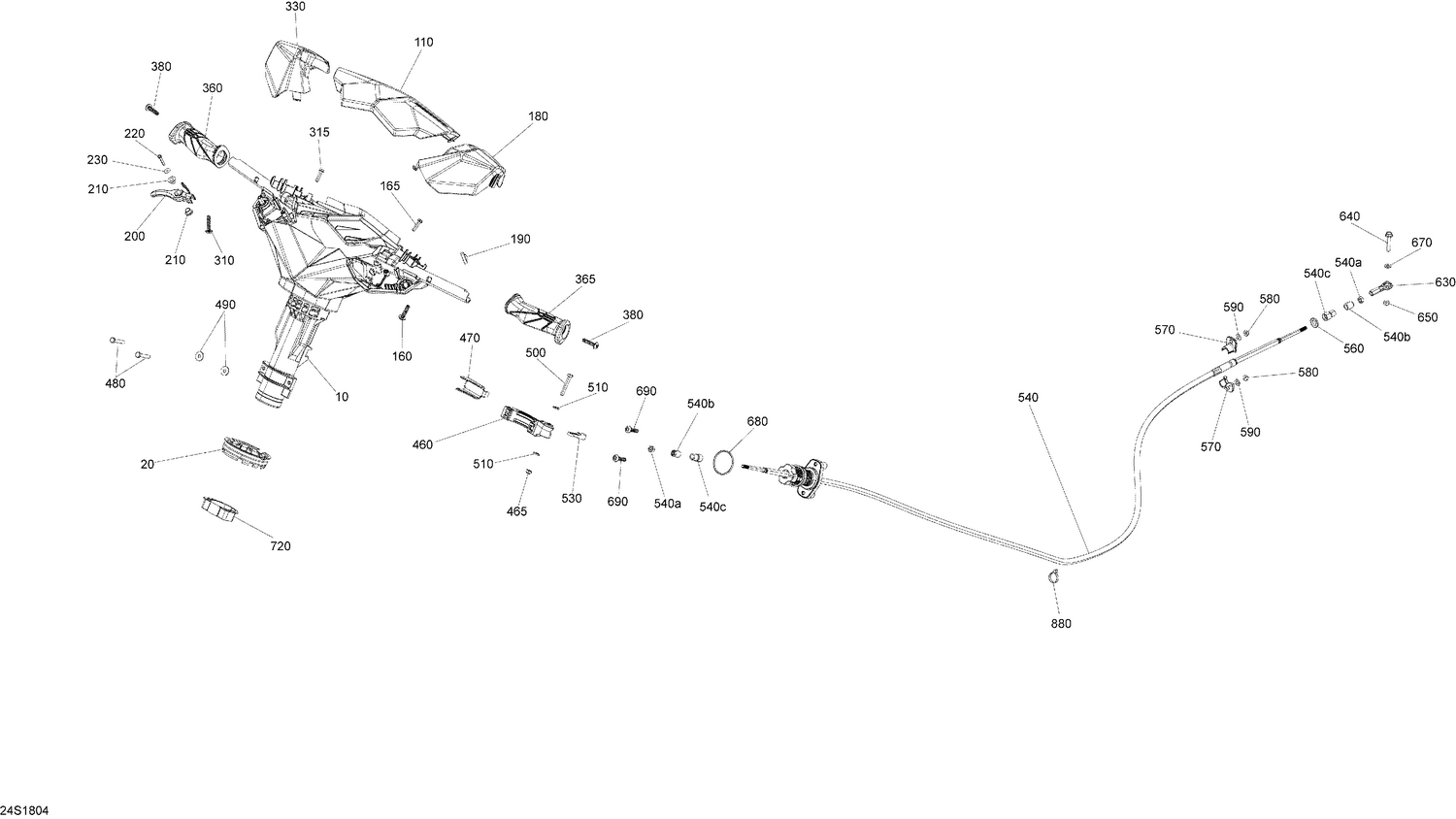

07- Steering Spark - 900 ACE
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 277001952 | Steering |
| 20 | 277001874 | Wear Ring |
| 110 | 277001786 | Bright White, Steering Pad |
| 160 | 250001007 | Screw Torx M6.81 X 30 This part replaces 250000709. |
| 165 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 180 | 277001787 | Deep Black, LH Cover |
| 190 | 277001887 | Red, Knob Switch |
| 200 | 277001944 | Throttle Handle |
| 210 | 293900091 | Bushing |
| 220 | 241142560 | Hex. Flange Screw K40 X 25 |
| 230 | 234042600 | Flat Washer 4 mm, Stainless |
| 310 | 250001007 | Screw Torx M6.81 X 30 This part replaces 250000709. |
| 315 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 330 | 277001788 | Deep Black, RH Cover |
| 360 | 277001946 | Deep Black, RH Handle Grip |
| 365 | 277001958 | Deep Black, LH Handle Grip |
| 380 | 250001007 | Screw Torx M6.81 X 30 This part replaces 250000709. |
| 460 | 277002179 | Support Ass'y This part replaces 277002019. |
| 465 | 232561200 | Brass Elastic Stop Nut M6 |
| 470 | 277001654 | Spacer |
| 480 | 207163560 | Hex. Screw M6 X 35 |
| 490 | 234062600 | Flat Washer M6, Stainless |
| 500 | 207064060 | Hex. Screw M6 X 40 |
| 510 | 234061600 | Stainless Flat Washer M6 |
| 530 | 277001180 | Ball Joint |
| 540a | 211100056 | Hex. Nut 1/4"-28 |
| 540b | 277001582 | Wiper Rod |
| 540c | 277001583 | End Piece |
| 560 | 293830063 | Rubber Washer |
| 570 | 277001856 | Ring Halves |
| 580 | 232561200 | Brass Elastic Stop Nut M6 |
| 590 | 234061600 | Stainless Flat Washer M6 |
| 630 | 277000775 | Ball Joint |
| 640 | 207663560 | Hex. Screw M6 X 35 |
| 650 | 232561200 | Brass Elastic Stop Nut M6 |
| 670 | 234061600 | Stainless Flat Washer M6 |
| 680 | 293300176 | O-Ring |
| 690 | 250001007 | Screw Torx M6.81 X 30 This part replaces 250000709. |
| 720 | 277002318 | Wear Ring This part replaces 277001741. |
