Home / BRP / STERN DRIVE / 1993 / 5.80 / 58FAPEJVB 1993 / UPPER INTAKE MANIFOLD - 58FAPPJVB & 58FAPEJVB MODELS

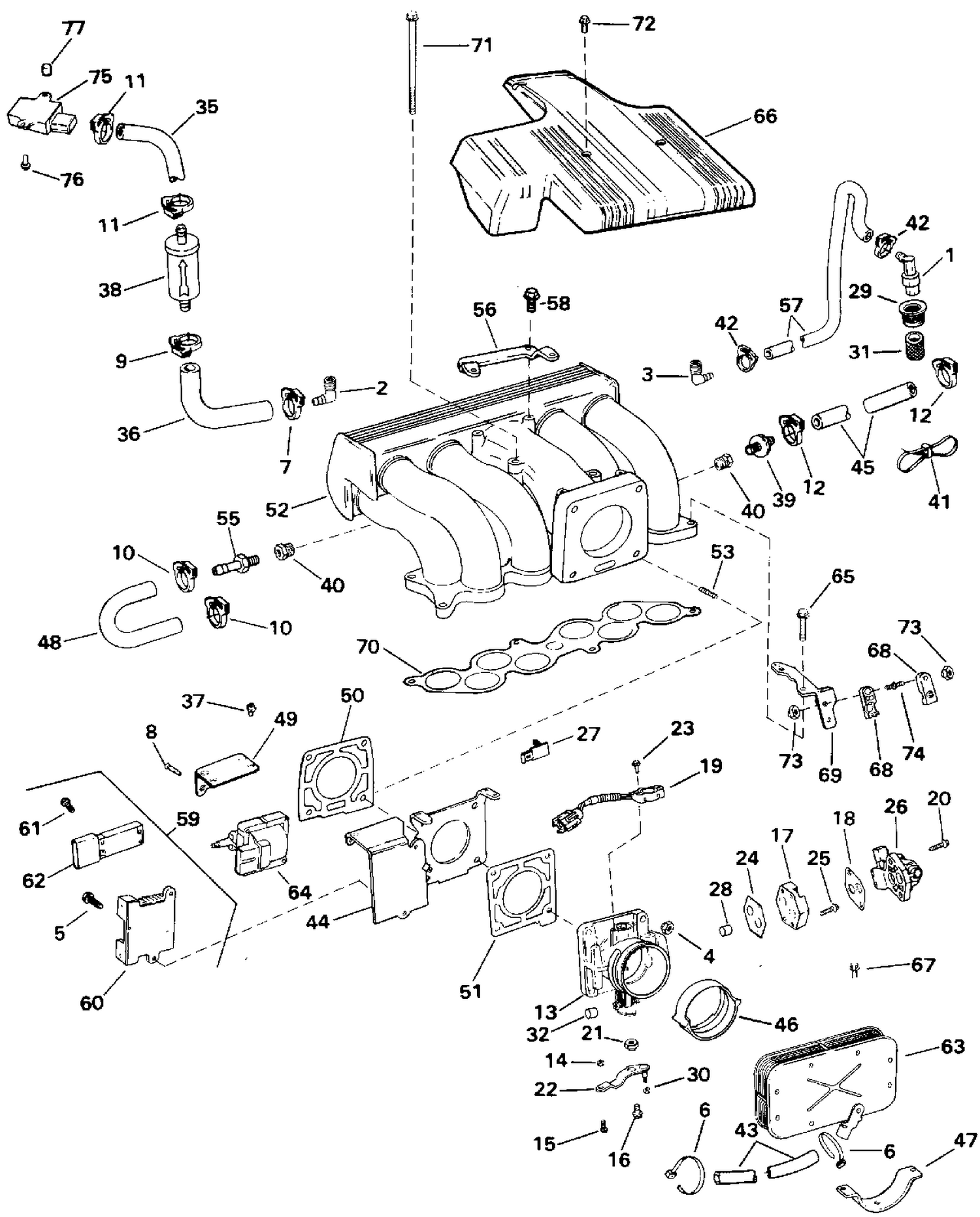

UPPER INTAKE MANIFOLD - 58FAPPJVB & 58FAPEJVB MODELS

UPPER INTAKE MANIFOLD - 58FAPPJVB & 58FAPEJVB MODELS

Parts (59)

RefPart NumberDescription
1 3852820 PCV VALVE This part replaces 0913760.
2 0174177 ELBOW KIT This part replaces 0909985.
3 0174177 ELBOW KIT This part replaces 0909985.
4 0316355 BUT, Carburetor mounting This part replaces 0315204.
6 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
8 0321219 VIS, vis de fixation
10 0322653 CLAMP
13 3850768 THROTTLE BODY ASSY. This part replaces 0988179.
16 0335200 VIS, capteur position de vilebrequin vers support
17 3853612 ADAPTER, Air bypass solenoid This part replaces 0915967.
18 3853613 GASKET, Adapter to solenoid This part replaces 0915968.
19 3850988 THROTTLE POSITION SENSOR This part replaces 0987988.
20 3853614 SCREW, Air by-pass solenoid This part replaces 0915969.
21 3853627 NUT, Throttle lever This part replaces 0915995.
22 0987619 LEVER & PIN, Throttle body
23 3850986 SCREW, Throttle sensor This part replaces 0916439.
24 3853613 GASKET, Adapter to solenoid This part replaces 0915968.
25 3853614 SCREW, Air by-pass solenoid This part replaces 0915969.
26 3850987 VALVE, Throttle air by-pass This part replaces 0987987.
27 3853734 CLIP, Connector This part replaces 0916245.
28 3853748 FILTER, Noise suppressor This part replaces 0916275.
29 3853767 GROMMET, PCV valve This part replaces 0916432.
30 3853729 NUT, Lever to bracket This part replaces 0916216.
31 3853768 ELEMENT, Crankcase vent This part replaces 0916433.
32 3853772 CAP, Idle screw This part replaces 0916449.
35 0916312 HOSE, MAP sensor to filter
36 0916311 HOSE, Filter to intake manifold
37 0335200 VIS, capteur position de vilebrequin vers support
38 0398327 FILTER, MAP sensor
40 3852465 BUSHING This part replaces 0908986.
43 3853723 HOSE, Valve cover to arrestor This part replaces 0916179.
44 3853763 BRACKET, TFI module & E-coil This part replaces 0915894.
45 3853582 HOSE, Reservoir to pulse limiter This part replaces 0915896.
46 3853594 GROMMET, Flame arrestor This part replaces 0915937.
47 3853595 CLAMP, Flame arrestor This part replaces 0915943.
48 3853619 HOSE, Pressure regulator This part replaces 0915981.
49 3853625 BRACKET, E-coil to TFI bracket This part replaces 0915993.
50 3853629 GASKET, Bracket to manifold This part replaces 0915998.
51 3853630 GASKET, Bracket to throttle body This part replaces 0916001.
52 0987882 MANIFOLD ASSY., Upper intake
55 3853639 FITTING, Hose to reducer This part replaces 0916013.
56 0916223 BRACKET, Cover
57 HOSE, PCV valve
59 3854139 MODULE ASSY., TFI This part replaces 0987632.
60 3854272 HEAT SINK This part replaces 0916243.
61 3854273 SCREW This part replaces 0916244.
62 3854274 MODULE, TFI This part replaces 0987984.
63 3854144 FLAME ARRESTOR This part replaces 0987640.
64 3854161 E-COIL This part replaces 0987680.
65 3853638 SCREW, Intake manifold This part replaces 0916012.
66 3853571 COVER This part replaces 0987751.
67 3853722 SCREW, Flame arrestor clamp This part replaces 0916178.
68 3852836 ANCHOR BLOCK This part replaces 0913795.
69 0916236 BRACKET, Throttle
70 3853636 GASKET, Upper to lower intake This part replaces 0916010.
71 3853635 SCREW, Instake manifold, stbd. This part replaces 0916009.
72 3853662 SCREW, Flame arrestor cover This part replaces 0916071.
74 3850682 STUD, Anchor block This part replaces 0914682.
75 3854160 SENSOR, Manifold air pressure This part replaces 0987679.
