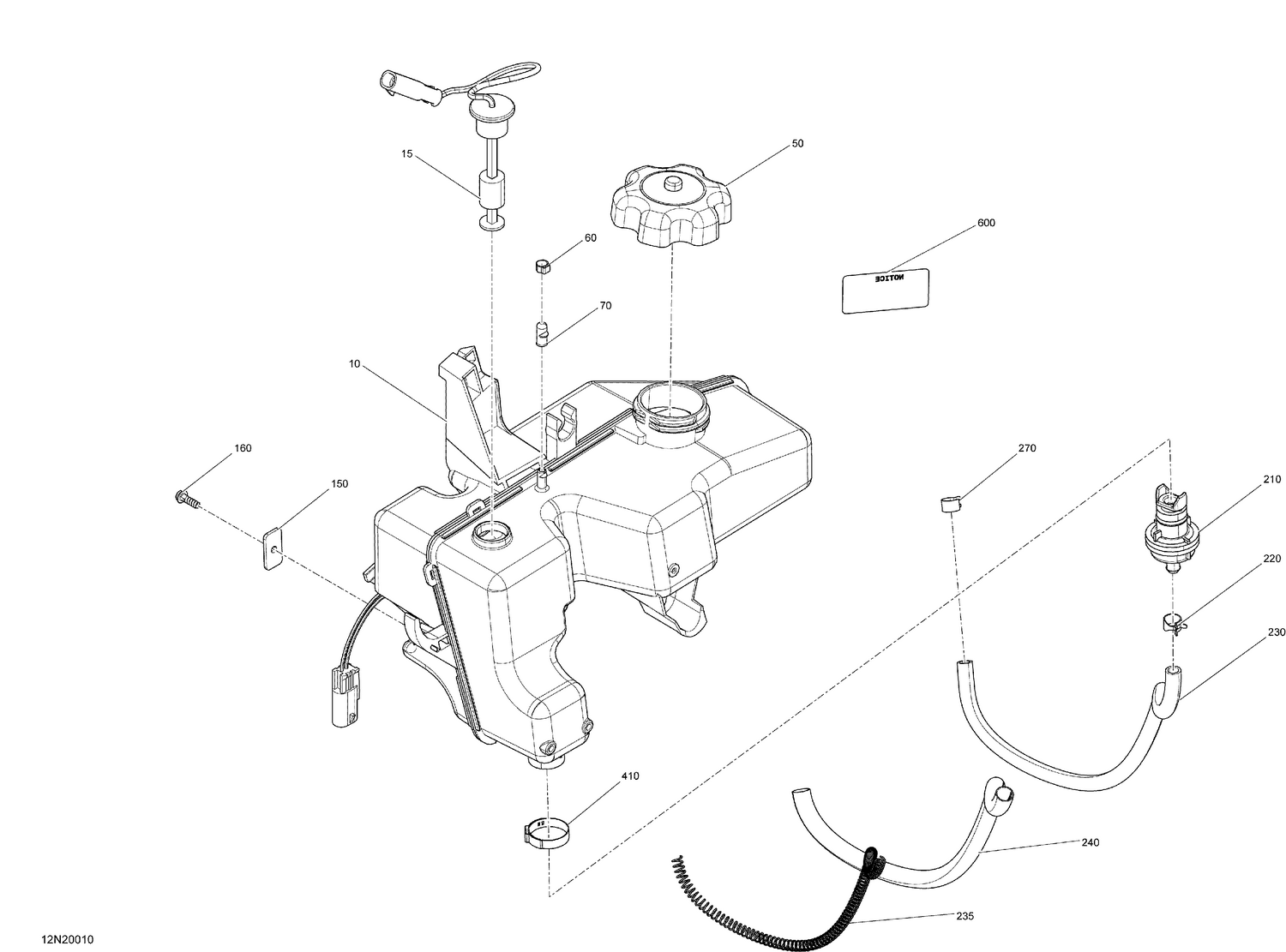

02- Engine - Oil
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 519000341 | Oil Tank |
| 15 | 515176978 | Level Sensor |
| 50 | 519000273 | Cap |
| 60 | 293650043 | Oetiker Gear Clamp |
| 70 | 519000216 | Cap |
| 150 | 519000179 | Bracket |
| 160 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 210 | 519000242 | Oil Filter |
| 220 | 414415200 | Spring Clamp |
| 230 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 235 | 519000196 | Spring |
| 240 | 219704407 | Tubing 10 MM 1000MM Long |
| 270 | 414420700 | Spring Clamp |
| 410 | 293650099 | Crimp Clamp |
