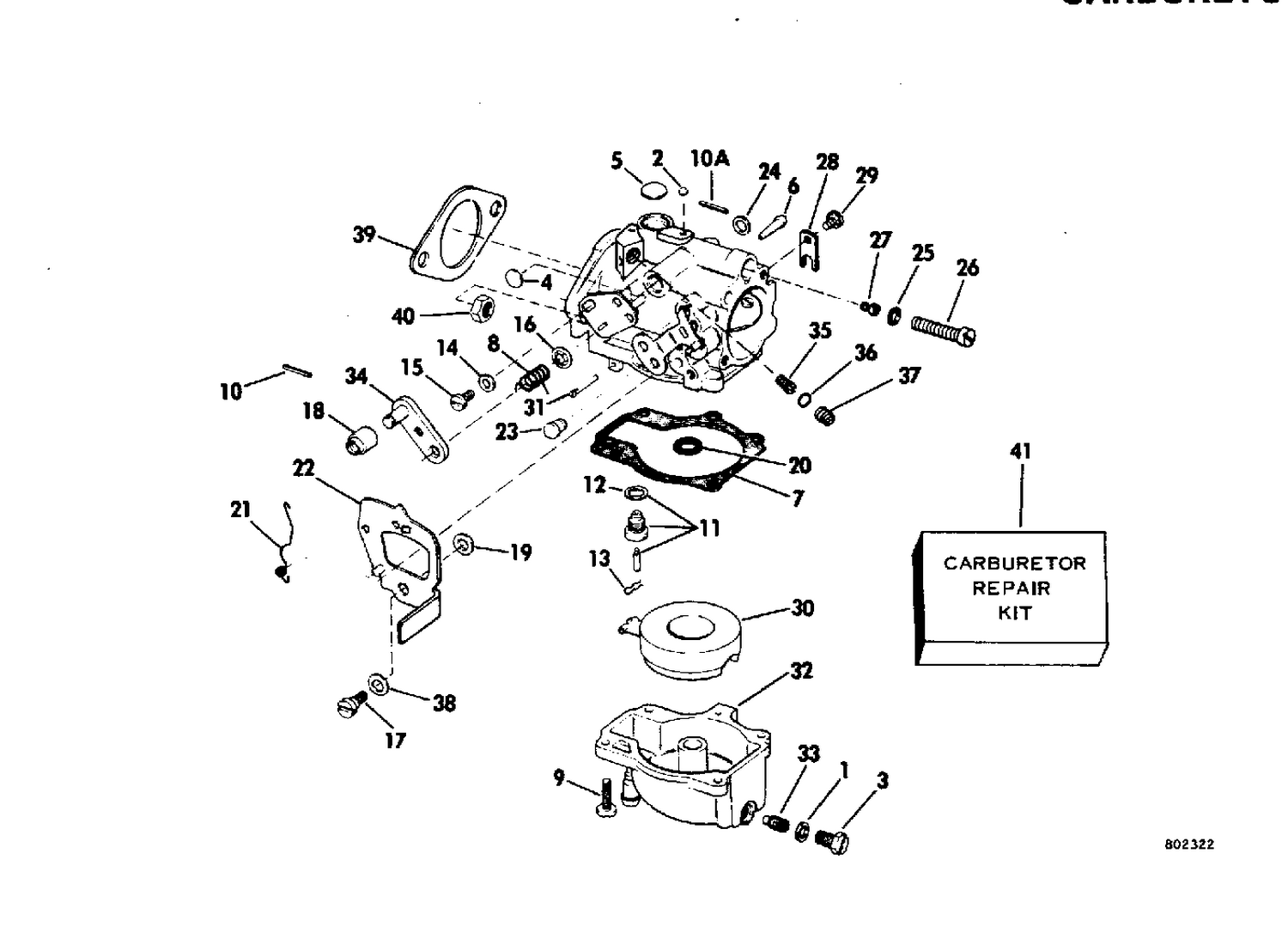

| Ref | Part Number | Description |
|---|
| 3 |
0307832 |
PLUG, Screw |
| 10 |
0307901 |
ROLL PIN |
| 13 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 21 |
0326151 |
SPRING, Override |
| 22 |
0387908 |
LEVER AND PIN ASSY |
| 27 |
0325829 |
HIGH SPEED ORIFICE, No. 42 |
| 27 |
0327689 |
ORIFICE, No 67 |
| 28 |
0314906 |
CLIP |
| 35 |
0327739 |
ORFICE, No 59 |
| 35 |
0327740 |
ORIFICE, No 68 |
| 37 |
0317501 |
SCREW PLUG, Orifice |
| 39 |
0325092 |
GASKET |
| 40 |
0316355 |
BUT, Carburetor mounting |
| 0392574 |
0392574 |
CARBURETOR ASSEMBLY, Upper & lower |
| 0392575 |
0392575 |
CARBURETOR ASSEMBLY, Middle |
| 0392576 |
0392576 |
CARBURETOR ASSEMBLY, Upper & lower |
| 0392577 |
0392577 |
CARBURETOR ASSEMBLY, Middle |
