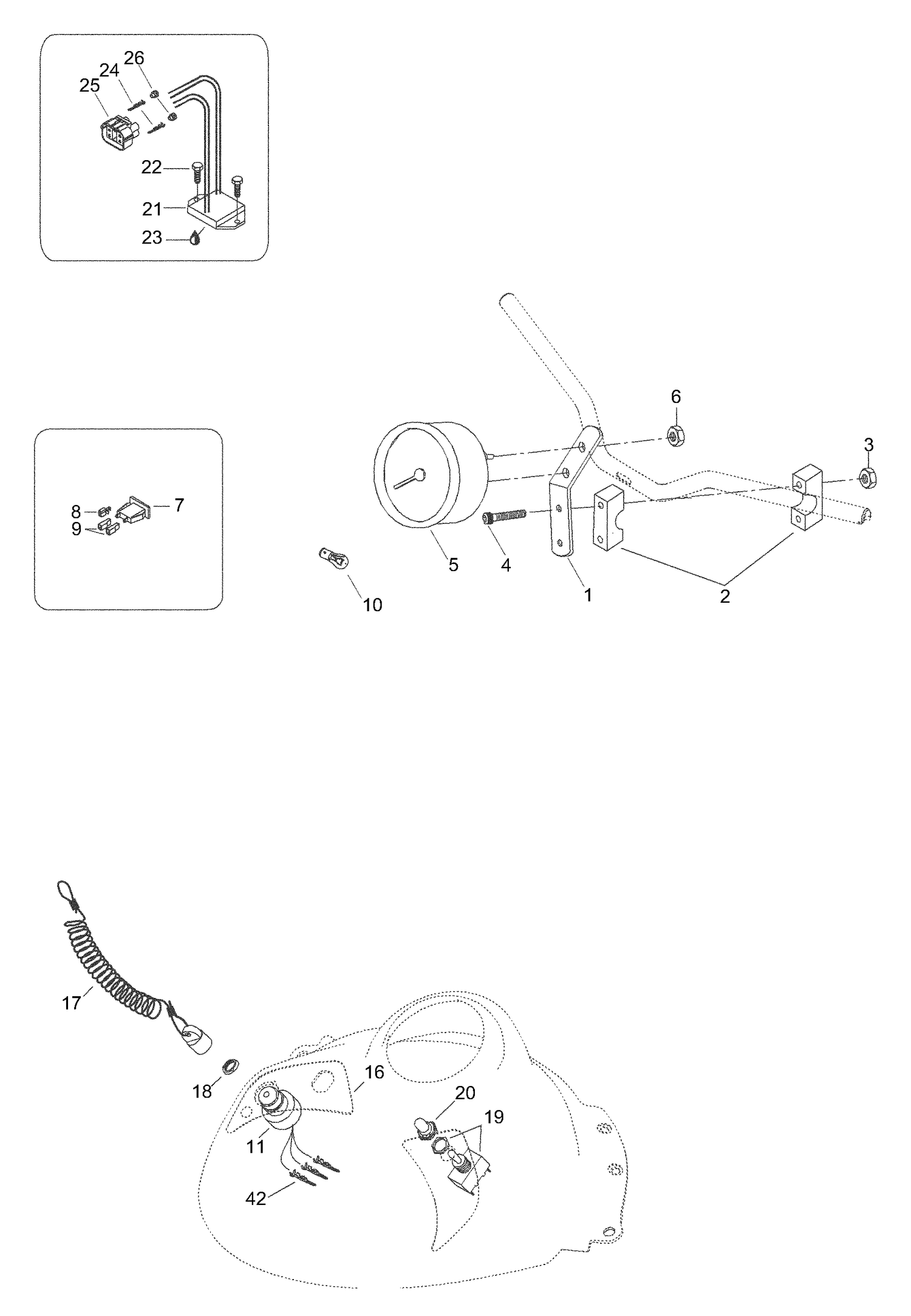

| Ref | Part Number | Description |
|---|
| 1 |
5444267 |
Support |
| 2 |
548448 |
Support of Bar - Call your local BRP dealership |
| 3 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 4 |
40286 |
Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership |
| 5 |
515175340 |
Tachometer white |
| 6 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 7 |
410109700 |
Pilot lamp, red |
| 8 |
409010100 |
Female terminal |
| 9 |
409010400 |
Connector housing |
| 10 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 11 |
515175145 |
DESS SWITCH - Call your local BRP dealership |
| 16 |
Not |
Available As Spare Part - Needle bearing - DOES NOT APPLY TO THIS MODEL |
| 17 |
515178284 |
Dess. This part replaces 515166900. |
| 18 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 19 |
410107300 |
Switch |
| 20 |
515175281 |
Rubber cover for switch |
| 21 |
515175491 |
Regulator Assy |
| 22 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 23 |
413707500 |
Litium-grease |
| 24 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 25 |
42604 |
Connector Housing |
| 26 |
42605 |
Seal |
